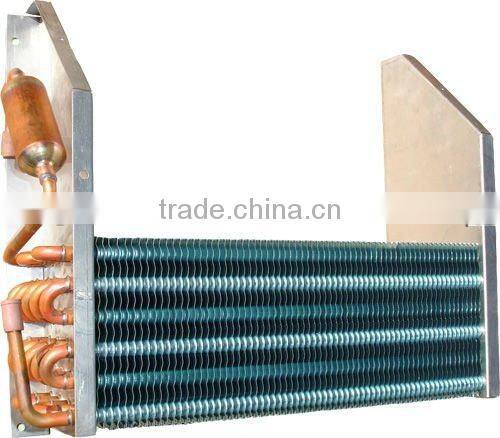

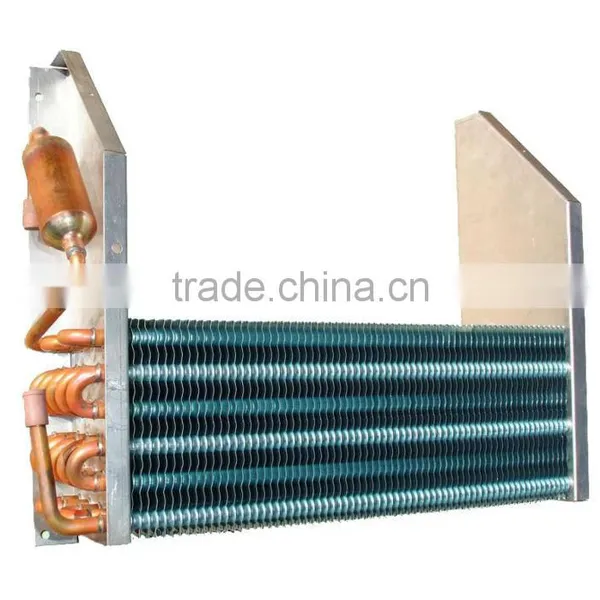

Function Air Conditioner Evaporator

Specifications

Air Conditioner Evaporator

1.Specification: 5.0Rows ×6.0Fins

2.Dimension: L235 ×W185 ×H230mm

3.Fin: hydrophilic aluminum fin for defrosting

4.Shell: 1.0mm thickness aluminum panel.

5.Suitable for R134A, R22, R404A, R407C refrigerant.

Detailed Description:

1.Material: copper, aluminum, galvanized plate.

2.Aluminum foil: hydrophilic or bare.

3.Fin type: louver or flat fin or corrugated.

4.Copper pipe: diameter 7mm, 8mm or 9.52mm, etc., grooved or smooth tube.

5.Side plate: galvanized plate or aluminum.

6.Size: from 1/4HP to 20HP.

7.Available temperature is above minus 40 centigrade degree.

8.Product length: up to 4 meters.

9.Pitch of holes and pitch of rows: 25×21.65mm and 12.7×19.05mm.

10.Did gas examination under 3.0Mpa air pressure to ensure the tightness.

11.Widely used in refrigeration industry, cold room and other system.
