Alibaba China made Small volume fuel oil strainer for mining
Other products
Features:

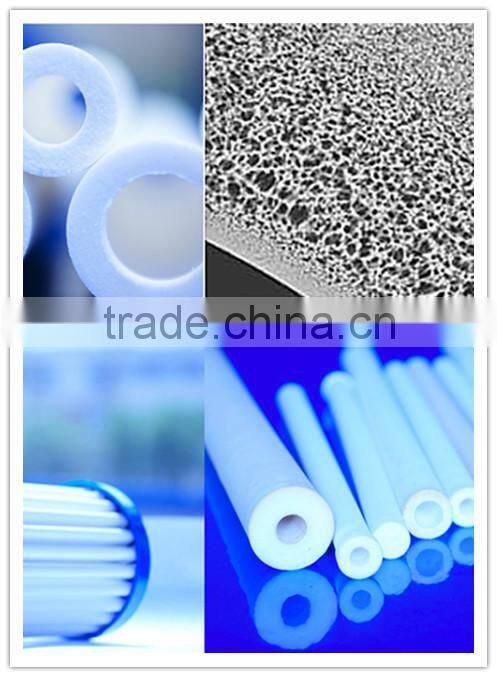

New polymer membrane filtration technology
•Selectivity characteristics of polymer membrane is core technology.
•Oil-water separating is easy.
•High precision and deep filtration
•Improve the efficiency of the engine
•Prolong engine service life
•The cost of filtration is low
• Small volume
Superiority:
Our machine used the newest membrane filter technology. the membrane element can wash and use again and again. so it can save much cost. membrane element has The characteristics of the oil drain. water and impurity can Successful intercept. and the clean oil pass . our precision can reach 2 micron. a hair is 80 micron, so you can think our precision , it is very high.
Technical Parameters:

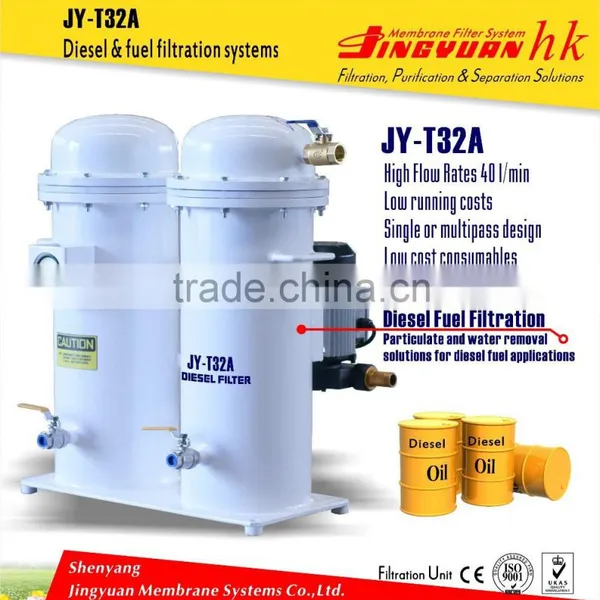

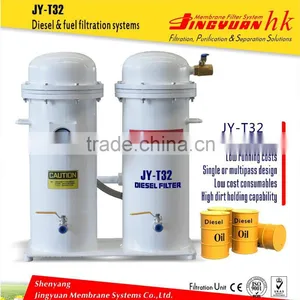

1.Model Type: JY-T32
2.Flow Rate: 40 L/min
3.Filtration System: (1)Polymer Membrane Filter Elements (Can be used repeatedly after washing)
J22-400L------------------------------------------------------------10μm
J22-400H------------------------------------------------------------5μm
(2)Filter Element Quantity: 68 Pieces
(3)Function: Remove impurity particles, colloid and water
(4)Working Pressure: 0.2~0.35 Mpa
(5)Filtration Level: 2
(6)Service life: 2~3 Years or longer
4.Filtration Precision: (1)Range: 2,5,10,15,25 μm (2)Standard: 5~10 μm
5.Mouth: Standard: DN20 or According to Requirements
6.Security: With Pressure Safety Valve
7.Temperature: Working Temperature: -10~70 ºC
8. Dimension: 660*350*650mm
9.Weight: 49KG
10.Anti-hazard Classification: Grade 2
Principle:
Selectivity pass characteristic is to say, the oil molecules will pass and water molecules or impurities will be intercepted, so that the oil and water can be separated.
Application:

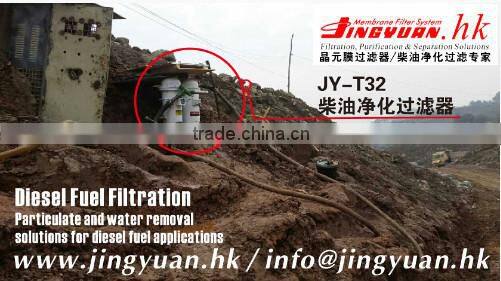

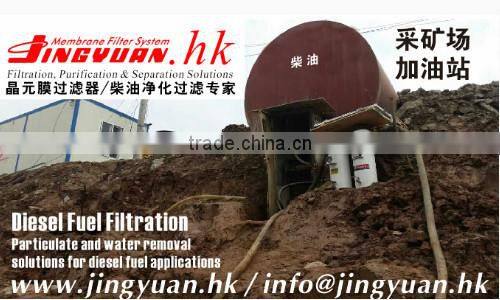

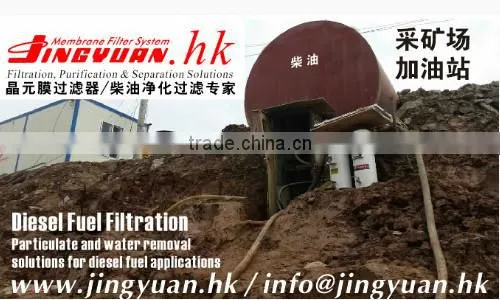

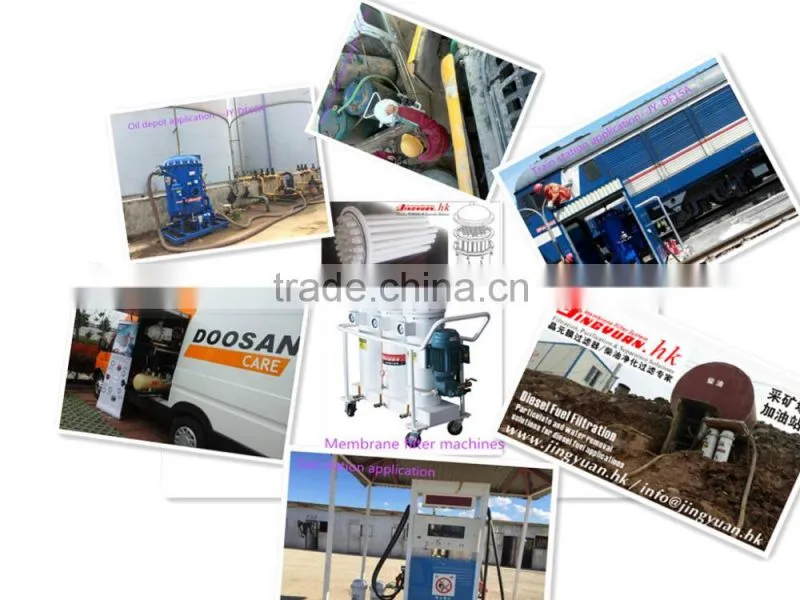

Specially designed for diesel purification, adopt Jing Yuan high performance polymer membrane filtration technology to remove impurity, colloid and water contained in diesel. Be suitable for engineering machinery, mining machinery, agricultural machinery, petroleum machinery, power generator unit, oil depot, little oil refinery, gas station, oil tank and so on. We may also customized filters according to customers' requirements.
Company information:
1>Durable Plywood Case packaging suitable for long distance ocean/train transportation.
2>Appointed shipping company could be used in shipment.
3>Whole process monitoring insures the safety of goods unitl arrival.
FAQ
1.Q: Where is your factory located?
A:Our factory is located in Tieling City, Liaoning Province, China.
2.Q: You are a factory, trading company or a third party?
A: We are a factory, and we start our factory & production from 2012.
3.Q: What is your minimum quantity, can you send me sample?
A: Our minimum ordered quantity is 1 set. I am very sorry that we can't offer you a sample. because our goods are machine.
4.Q:What are your generally modes of transportation ?
A:In general by air and sea.
Our services---Term of Warranty:
We have our own factories and our own international sales team, we could satisfy you with our high quality products ,fast delivery and most important ,competitive price. We adhere to the philosophy of "Quality is the life,the credibility of the first,customer first".
1. One year with spare parts and service.
2. Engineers available to service machinery for overseas.
Tel:0086 18742486458
Skype:ivyqian25
Viber/what's up:0086 18742486458
Welcome to visit us, Your inquiries are highly welcomed at any time, we are ready to make a response very soon
