Ground Source Geothermal Heat Pump

                                Geothermal Water Source Heat Pump

                                                     Keram® German

 Advantage

CSRS/SLG model is a combination of heating,cooling and hot water which includes the different functions all in one unit. This unit is particulary fit for those areas where the temperature is very high in summer. Cooling in this unit is actively produced by the compressor which could send large cooling capacity to your house. By using this unit, you will never need to install any more equipment on heating and cooling, it will makes your house all seasons like spring.

Retrieving energy from ground source, using high efficient scroll compressor and environmental-friendly refrigerant, these have made the unit COP reaches to 4.6 at 0°C incoming cooling medium temperautre and 35°C outgoing medium temperature, and reduce your heating and cooling cost up to 75%.

The output is available from 6-120kw, a wide appliance range both for residential and commercial. The maximum temperature of hot water can reach 65°C, hot enough for radiator heating system. The DHW in summer is free of charge when cooling water is being made.

Features

Digital displaying control panel

Cooling, heating and hot water

High temperature to 65°C

Time display (hour, date, year)

Displaying of working states

scroll compressor

Electrical additional heating up to 9kw

Alarm system

Soft start relay

Installation

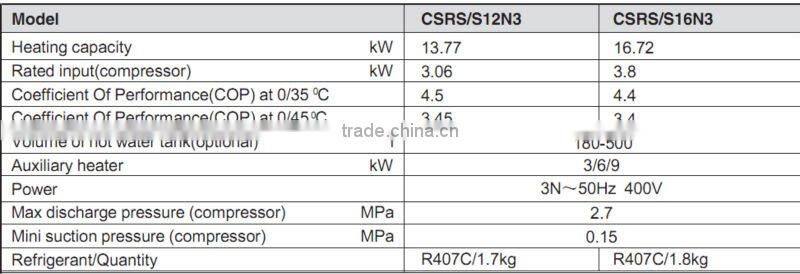

Some specification for your reference.

For more specification data,pls feel free to contact us
