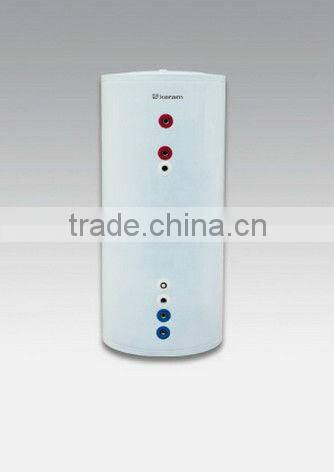

KHT series Hot Water Tank

Name: KHT series Hot Water Tank
Brand: Keram
Availability: InStock

FOB Price

US$ 500 - 1,500 / Unit

1 Unit(Min. Order)

Port Shanghai or Ningbo or Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Storage / Tankless	Storage	Installation	Freestanding
Certification	CE, Other, UL, CE, RoHS, UL	Housing Material	Stainless Steel
Capacity	200-500L	Place of Origin	China
Brand Name	Keram	Model Number	KHT

Product Description

Specifications

1.Size from 200l to 500l
2.One coils structure are available for heat pump and DHW
3.Electric heater is optional

KHT Series Hot Water Tank

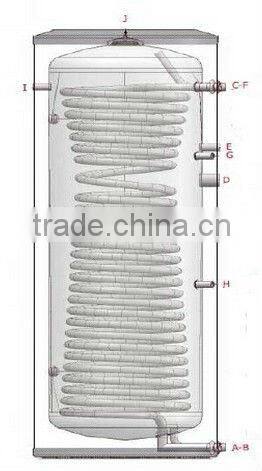

Keram KHT series hot water tanks are developed especially for the increasingly popular heat pump. The large heating surface of the heating coil and its sophisticated diabolo-shape enable a very efficient hot water production, which guarantees a quick reheat time and a high hot water performance. The high-quality insulation reduces heat loss, which minimizes the costs for a high hot water performance.

Product Feature

*High efficient stainless coil heat exchanger inside

*12kgs pressure durable

*50mm thick polyurethane foam insulation layer

*One coils structure are available for heat pump and DHW

*Anti-corrosion magnesium anode fixed

Technical specifications for KHT Series water tank

technical data		200	300	400	500
Volume	l	200	300	400	500
Weight	kg	45	61	75	86
Max. working pressure tank	bar	10	10	10	10
Max. working pressure coil	bar	40	40	40	40
Max. working temperature tank	°C	95	95	95	95
Insulation		EPS	EPS	EPS	EPS
	mm	50	50	50	50
Heat loss DIN 44532	Kwh/24h	1,94	2,28	2,73	3,09
Heating coil
Heating surface	m2	2,5	2,9	3,2	3,7
Continuous capacity at 60°C	kW	41/47	45/52	48/56	52/62
Hot water capacity at 60°C	l/h	1008/1163	1104/1284	1182/1386	1284/1530
Hot water flow	m3/h	2/3	2/3	2/3	2/3
Pressure loss	mbar	117/243	132/276	144/298	165/342
heating coil (additional calculation)
Heating surface	m2	2,5	2,9	3,2	3,7
Continuous capacity at 50°C tank temp. and 60°C boiler supply and ΔT=5°C	kW	11,2	13,1	14,6	17,0
Hot water capacity 10-45°C	l/h	275	322	359	418
Hot water flow	m3/h	1,96	2,28	2,55	2,97
Pressure loss	mbar	110	164	217	329
