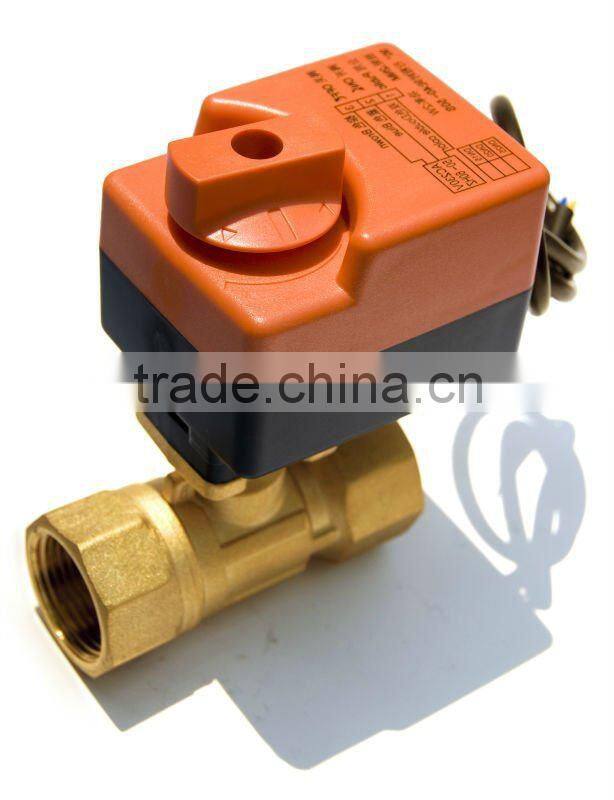

Split Motorized Control 2 way Valve

Name: Split Motorized Control 2 way Valve
Brand: OEM or Keram
Price: Negotiable

FOB Price

Negotiable / Piece

50 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shanghai or Ningbo or Shenzhen
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Standard or Nonstandard:	Standard	Structure:	Control	Pressure:	Low Pressure
Power:	Other, 220V	Material:	Brass	Temperature of Media:	High Temperature
Media:	Water	Port Size:	G1/2'' 3/4'' 1''	Place of Origin:	Jiangsu, China
Model Number:	DFF	Brand Name:	OEM or Keram

Product Description

Specifications

1.wide application
2.for flow of hot or chilled water,steam
3.good after-sell service
4.factory supply,good price

Split Motorized Control Valve

From Keram®

German quality

Description

Keram motorized control valves are designed to regulate the flow of hot or chilled water and low pressure steam in respond to demand of a controller in heating, ventilation, and air conditioning system.

Model Specification

Actuator Specification

Working Principle

DFF series electric valve is suitable for controlling fan coil pipe and hot or cold water in pipe.

When valve is working,temperature controller supplies signal by interflow current to open electric

valve.When room temperature reached the data designed by temerature controller to make no current in electrical valve,and closes valve gate with spring reset,which controls fan coil pipe and flow in pipe to get room temerature to adjust automatically during temperature range.

Installation

When install valve,it must be acted force onto valve body.It is prohibited to act

force on actor.When valve is installed in horizonal position,the valve can't be oblique.Max oblique degree is not over 85° between installation position and vertical surface.When move manual bar,it shoulds be smoonthly,when move manual bar to end position,valve is full opened.

More pictures for reference

If anything not clear for you,don't hesitate to contact us,we'd like to cooperate with professional customer like you!
