QYF Series ODF Connection Two Way Solenoid Valve
- Shanghai or Ningbo or Shenzhen
- T/T Money Gram
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Safety | |
| Pressure | Medium Pressure | Material | Brass | |
| Temperature of Media | Other, -40-150c | Media | Water | |
| Port Size | 1/4",3/8",1/2",5/8",3/4",7/8" | Place of Origin | Jiangsu, China | |
| Model Number | QYF | Brand Name | keram |
Product Description
Specifications
1.Suitable for the medium of refrigerant, air, water etc.2.Medium temp. 40 to 150c
3.OEM availble,CE Approvel
4.Factory sell

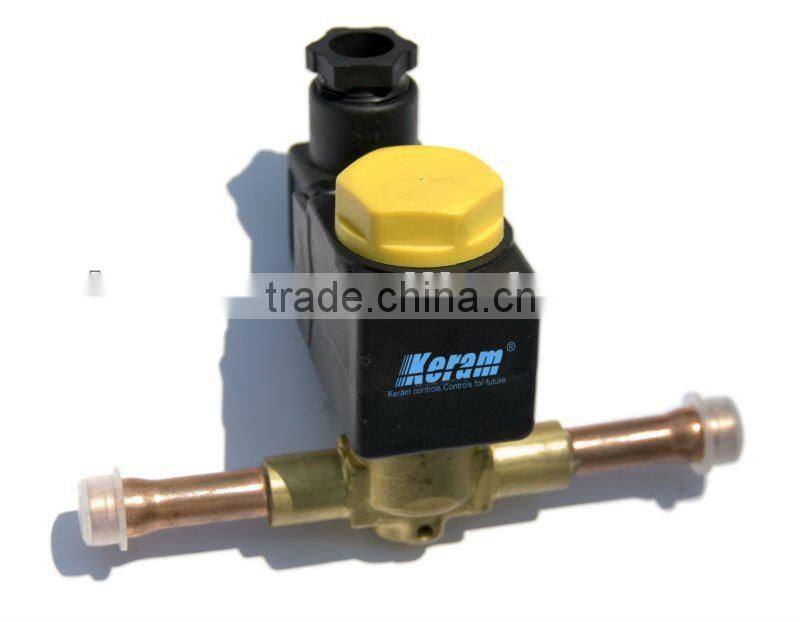

QYF Series Solenoid Valve
Decription
·QYF series solenoid valve is a king of normal closed, two way pilot valve. It is applied in liquid refrigerant or exhausting air and water.
·Nut system with O ring ensures watertight performance.
·Fully enclosed moisture proof coils suitable for various working conditions.
·Flare and ODF solder connections
·Suitable for the medium of refrigerant, air, water etc.
·Medium temp. 40 to 150°C
·Max working pressure 35Bar
Model specification

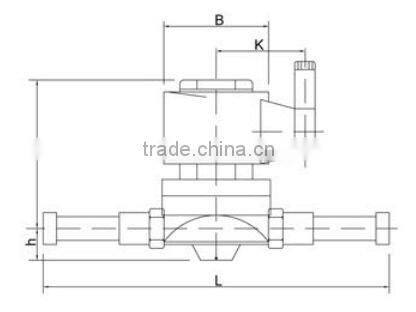

Apperance Dimension
We are professional in researching and producing contols equipments,pls contact us to gain more information...
Contact Us
- Keram (Nanjing) Science & Tech Co., Ltd.
- Contact nameFrank Hou Chat Now
- Phone86-25-83201426
- AddressRoom 1302, Bldg. 1, Hongyue City, No. 222, Changhong Road, Yuhuatai District, Nanjing, Jiangsu, China
