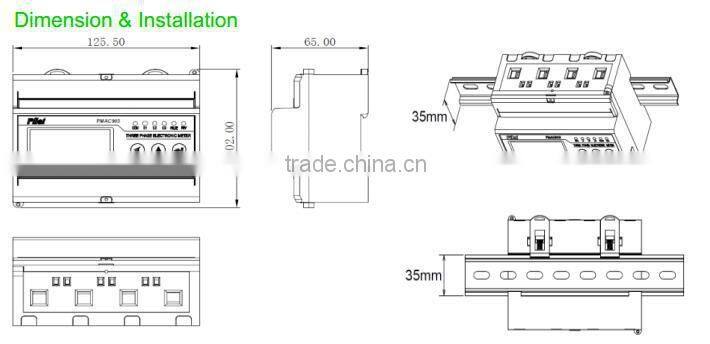

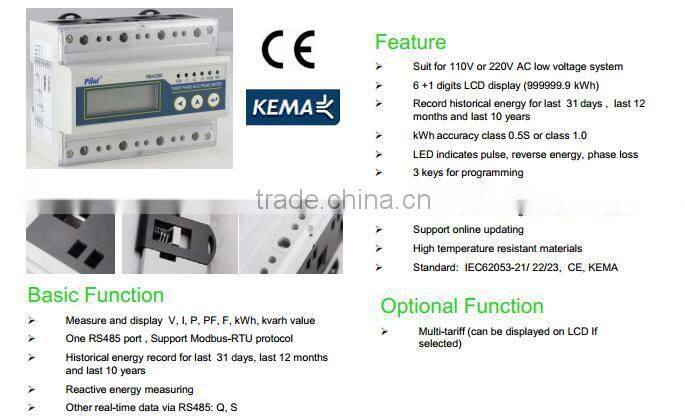

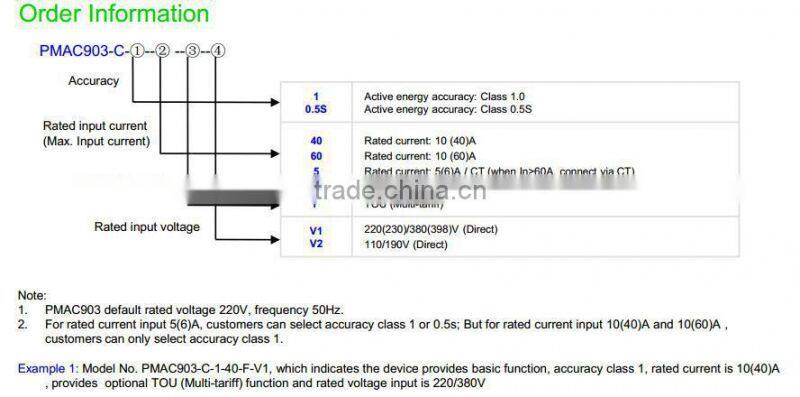

PMAC903 LCD Modbus three phase Energy Meter
High temperature resistant materials
Perfectly Match Your Billing System
Technical Specification
Rated current |
10(40)A, 10(60)A, 20(100)A or 5A/ CT |
Rated voltage |
AC 220Vph-N, 50Hz (optional 120V, 60Hz) |
Input consumption |
<2VA |
Overload |
115% of rated |
Connection mode |
PMAC903: 3-phase 4-wire |
Power supply |
Self supply, 220VAC, 50-60Hz |
Communication |
RS485 serial, Modbus-RTU Baud rate: 4800 or 9600bps Address: 1~247 |
|
Environment
|
Operating temperature: -20°C~ +55 °C Storage temperature: -20°C~ +55 °C Humidity: 5%~95% non-condensing |
Pulse output |
2 channels, |
Pulse width |
90ms |
Pulse constant |
PMAC903: Rated 10(40)A, 10(60)A: 400imp/ kWh Rated 20(100)A: 200imp/ kWh Rated 5A/ CT: 1 pulse=(1÷3600 × PT × CT) kWh |
Standard (EMC) |
Electrostatic discharge immunity test IEC 61000-4-2,Level 4 Radiated immunity test IEC 61000-4-3,Level 3 Electrical fast transient/burst immunity test IEC 61000-4-4,Level 4 Surge immunity test (1, 2/50μs~8/20μs) IEC 61000-4-5,Level 4 Conducted emissions EN 55022,Class B Radiated emissions EN 55022,Class B |
Parameter |
Accuracy |
Resolution |
Measuring Range |
|
PMAC903 | ||||
| Communication data |
Voltage |
0.2% |
0.01V |
198V~242V (L-N) |
Current |
0.2% |
0.001A |
0.5~4995A |
|
Active power |
0.5% |
0.1W |
0~1MW |
|
Reactive power |
1.0% |
0.1Var |
0~1Mvar |
|
Apparent power |
0.5% |
0.1VA |
0~1MvA |
|
Power factor |
0.5% |
0.001 |
-1.000~+1.000 |
|
Frequency |
0.01 |
0.01Hz |
45Hz~65Hz |
|
| Display data |
Active energy |
Class 0.5S |
0.1kWh |
0~999999.9 kWh |
Reactive energy |
Class 2 |
0.1kVarh |
0~999999.9 kvarh |
|
1. DIN Rail Power Meter:
http://www.china.cn/product-detail/Din-rail-Power-Quality-Analyzer-PMAC770_1876112241.html
2. Cheaper solution DIN Rail Energy Meter
-- three phase
http://www.china.cn/product-detail/SPM93-Modbus-Data-Record-Three-phase_60124192599.html
-- single phase
http://www.china.cn/product-detail/SPM91-single-phase-modbus-din-rail_1863777693.html
