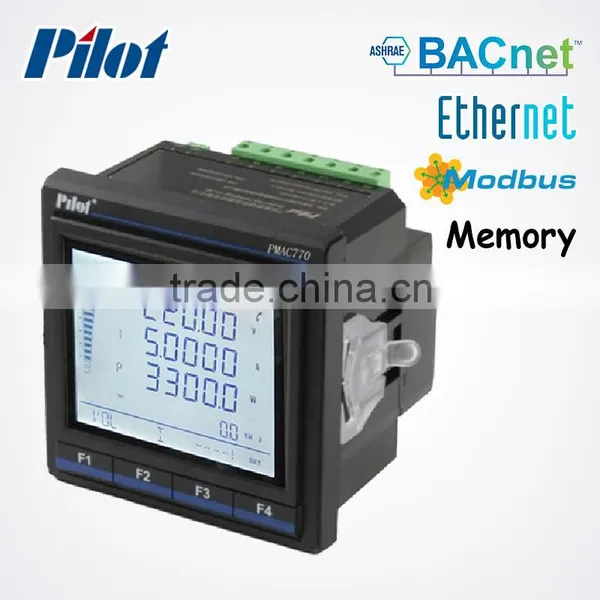

PMAC770 MODBUS/ BACnet / Electric Power Meter RS485 Quality Choice

PMAC770 MODBUS/ BACnet / Electric Power Meter RS485 Quality Choice thumbnail-1
PMAC770 MODBUS/ BACnet / Electric Power Meter RS485 Quality Choice photo-1
US$ 100 - 150 MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PILOT
Model Number:
PMAC770
Contact Supplier Request Quote Chat Now
Zhuhai Pilot Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhuhai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name PILOT
Model Number PMAC770
Measuring Current Range 0~50000A
Measuring Voltage Range 0~500KV
Accuracy Class 0.2 %
Operating Temperature -20~+60
Dimensions 96X96mm

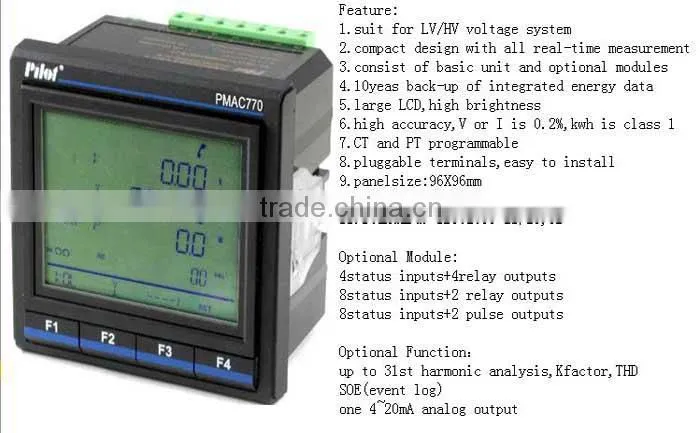

PMAC770 MODBUS/ BACnet / Electric Power Meter RS485

Got CE, KEMA, UL, CATIII certificate

with Following Features



Product Description







PMAC770 MODBUS/ BACnet / Electric Power Meter RS485




ØSuit for LV/ HV voltage system
For low voltage system, PMAC770 direct connect up to 600VAC
For high voltage system, PMAC770 need to connect with PTs, PT ratio programmable

ØNew appearance and design
Large LCD display and button, replace AI capacitor by Tam capacitor

ØSelf-testing phase sequence error In case of error phase sequence input, PMAC770 will display on LCD

ØReal-time measurement
True-RMS measuring parameters includes:
U, I, P, Q, S, PF, F, kWh, kvarh, demand, max./min. value,

ØDemand calculation mode is programmable
2 kinds of demand modes: fixed block and rolling block
Demand cycle programmable: 5/ 10/ 15/ 30/ 60mins
Slip window programmable: 1/ 2/ 3 mins


ØEthernet port, MODBUS-TCP/IP protocol


ØCO2 carbon dioxide emission calculation


ØMemory card, 64M bit, Build-in web


ØDI/DO, alarm function


ØMulti-tariff billing, historical data of 31 days and 12 months
2 kinds of setting modes: time zone mode and holiday mode
Time zone mode: 2 time zones in one year
Holiday mode: working days ( Mon.- Fri.) and holidays ( Sat.- Sun.)
There are 2 lists of tariff rate, each list can setup 8 periods of time in 24 hours, 4 tariff rates.


ØPower quality analysis

Harmonic analysis, crest and K factor, unbalance etc.

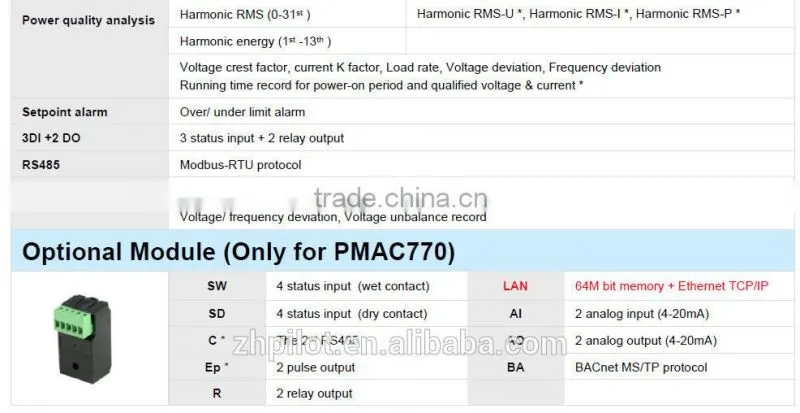

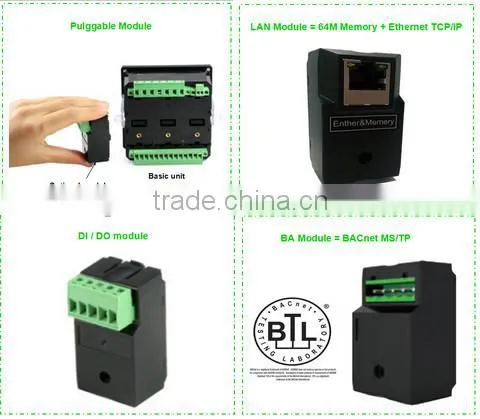

ØOptional module and upgradeable
Pluggable in option module, support online upgrade

ØSetpoint alarm
Under/ over limit alarm, monitoring objects include: U, I, PF, F, THD, unbalance
If any parameters is over or under limit and persists over the specified time, PMAC770 will record the event, and trip relay output signal.

ØHigh accuracy
Active energy: according to IEC62053-22, class 0.5s
Reactive energy: according to IEC62053-23, class 2

ØSmall size and thin style
Panel: 96x96x13.5mm Cut-out: 90x90mm,
Depth: 45.1mm (basic unit) + 21.5mm (optional module)
ØStandard IEC62053-22/ 23, CE. KEMA
Parameter Accuracy
Voltage 0.2%
Current 0.2%
Power 0.5%
Power factor 0.5%
Frequency 0.01
Active power 0.5%
Reactive power 2.0%
THD 1.0%
Harmonic 1.0%
Unbalance rate 1.0%


Basic Function

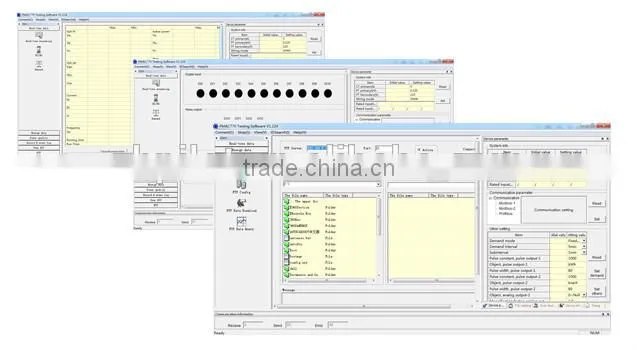

Testing software





Testing software

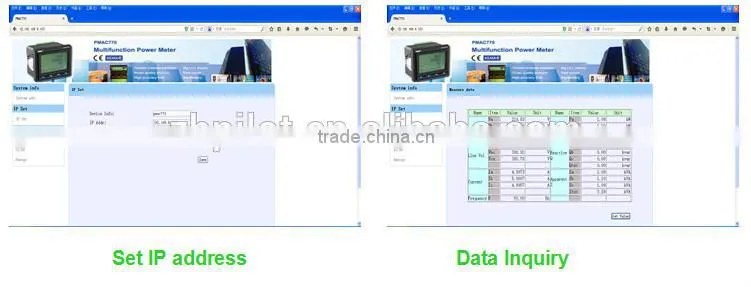

Build in Web

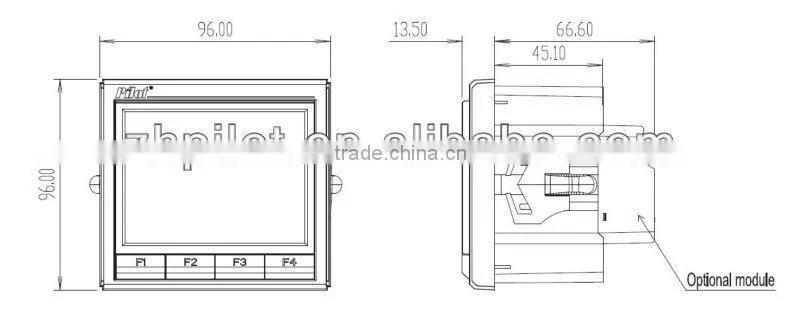

Dimension






PMAC770 MODBUS/ BACnet / Electric Power Meter RS485








Order Information













Similar Products



 1. DIN Rail Power Meter (same function as PMAC770, but for DIN Rail Mount)



https://img13.fr-trading.com/product/1876112241-800989234/Din_Rail_Power_Meter_PMAC770_DR.html



1.  SPM33 Economic Power Meter (Low cost )





   https://img13.fr-trading.com/product/1902478439-50323645/SPM33_Three_Phase_Multifunctional_Power_Meter.html





2.   PMAC735 Profibus Power Meter





https://img13.fr-trading.com/product/294169299-50323645/PMAC735_3_phase_LCD_multifunction_digital_power_meter.html





3.   PMAC201HW 12 Channel Energy Meter



https://img13.fr-trading.com/product/1642431847-215314014/PMAC201HW_Modbus_12_channel_energy_meter.html





 4. PMAC8660 Power Quality analyzer (TCP/IP, 2GB memory,  USB port )



https://img13.fr-trading.com/product/60207728801-50323645/PMAC8660_Power_Quality_Analyzer.html





Solution





1.  Mini SCADA -- PMAC3624 Web Server



https://img13.fr-trading.com/product/60055078889-800376595/PMAC3624_Mini_SCADA_for_128pcs_meter.html



 PMAC770 MODBUS/ BACnet / Electric Power Meter RS485

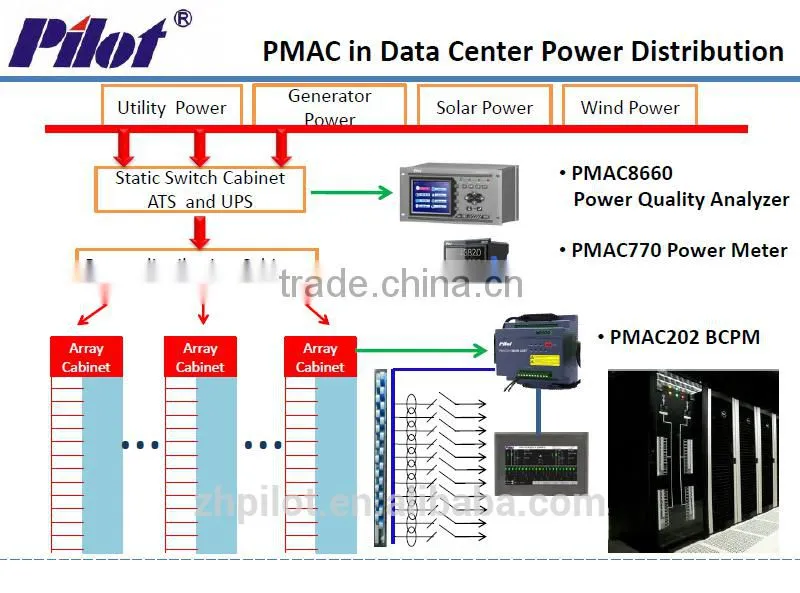

2.    Data Center solution
