Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Pilot | Model Number: | SPM33 |
| Measuring Current Range: | 0 ~ 650V | Measuring Voltage Range: | 0 ~ 65,000A | Accuracy Class: | class 1/0.5s |
| Operating Temperature: | -10℃~+55°C | Dimensions: | 96 x 96 x 18 mm |
Product Description

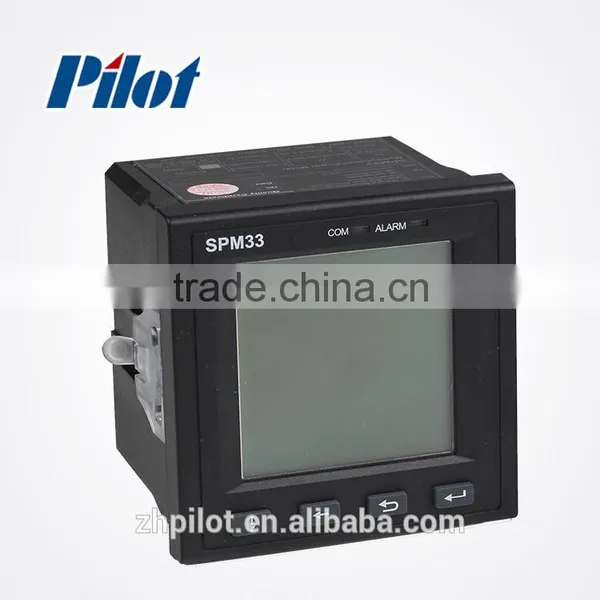

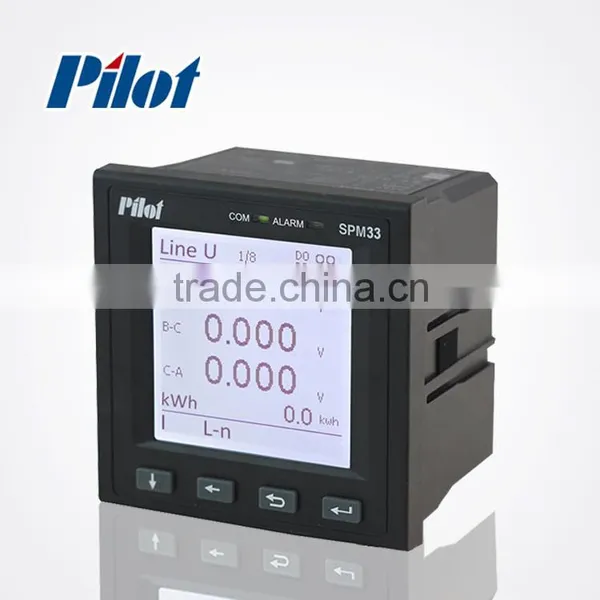

PILOT SPM33 Three Phase Electrical Power Meter
Product Description
Feature
ØEconomical multifunction power meter
ØSuit for voltage distribution system up to 650kV
ØDuel Source kWh phasetrac record seperately electricity base & generator supply
Ø31st Harmonic analysis, THD
ØOne RS485, support MODBUS-RTU protocol
ØPhase sequence adjustment
Ø2 status input (standard)
ØAlarm setpoint (optional)
ØBar chart display of current and voltage harmonics
Basic function
ØVoltage—Ua, Ub, Uc, Uab, Ubc, Uca,
ØVoltage unbalance rate – UL-L unbal, UL-N unbal
ØCurrent—Ia, Ib, Ic, In
ØCurrent unbalance rate –I unbal
ØActive power – Pa, Pb, Pc, ∑P
ØReactive power –Qa, Qb, Qc, ∑Q
Ø Apparent power—Sa, Sb,Sc, ∑S
Ø Power factor—PFa, PFb, PFc, ∑PF
Ø Frequency--F
Ø Active energy—kWh
Ø Reactive energy– kvarh
Ø Apparent energy– kVAh
Ø Demand and Max. record for I, P, Q, S
Ø 31st Harmonic , THD
Ø Dual Source kWh record both Grid & Generator (Import & Export)
Ø 2 DI, RS485
Optional function
Ø 2 relay outputs (optional)
Bar Chart display for Harmonic analysis

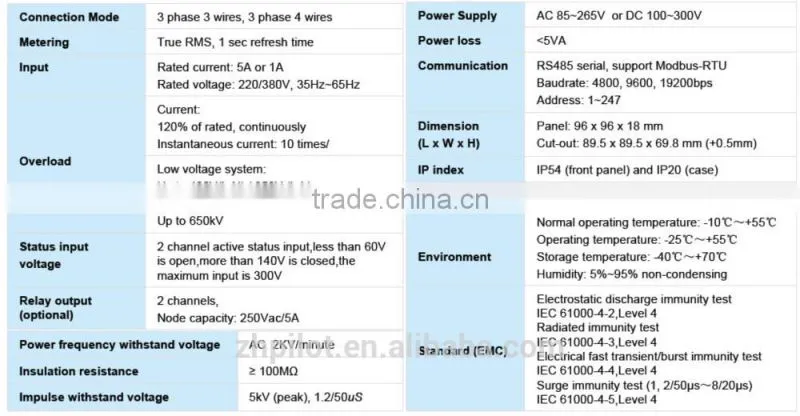

Technical specification

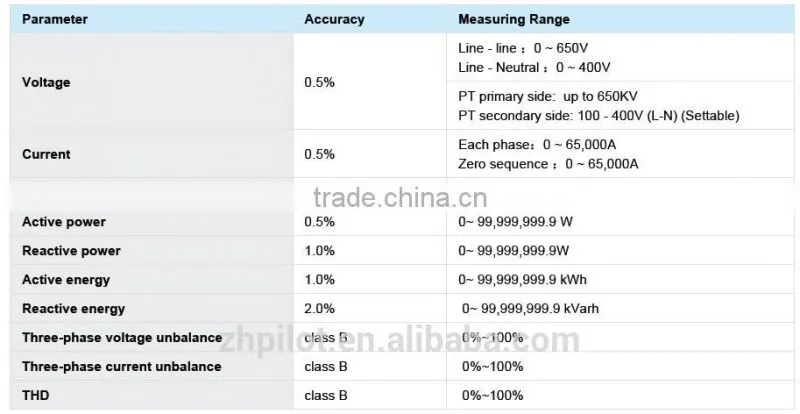

Accuracyof electricalparameters

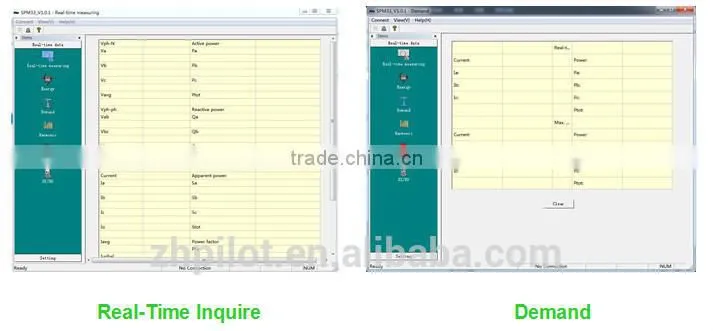

Testing software
Testing software
Dimension
Dimensions
Installation
Order Information
Example:Model No. SPM33-R-V1indicates : the low-voltage three-phase multifunction power meter with rated measuring 220/380V 5A ,two channel active status input,optional two relay alarm output,
