GSM Smart Energy Meter for 3 phase 4 wire smart energy meter
- 1000000 Unit / Units per Month
- shenzhen
- T/T L/C Credit Card PayPal
- GSM transformer monitoring system for power distribution transformer monitoring system
- GPRS Wireless 3Phase kwh meter with CT PT
- model GM-02 USB GSM GPRS Modem
- GPRS Data Transfer Unit with RS485 R232 Port for wireless data transfer terminal
- wireless gprs data terminal unit
- The most popular remote montoring switch controller Wireless GSM 3G RTU with RF 433Mhz wireless network
Product Details
Place of Origin: | Guangdong, China | Brand Name: | King Pigeon | Model Number: | S251 |
Display Type: | Digital Only | Phase: | Three Phase | Measuring Energy Range: | 0~400VAC, 0~5A. |
Accuracy Class: | 0.5 | Output Voltage: | 220v/230v/240v | Operating Temperature: | -35℃~+80℃ |
Dimensions: | 20mm*31mm*70mm (LXWXH) |
Packaging Details
box
Product Description

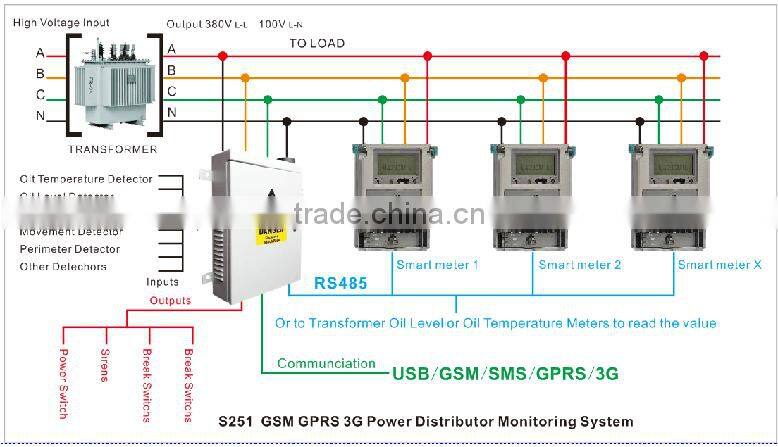

GSM GPRS 3G Power Meter & Power Transformer Monitoring Controller
A Professional & Biggest GSM SMS Controller, GSM GPRS 3G M2M, GSM GPRS 3G RTU Automation, GSM GPRS 3G Telemetry Data Logger
OEM ODM Manufacturer since 2005.
Name: GSM GPRS 3G Power Meter & Power Transformer Monitoring Controller
Model:S251

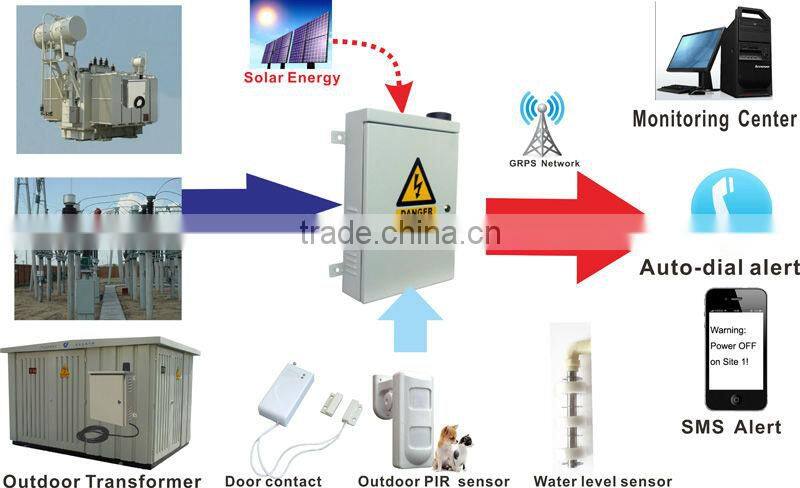

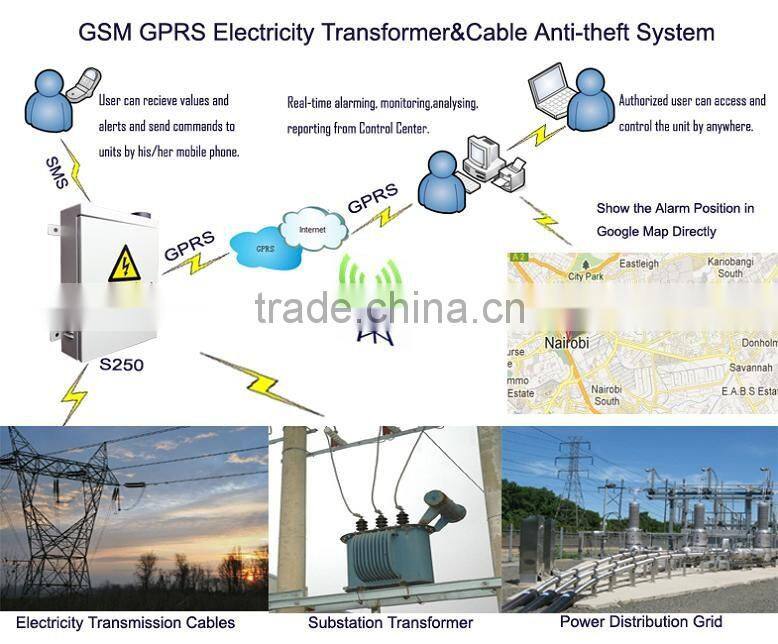

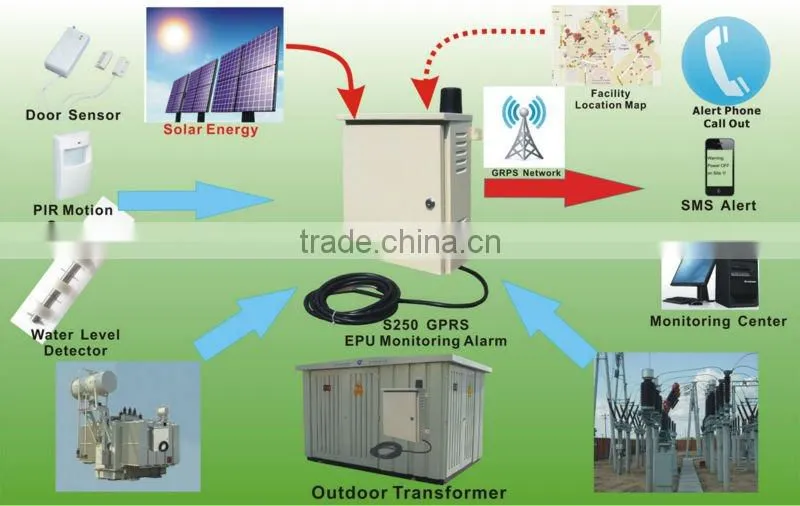

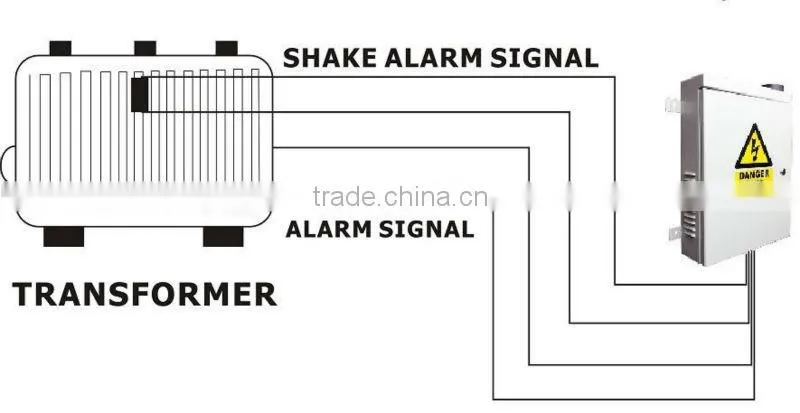

The GSM GPRS 3G Power Meter & Power Transformer Monitoring Controller is not only a smart power meter for measuring the power distributor voltage, current, factor, watts, frequency, active power, reactive power, when over current or exceed the pre-set value, will alarm immediately. but also can be used for monitoring the oil temperature, oil level of the transformers.

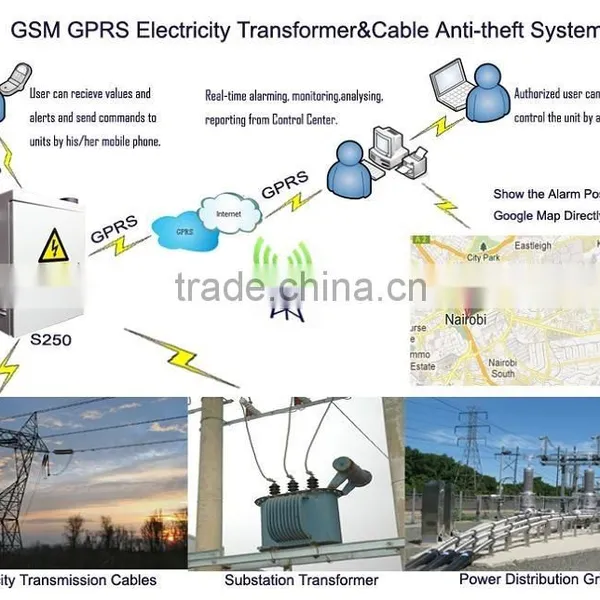

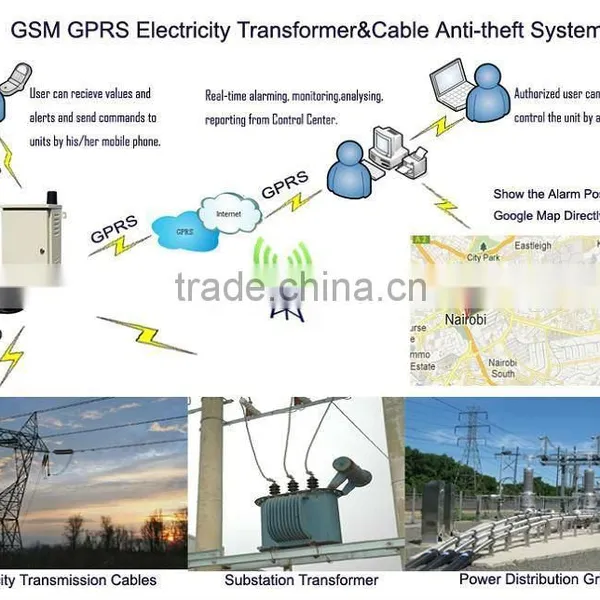

The GSM GPRS 3G Power Meter & Power Transformer Monitoring Controller was designed as a smart GSM/SMS/GPRS/3G power meter for measuring the power distributor voltage, current, factor, watts, frequency, active power, reactive power, when over current or exceed the pre-set value, will alarm and send SMS to users immediately.

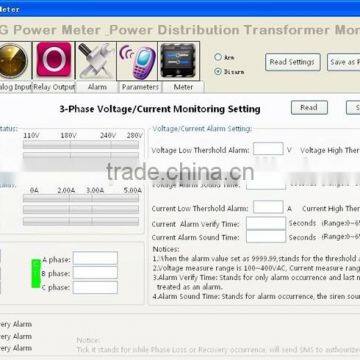

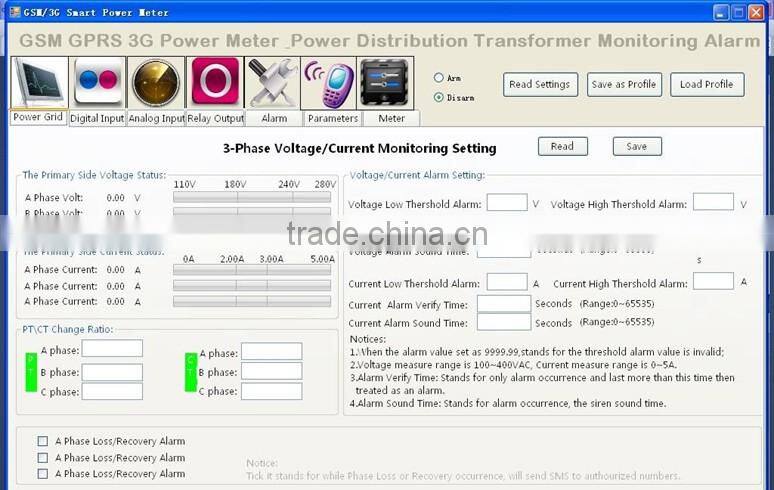

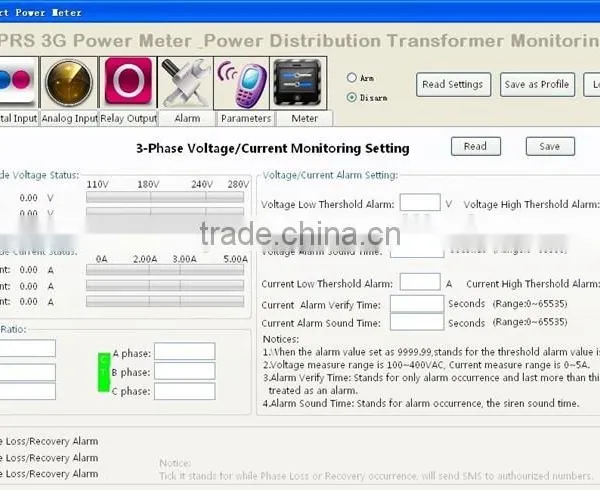

PC Configurator:
Mainly Features:
1. ARM® Cortex™-M4 32 Bit RISC Core, 72MHz inside, RTOS system;
2. Quad-Band GSM Frequency,3G, supports SMS and Voice and GPRS/3G communication;
3. Programmable by SMS Commands or PC Configurator via USB;
4. A/B/C phase power up it directly, Inbuilt large capacity rechargeable backup battery;

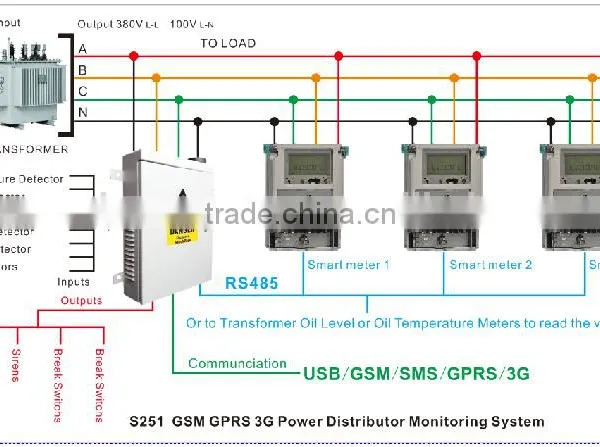

5. Suitable for three-phase four-wire system, input voltage: 100~400V, input current:0~5A;

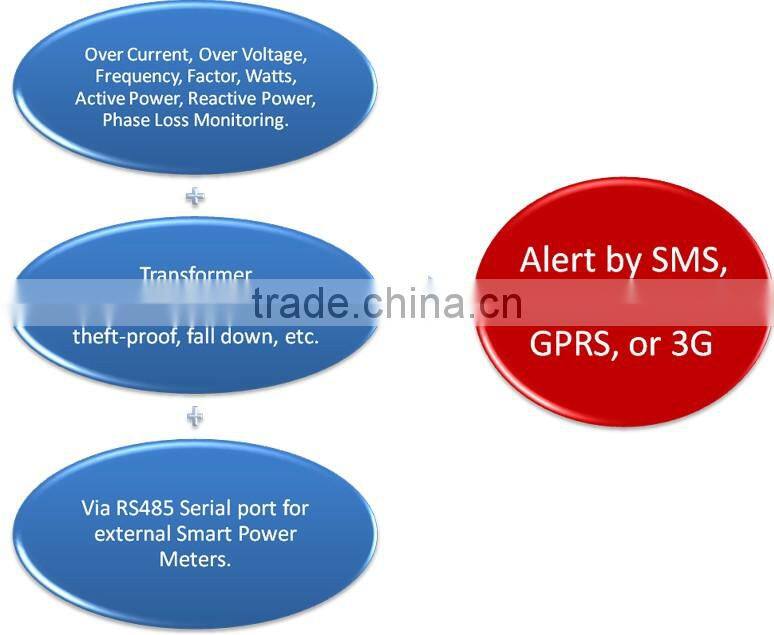

6. Monitoring A/B/C 3 Phase input over current, over voltage , factor, watts, active power, reactive power exceeds alarm;
7. PT,CT rate are programmable, can measure Power, frequency, power factor, watts, active power, reactive power and so on directly;
8. The accuracy of current, voltage is 0.2 class, power and watts is 0.5 class, sampling is 0.1seond.
9. Large internal memory can save 1000 event historical data, USB port for configuration;
10. 6 analog inputs, 16bits, supports 0-5V, 0-20mA, 4-20mA;
11. 2 digital outputs, 5A/30VDC,5A/250VAC, can be program to events or turn on/off by SMS;
12. 8 digital inputs, NC/NO/EOL type, when digital input recover can alert by SMS;
13. I/O ports with opto-isolated and lightning protection;
14. Provide one 5VDC@1A power for additional device;
15. Equips LCD to display the real time data and for programming;
16. 2 IP data centers, supports GDW 376.1—2009 protocol over GPRS/3G network;
17. 1 RS485 can be used as data transparent transmission for different intelligent meters or PLC, with 15KV ESD protection;
18. Automatically resend the data while communication failure, GPRS failure will alert by SMS text;
19. 8 SMS Alert and auto dial numbers, can program to receive specified alarm message.
20. Automatically report its status to users by the specified time;
21. Can arm it or disarm it by SMS Commands.
Technical Specification:
Rated Voltage: 110~220VAC 2A
Standby current: 5mA
Working temperature: -35℃~+80℃
Storage temperature: -35℃~+80℃
Measure Range: 0~400VAC, 0~5A.
Digital input: 8 (Dry contact, NC/NO/EOL)
Digital Output Relay: 2 (10A/240VAC)
Analog Input: 6(0~5V, 4~20mA, 0~20mA)
Solar Panel Input Voltage: 12V DC
Backup Battery: 3 X 1200mAH Rechargeable lithium battery
Standby time Approx.18hours (depending on the network condition)
Relative Humidity: 10-90%, No condensation
GSM Band: 850/900/1800/1900Mhz
GSM Emission Power: GSM850/EGSM900 Class4(2W)
DCS1800/PCS1900 Class1(1W)
Size: 20mm*31mm*70mm (LXWXH)
Net Weight: 2.50Kg
1. How to make sure the quality?
- Process Quality Control
- Final Quality Control
- Outgoing Quality Control
2. How to get the order?
- First,Tell us the model and quantity of the products you want.
- Second ,we will make a PI for you.
- Third, After confirm everything,the payment will be arranged (Paypal, Western Union,T/T or Ali Trade Assurance for your money safety are welcomed)
- Fourth, we will send you the goods within the promissory time.
3. How about the Shipping?
- The DHL,UPS,Fedex,TNT usually calculate the shipment based on measure size or weight. They compare the measurement size in Cube meters and Gross weight, and choose the large value to calculate the shipment cost. (Calculation Formula is : L*W*H/5000=Measurement Size weight, unit is cm)
- Reference Shipment Cost
For example, ship to Denmark from China.
Weight(Kg) | Shipment Cost | Average Cost for per Kg |
0.5Kg | 22.32USD |
|
1Kg | 28.27USD | 28.27USD |
16Kg | 206.83USD | 12.93USD |
21Kg | 147.13USD | 7.00USD |
31Kg | 210.00USD | 6.77USD |
51Kg | 316.00USD | 6.20USD |
101Kg | 590.00USD | 5.84USD |
201Kg | 1145.70USD | 5.70USD |
- Our recommends:
For samples, ship by Express, usually 3-5days.
While place small order, try to make the finial weight more than 21Kg.
If the order weight less than 100Kg, recommend to ship them by Express.
If the weight is 101kg~200kg recommend to ship them by Air-cargo or express;
If the weight is above 200kgs, recommend to ship them by air cargo or by sea.
- For small order by express, 20-30 pcs per order is the best.
4. What's the delivery time?
- Sample within 1-3days;
- Wholesales 4-7days according different quantities;
- OEM 7-14 days after all info confirmed.
- ODM depends on the detail requirements.
5. What is the warranty of your company?
- 2~3 years warranty for the main unit; one year warranty for the accessories.
- Please send back the defective goods within the warranty period, we will repair them or send you new free.
- Please send to us some pictures and video about it need to confirm your problem then we will send you free new goods or parts instead.
6. Can you do the design for us?
Yes, Just tell us your idea (logo,text., etc) and our professional R&D team will help to carry out your ideas into reality.
