PMAC625 LED Three Phase Digital Panel Meter
US$ 70 - 90
/ Unit
2 Units(Min. Order)
- Zhuhai
- T/T Money Gram Credit Card
You May Like
-
PMAC735 Three Phase Modbus LCD Multifunction Power Meter
-
PILOT SPM33 Three Phase Electrical Power Meter
-
0.75~30KW Three Phase AC Solar Pump Controller MPPT
-
PMAC770 MODBUS/ BACnet / Electric Power Meter RS485 Quality Choice
-
PILOT 90kW PLST Solar Water Pump Controller
-
PILOT 110kW PLST Solar Water Pump Controller
Product Details
| Place of Origin | Guangdong, China | Brand Name | Pilot | |
| Model Number | PMAC625 | Measuring Current Range | 0-5A | |
| Measuring Voltage Range | 0-500V | Accuracy Class | 0.5% | |
| Operating Temperature | -20~70degree | Dimensions | 96 x 96mm |
Product Description

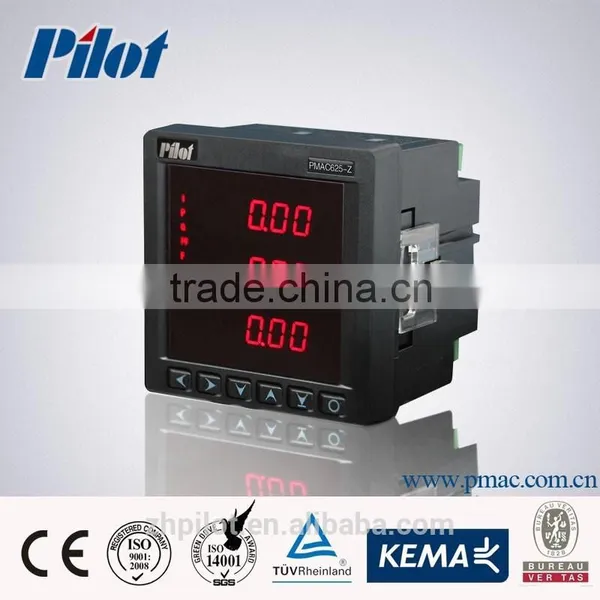

PMAC625 LED Three Phase Digital Panel Meter
Product Description
ØSuit for 220V, or 240V (ph-N) low voltage system
ØSimultaneous sampling of Volts and Amps
ØCompact design with all real-time measurement
Ø10 years back-up of integrated energy data
ØLED display, high brightness, auto-scrolling
ØCT primary is programmable
ØPluggable terminals, easy to install
ØPassword protect
ØStandard: IEC62053-21, CE
Basic Function
PMAC625 measures and display one or more parameters listed below:
ØVoltage—Ua, Ub, Uc, Uab, Ubc, Uca
ØCurrent—Ia, Ib, Ic, In
ØActive power – Pa, Pb, Pc, ∑P
ØReactive power –Qa, Qb, Qc, ∑Q
ØPower factor—PFa, PFb, PFc, ∑PF
ØFrequency--F
ØActive energy—kWh
ØReactive energy-- kvarh
Optional Function
ØTwo status input ( wet contact)
ØTwo relay alarm output
ØOne RS485 communication
Technical Specification
Parameter | Accuracy | Resolution | Measuring Range |
Voltage | 0.2% | 0.01V | 264V(ph-N), 500V (ph-ph) |
Current | 0.2% | 0.001 | CT primary: 0~9,999A CT secondary: 1 A or 5A |
Power | 0.5% | 0.1W/ var | 9,999 kW/ kvar |
Power factor | 0.5% | 0.001 | -1.000~+1.000 |
Frequency | 0.01 | 0.01Hz | 35-65Hz |
Active energy | 1.0% | 0.1kWh | 0-99,999,999.9 kWh |
Reactive energy | 2.0% | 0.1kvarh | 0-99,999,999.9 kvarh |

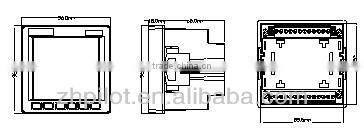

Dimension
Similar Products
1. SPM33 LCD Harmonic Dual Source kWh meter for Utility and Generator monitoring
http://zhpilot.en.china.cn/product/1902478439-50323645/SPM33_Three_Phase_Multifunctional_Power_Meter.html
2. PMAC735 Profibus multifunction power meter
http://zhpilot.en.china.cn/product/294169299-50323645/PMAC735_3_phase_LCD_multifunction_digital_power_meter.html
3. PMAC770 BACnet & TCP/IP Multifunction power quality analyzer
http://zhpilot.en.china.cn/product/698732522-50323645/PMAC770_Bacnet_power_quality_analysis_Modbus_communication_power_meter.html
Solution

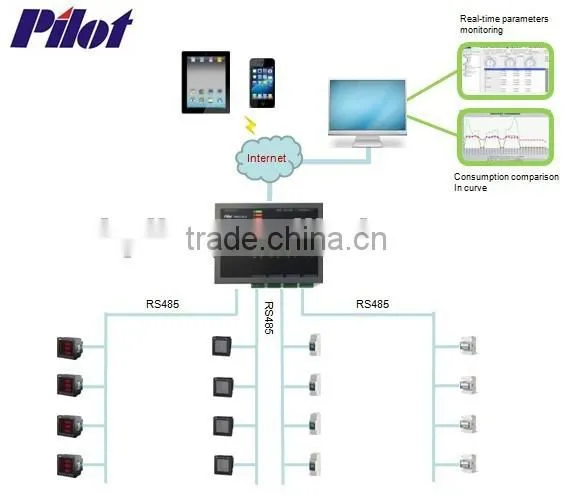

PMAC3624 Mini SCADA Power Monitoring Web Server (Max. connect 128pcs)
http://zhpilot.en.china.cn/product/60055078889-800376595/PMAC3624_Mini_SCADA_for_128pcs_meter.html

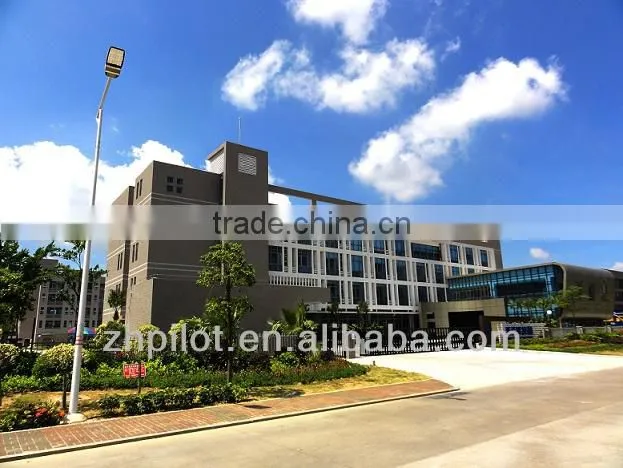

Company Information
