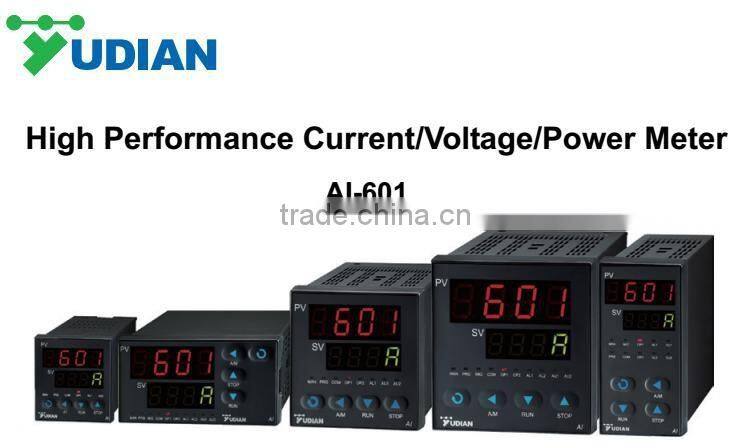

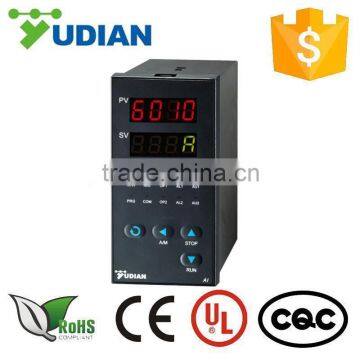

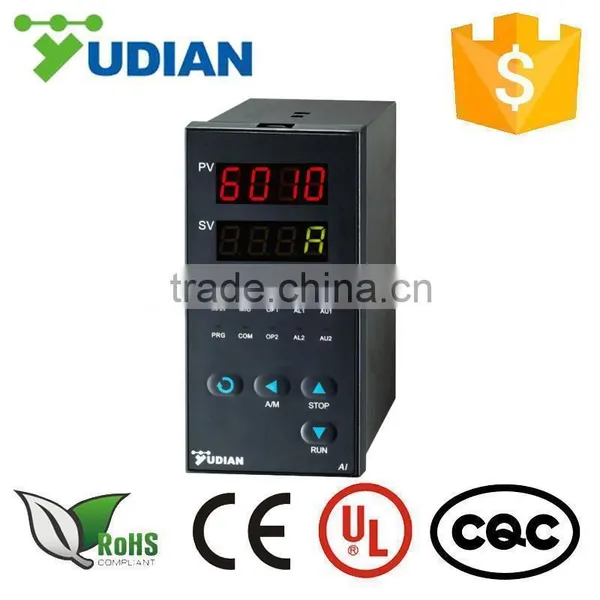

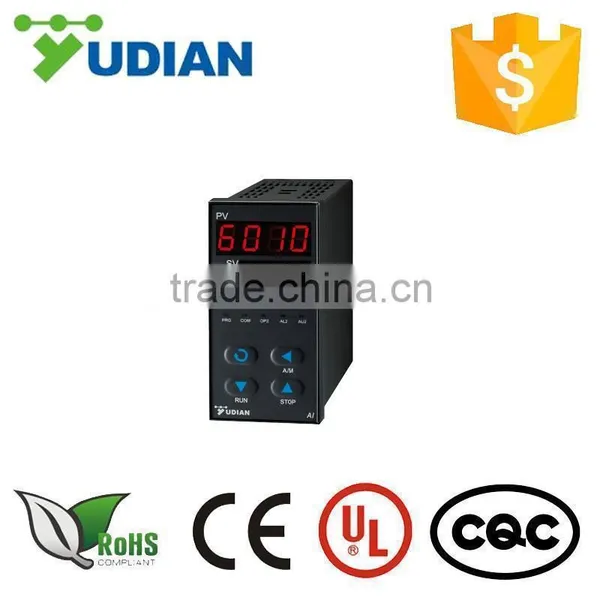

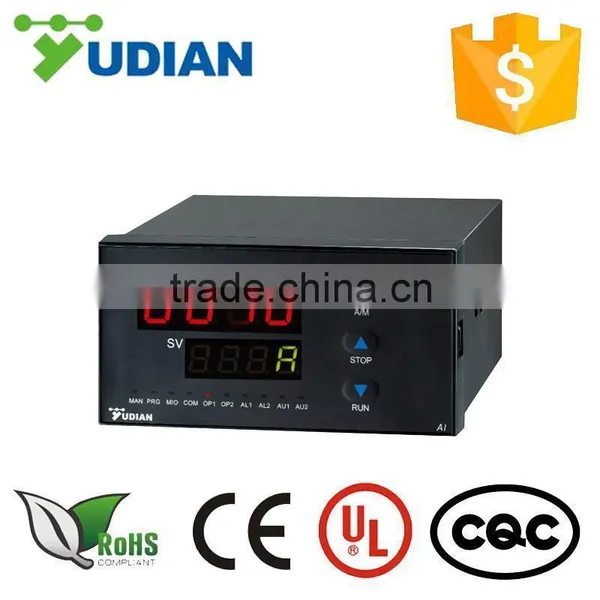

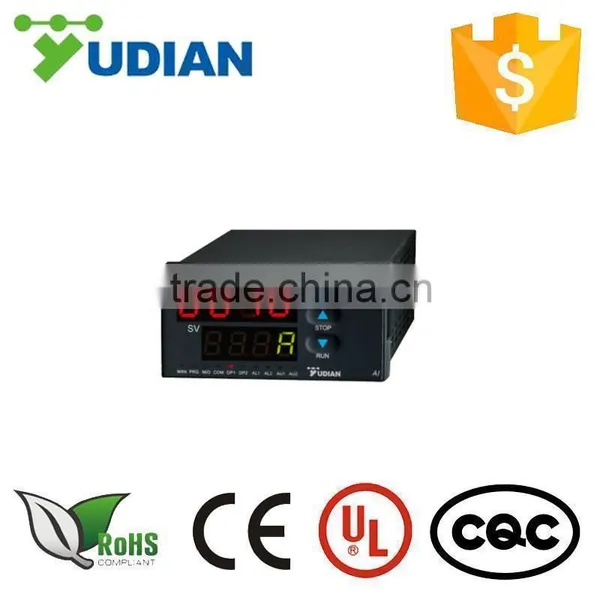

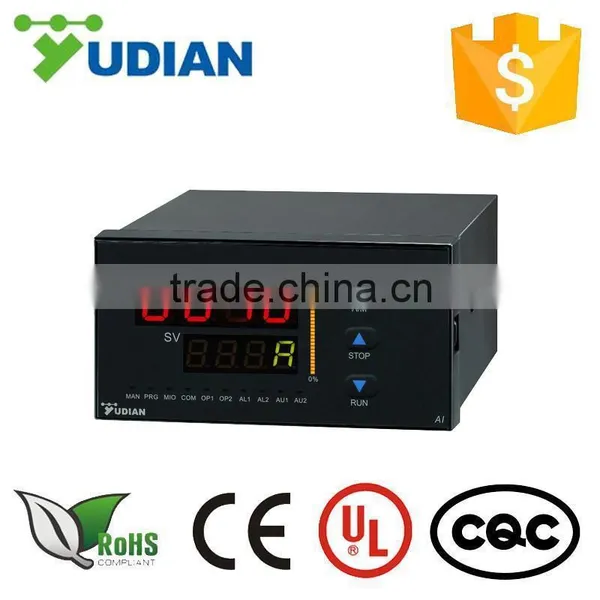

AI-6010A Yudian Brand AC Voltmeter Price
Main Features for AI-6010A Yudian Brand AC Voltmeter Price
- Equipped with alternative voltage and alternative current signal inputs isolated by transformer. It provides the functions of communication, retransmission and alarm. The main board is isolated with heavy current.
- Measurement accuracy is 0.2%FS.
- Provide dual display instrument.
- Up to four channels of alarm, including two high limit alarms and two low limit alarms, Introduce digital calibration technology, easy to operate and maintenance free, automatically adapted to 50Hz/60Hz power measurement.
- Support RS485 and RS232C communication interface and AIBUS communication protocol, which is 3 to 5 times faster than other field protocols.
- Provide signal retransmission functions with transmission accuracy of 0.2%F.S. able to output standard industrial signal.
- Universal power supply of 100-240VAC or 24VDC and various installation dimensions for users to choose from.
- High quality and latest hardware design using high performance electronic components energy efficient less temperature drifting provides higher stability and reliability.
- ISO9001 and CE certified, achieving world class level of quality, anti-interference ability and safety.
Technical Specifications for AI-6010A Yudian Brand AC Voltmeter Price
1. Input type:
AC Current: 0-5A (other specification can be ordered), the displayed scale can be freely defined;
AC Voltage: 0-500VAC (0~250VAC other specification can be ordered)
Power: Displayed power range can be freely defined according to real AC voltage and current.
2. Measurement accuracy:
0.2%FS±1
3. Temperature shift:
≤0.01%FS/℃ (typical value is 50ppm/℃)
4. Electromagnetic compatibility (EMC):
IEC61000-4-4, ±4KV/5KHz;
IEC61000-4-5, 4KV.
5. Retransmission:
When X3 current module is installed in OUTP slot, process value (PV) can be retransmitted to standard current with maximum load resistor 500 ohm.
6. Alarm function:
High limit, low limit, second high limit and second low limit
7. Isolation withstanding voltage:
Between power, relay contact or signal terminals ≥2300VDC;
Between isolated electroweak signal terminals≥600VDC
8. Power supply:
100~240VAC, -15%, +10% / 50-60Hz;
24VDC / AC, -15%, +10%
9. Power consumption:
≤5W
10. Operating Ambient :
Temperature -10~+60℃; humidity≤90%RH
Ordering Code Definition for AI-6010A Yudian Brand AC Voltmeter Price
The ordering code of AI-601 series instrument is made up of 8 parts. For example:
AI-601 A N X3 L5 N S4 - 24VDC
1 2 3 4 5 6 7 8
Part 1 Model of the instrument
AI-601 AI-601 AC current, AC voltage and power Indicating/Alarming Instrument. Input (0~5A, 0~500VAC)
Part 2 Dimension
| Size | Front Panel (W*H) | Cut Out (W*H) | Depth Behind Mounting Surface | Light Bar |
| A | 96*96mm | 92*92mm | 100mm |
|
| A2 | 96*96mm | 92*92mm | 100mm |
25 segments and 4 levels |
| B | 160*80mm | 152*76mm | 100mm | |
| C | 80*160mm | 76*152mm | 100mm | |
| C3 | 80*160mm | 76*152mm | 100mm | 50 segments and 2 levels |
| D | 72*72mm | 68*68mm | 95mm | |
| D2 | 48*48mm | 45*45mm | 95mm | |
| E | 48*96mm | 45*92mm | 100mm | |
| E5 | 48*96mm | 45*92mm | 100mm | DIN rail mounting |
| F | 96*48mm | 92*45mm | 100mm |
Part 3 Multiple Functions I/O (MIO)
Isolated 10 / 24VDC voltage output, can supply power for external transmitter or transducer.
Part 4 Main Output (OUTP)
Installing X3 current output module can retransmit process value (PV).
Part 5 Alarm (ALM)
Installing L1, L2 or L4 relay output module or L5 dual relay output module to output alarms.
Part 6 Auxiliary Output (AUX)
Installing L1, L2, L4 or L5 relay output module to output alarms.
Part 7 Communication (COMM)
Installing S or S4 module to communicate via RS485 interface.
Part 8 Power Supply
Null indicates 100~240VAC power supply, and "24VDC" indicates 20~32VDC/AC power.

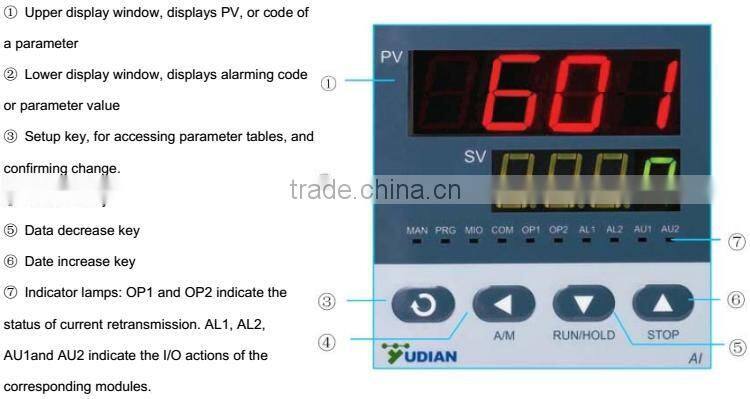

Front Panel and Operation for AI-6010A Yudian Brand AC Voltmeter Price

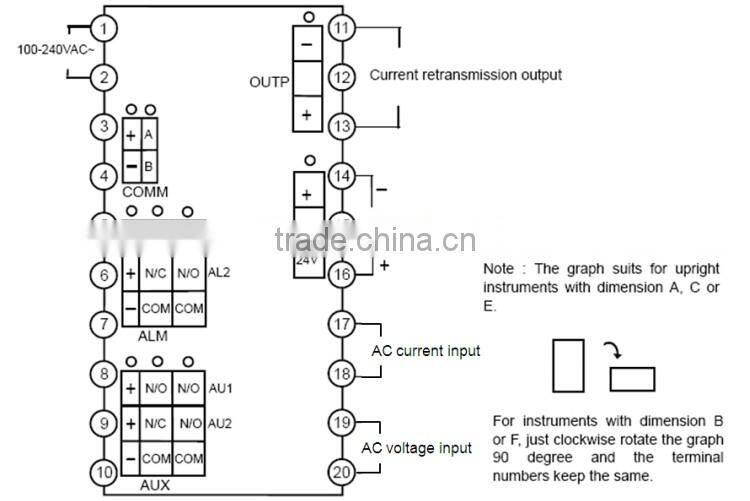

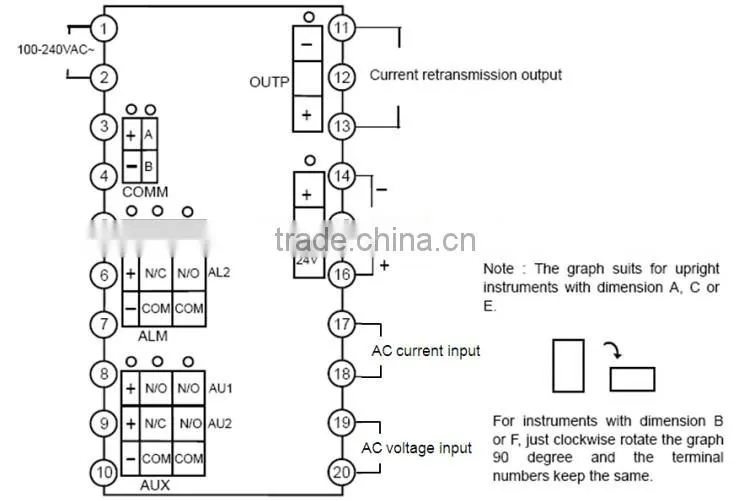

Wiring Graph for AI-6010A Yudian Brand AC Voltmeter Price
You will get:
A piece of temperature indicator;
A paper of user manual;
Five-year warranty card and Quality Approval card;
A lable of units;
A pair of installaton brackets;
Nice package carton box with Yudian logo.
- Factory with 26 years experience.
- Two to ten years warranty time.
- Quick delivery ( within 3 working days).
- Retail/ Wholesale/ OEM/ ODM available.
- Better price for bulk order.
- We provide after sales service and technical assistance as customers requirement and needs.
If you are interested in our products or have any questions, please do not hesitate to contact us.
