Specifications
New model wet magnet separator1.remove the ferrous powder
2.high efficiency
3.improve the quality of the final pruduct.

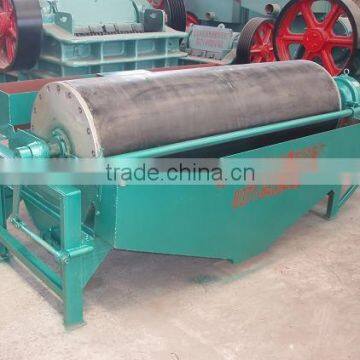

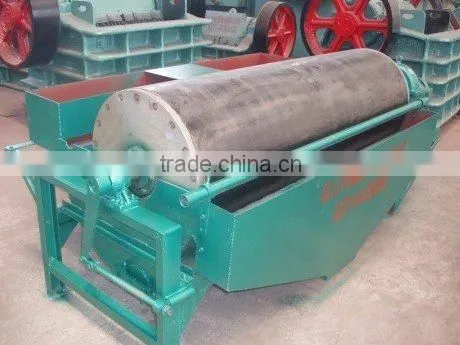

New Model Magnetite Calcined Ore Ilmenite Wet Magnetic Separator
1. New Model Magnetite Calcined Ore Ilmenite Wet Magnetic Separator application
The wet magnet separator in our factory applies to the strong magnetic minerals with the particle size of less than 3mm, such as the magnetites , calcined ore, ilmenite ore, etc. In addition, it is also widely used for iron removal operation in coal, non-ferrous metal and building material industry. Our factory can supply different magnetic force grade seperator in the form of downstream, semicounter current, counter current. It owns the features of simple structure, large capacity, easy operation and maintenance, etc.
2. New Model Magnetite Calcined Ore Ilmenite Wet Magnetic Separator technical parameter
Model |
Magnetic Strength (mT) |
Input Size (mm) |
Cylinder Speed (r/min) |
Power (kw) |
Capacity |
Weight (kg) |
|
|
Ore (t/h) |
Slurry(m3/h) |
||||||
CTB600x900 |
≥120 |
≤1 |
40 |
1.1 |
8-15 |
24 |
850 |
CTB600×1200 |
≥120 |
≤1 |
40 |
1.5 |
10-20 |
32 |
1000 |
CTB600×1800 |
≥120 |
≤1 |
40 |
2.2 |
15-30 |
48 |
1300 |
CTB750×1200 |
≥120 |
≤1 |
35 |
2.2 |
15-30 |
48 |
1500 |
CTB750×1800 |
≥120 |
≤1 |
35 |
3.0 |
20-45 |
72 |
1800 |
CTB900×1800 |
≥135 |
≤1 |
28 |
4.0 |
25-55 |
90 |
2400 |
CTB900×2100 |
≥135 |
≤1 |
28 |
4.0 |
30-65 |
100 |
2650 |
CTB1050×1800 |
≥145 |
≤1 |
22 |
5.5 |
35-70 |
110 |
3800 |
CTB1050×2100 |
≥145 |
≤1 |
22 |
5.5 |
45-88 |
140 |
4150 |
CTB1050×2400 |
≥145 |
≤1 |
22 |
5.5 |
45-88 |
140 |
4500 |
CTB1200×2100 |
≥145 |
≤1 |
19 |
7.5 |
62-110 |
160 |
5800 |
CTB1200×2400 |
≥145 |
≤1 |
19 |
7.5 |
82-120 |
192 |
6200 |
CTB1200×3000 |
≥145 |
≤1 |
19 |
7.5 |
80-150 |
240 |
6800 |
CTB1500×3000 |
≥145 |
≤1 |
14 |
11 |
90-170 |
270 |
8200 |
CTB1500×4000 |
≥145 |
≤1 |
14 |
11 |
115-220 |
350 |
9000 |
The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
