Oil press for soybean, peanut,seasame, groundnuts, sunflower seeds, mustard

Specifications

Oil press
1.80-650kg/h capacity
2.Labor & energy saving
3.With two vacuum oil filters
4.Cold & hot press

Oil press for soybean, peanut,seasame, groundnuts, sunflower seeds, mustard seeds



Brief Introduction of  oil press for soybean, peanut,seasame, groundnuts, sunflower seeds, mustard seeds

Item	Full Automatic Screw oil mill machine
Press method	Hot and cold press all available
Models in supply	D-1685 / D-1688 / ZL-120 / 6YL-130 / 6YL-165
Machine Application	Soybean, sunflower seeds, peanut, rapeseeds, cottonseeds, vegetable seeds, mustard seed, canola, flax seed, castor seeds, tea seed, corn embryo etc.
Machine texture	Carbon steel & Stainless steel
Certification	ISO9001:2000 ; ISO9001:2008



Details of  oil press for soybean, peanut,seasame, groundnuts, sunflower seeds, mustard Main spare parts: worm, squeezing head, worm shaft, cage bar, heater ring, cake outlet, vacuum filter .



Working principle of  Oil press for soybean, peanut,seasame, groundnuts, sunflower seeds, mustard

When the oil mill machine is working, send the prepared raw material to the pressing chest from hopper , and moves forwards the rotating pressing screw, then the raw materials are pressed .  Under the high pressure condition in the pressing chest, friction among the raw material, worm and pressing chest are resulted ; meanwhile, friction and relative movement are raised among the material particles.   And, root diameter of the worm varies larger from one to the other, hence, when rotating, it not only pushes material particles moving forward but turns then outwards as well .    Meanwhile, material particles adjacent the worm will rotate along with worm's rotating, causing every particles inside the chest to possess different speed. Therefore, relative movement among particles creates heat which is necessary during production because it helps to change the protein property, damage solloid, increase plasticity and decrease elasticity of oil, resulting in high oil productivity .



Technical parameters

Model		D-1685	D-1688	ZL-120	6YL-130	6YL-165
Diameter of worm shaft		80mm	100mm	120mm	130mm	160mm
Speed of worm shaft		60r/min	40r/min	36r/min	36r/min	35r/min
Diameter of internal circle of pressing chest		82mm	102mm	122mm	132mm	162mm
Configuration power	Main engine	6-5.5KW	6-7.5KW	6-11KW	4-18.5KW	4-22KW
	Heater	3KW	3.5KW	4KW	6KW	6KW
Handling capacity		80-160kg/h	150-260kg/h	260-400kg/h	400-550kg/h	500-650kg/h
Machine weight		780kg	1100kg	1500kg	1900kg	2000kg
Size (LxWxH)(mm)		1700 x 1300 x 1600	2000 x 1400 x 1750	2050 x 1550 x 1800	2250 x 1600 x 1850	2300 x 1700 x 1900

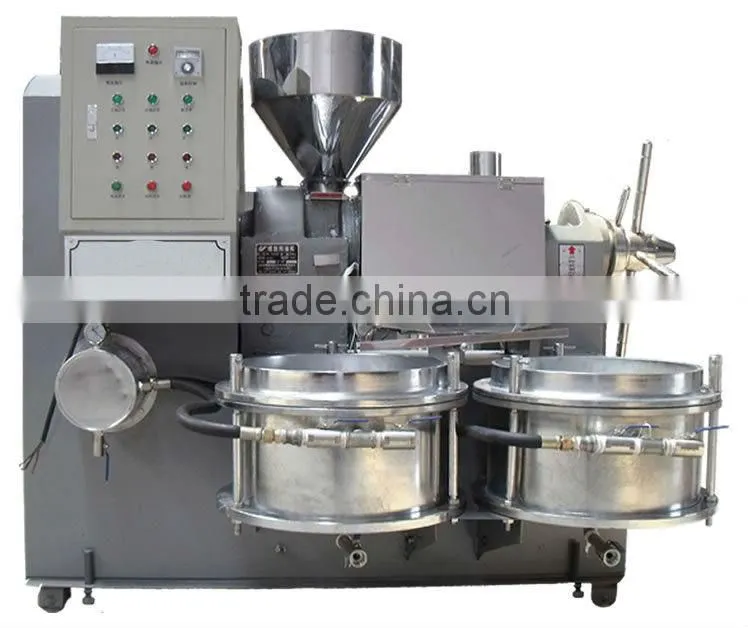

Photo show



Main Features & Advantages of soybean oil mill machine

1. High oil yield, low oil residual in cake: The oil left in cake is less than 6%.

The cake thickness can be adjusted when the machine stops running;



2. Small-land using: only 10-20 square meters workshop can make production.



3. Pure oil quality: machine surface is made of chrome plated stainless steel, in line with food hygiene standards; Also, with two vacuum oil filters, the residual can be removed by simply filtering;



4. Other advantages: high efficiency, energy and labor saving, easy operation, simple maintenience .
