Specifications

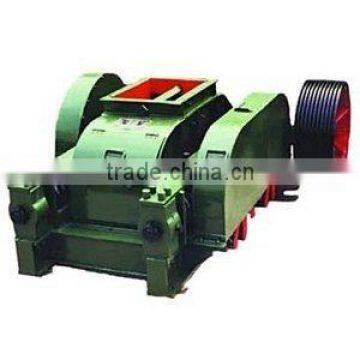

Tooth Roller Crusher Used For Coal Crushing-ISO 9001:2008
-SGS & BV factory audit
-Double Teeth Roll Crusher are exported
Toothed roller crushers are widely used to crush brittle and flexible stuff in cement, metallurgy, chemical, coal,hydroelectric, etc
Application of toothed roller crusher:
Toothed roller crusher can be used for intermediate and fine crushing such hard and medium hard ore and rock in mineral separation, chemical industry, cement, corhart, abradant materials, building materials and otherindustrial department, especially for producing rice-like and bean-like stone.Its effect is more excellent than common crushing equipment. We can provide you not only the roller crusher and all of accessories, but also type selection introduction and installation guidance, etc.
Features of toothed roller crusher
It incorporates one Stationary Roll and one Moveable Roll. The Movable Roll provides relief by moving away form the Stationary Roll when uncrushable material is encountered and immediately resets to the original position. Roll diameters range from 18" to 76" and roll widths up to 120".
Technical parameters of toothed roller crusher
Model |
2PG-400X250 |
2PG-610X400 |
Roller Dia. (mm) |
400 |
610 |
Roller length (mm) |
250 |
400 |
Max. feeding size(mm) |
25 |
85 |
Discharging size (mm) |
0-8 |
0-30 |
Output (T/H) |
5-10 |
12-40 |
Power (kw) |
Y-6-5.5(2 SETS) |
Y-6-15(2 SETS) |
Overall dimension(L*W*H) (mm) |
1430x1481x816 |
2235x1722x810 |
Weight (Ton) |
1.3 |
3.5 |
