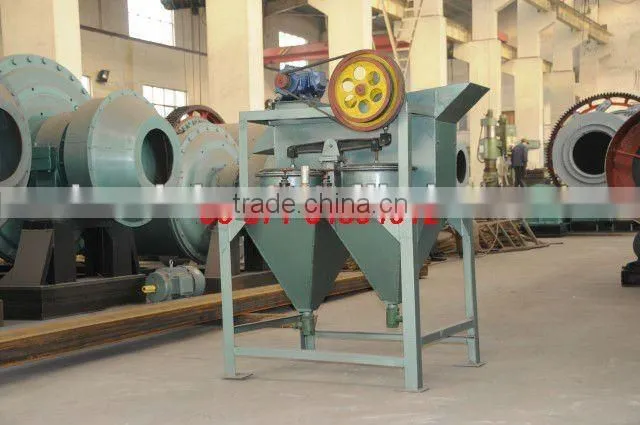

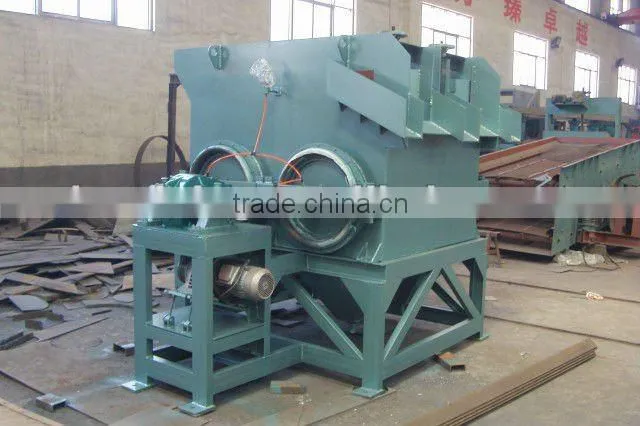

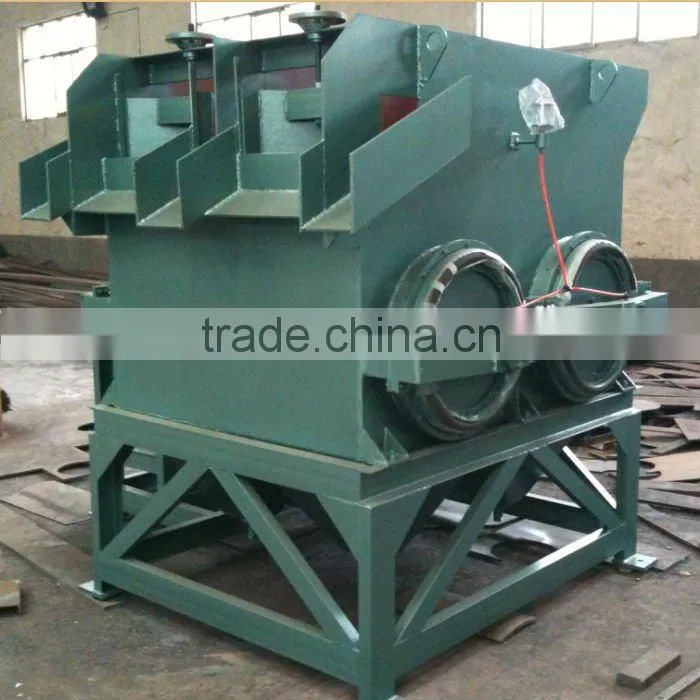

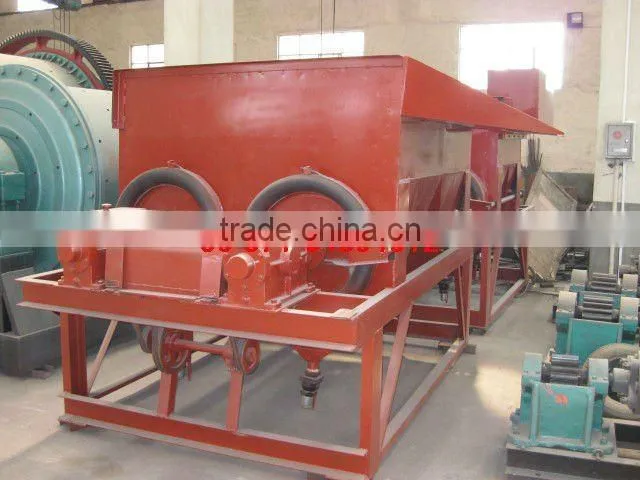

Professional jig equipment for sale

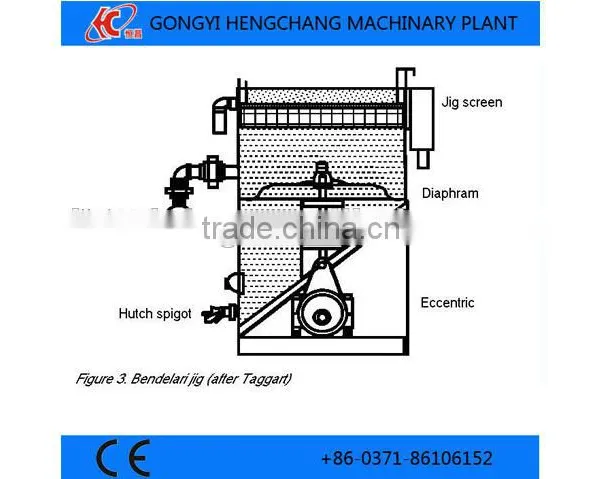

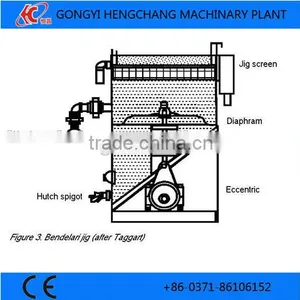

Introduction of jig machine:
Jig machine seperation belongs to deep groove sorting operation in ore dressing work. It adopts water as beneficiation medium, separates the minerals by use of gravity differences between the mineral ore and gangue. It is widely used in gravity separation, such as tungsten, tin, alluvial gold, hematite, limonite, manganese, titanium, antimony, lead, tantalum, niobium, etc.
Application of Jig Machine:
Ore dressing of our Saw-tooth Wave Ladder Jig is capable of handling almost full sizes of mineral materials other than very fine material. It features simple process operation, heavy duty equipment handling capacity with final products being obtained through one time separation. They can achieve a good result in processing such as placer gold, tantalum, niobium, titanium, tungsten, iron, tin, hematite, copper, coal, manganese, barite, zirconium and chrome etc.
Features of Jig Machine:
1. Compact structure and small occupation area
2. Energy saving and continuous working
3. High recovery, high unit throughput and low water consumption
4. Simple installation and Minimal maintenance requirements
5. Stroke and frequency of stroke can be easily adjusted
Specification of jig machine:
Model |
Jig Room |
Stroke Coefficient |
|
Max. Input Size (mm) |
Capacity (t/h) |
Water Consumption (t/h) |
Power (kw) |
Weight (kg) |
|||||
|
L (mm) |
Area (m2) |
Raw |
Rooms |
Total Area (m2) |
Stroke (mm) |
Times (mm) |
|||||||
LTP-34/2 |
450×300 |
0.135 |
1 |
2 |
0.27 |
0.58 |
0-25 |
320- 420 |
12 |
2-6 |
4-10 |
1.1 |
800 |
LTA-1010/2 |
1000×1000 |
1.0 |
1 |
2 |
2.0 |
0.5 |
0-25 |
250- 350 |
5 |
5-15 |
10-20 |
2.2 |
2890 |
LTC-69/2 |
600×900 |
0.54 |
1 |
2 |
1.08 |
0.55 |
0-50 |
220- 350 |
8 |
6-9 |
40-60 |
1.5 |
1420 |
2LTC-366/8T |
600×(300-600) |
0.2- 0.34 |
2 |
8 |
2.16 |
0.68- 0.41 |
0-50 |
120- 300 |
5 |
3-6 |
20-40 |
1.1x 2 |
3570 |
2LTC-6109/8T |
(600-1000)×900 |
0.58- 0.86 |
2 |
8 |
5.76 |
0.52- 0.35 |
0-50 |
120- 300 |
5 |
10-20 |
80-120 |
2.2x 2 |
4650 |

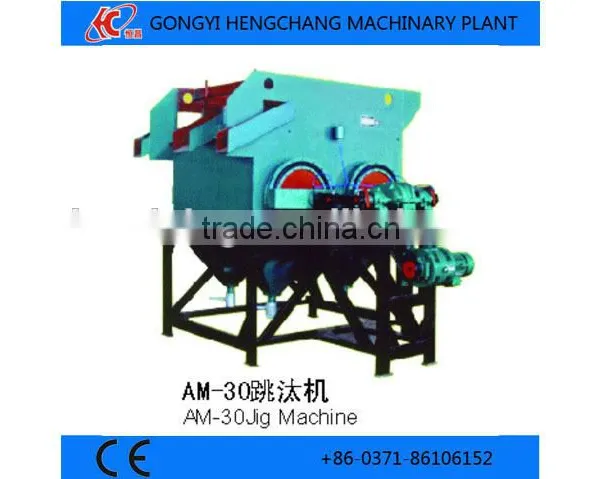

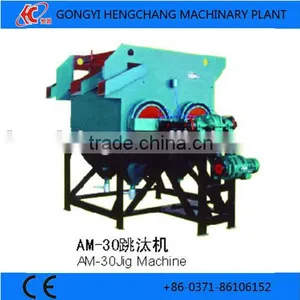

AM-30 |
2647×2380 |
0.644 |
2 |
2 |
2.574 |
0.47 |
0-50 |
130 |
30 |
10-15 |
100-150 |
3 |
2400 |
Gongyi Hengchang Metallurgy Building Material EquipmentsPlant was built in 1992, is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas.
