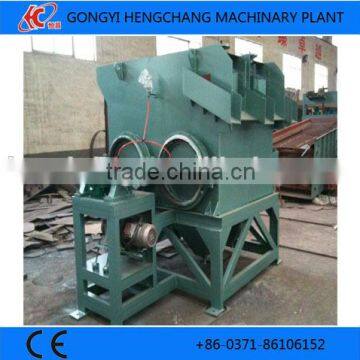

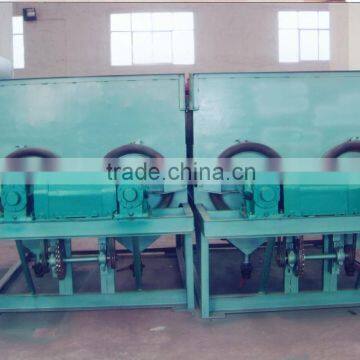

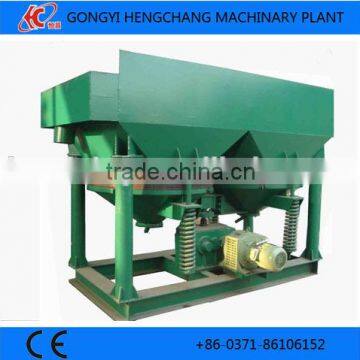

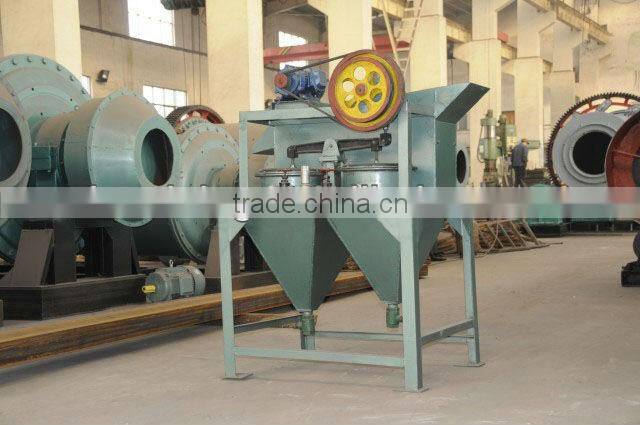

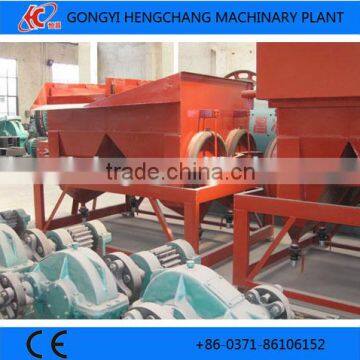

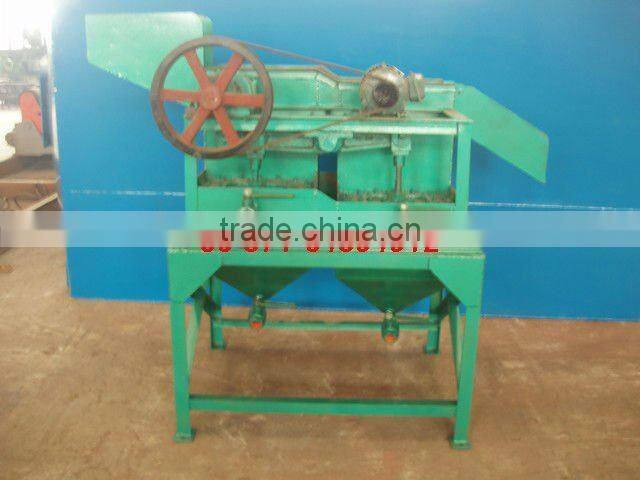

Stainless Steel Jig Machine for Sale

Introduction of  jig machine:

Jig machine seperation belongs to deep groove sorting operation in ore dressing work. It adopts water as beneficiation medium, separates the minerals by use of gravity differences between the mineral ore and gangue. It is widely used in gravity separation, such as tungsten, tin, alluvial gold, hematite, limonite, manganese, titanium, antimony, lead, tantalum, niobium, etc.

Features of jig machine:

1. High-efficiency

2. Easy to maintain

3. Low consumption, energy saving

4. Reasonable design

5. Specification  easy identification

Application of jig machine:

Jigmachineis one of the gravity separation equipment. It is of large capacity, wide range of sorting grain size, simple operation and maintenance, widely used as coarse or fine sorting machine in the beneficiation of gold, tin-tungsten, titanium, hematite,coal and other minerals.

Specification of jig machine:

Model	Jig Room					Stroke Coefficient			Max. Input Size (mm)	Capacity (t/h)	Water Consumption (t/h)	Power (kw)	Weight (kg)
	L (mm)	Area (m2)	Raw	Rooms	Total Area (m2)		Stroke (mm)	Times (mm)
LTP-34/2	450×300	0.135	1	2	0.27	0.58	0-25	320- 420	12	2-6	4-10	1.1	800
LTA-1010/2	1000×1000	1.0	1	2	2.0	0.5	0-25	250- 350	5	5-15	10-20	2.2	2890
LTC-69/2	600×900	0.54	1	2	1.08	0.55	0-50	220- 350	8	6-9	40-60	1.5	1420
2LTC-366/8T	600×(300-600)	0.2- 0.34	2	8	2.16	0.68- 0.41	0-50	120- 300	5	3-6	20-40	1.1x 2	3570
2LTC-6109/8T	(600-1000)×900	0.58- 0.86	2	8	5.76	0.52- 0.35	0-50	120- 300	5	10-20	80-120	2.2x 2	4650
AM-30	2647×2380	0.644	2	2	2.574	0.47	0-50	130	30	10-15	100-150	3	2400
