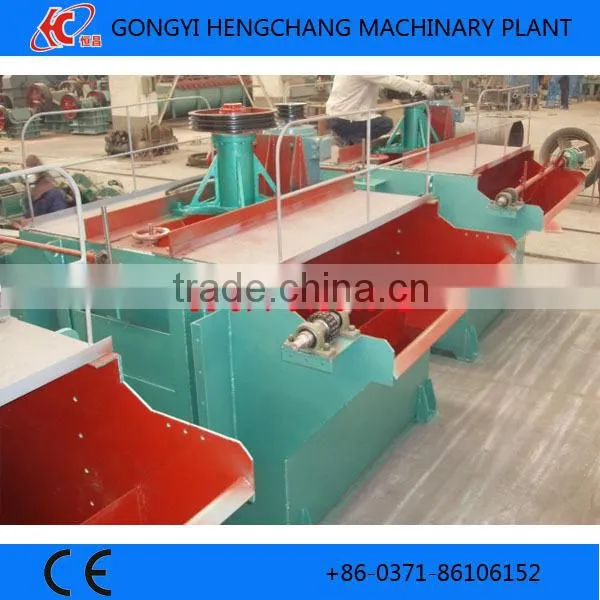

XJK Flotation Machine plant
INTRODUCTION of Flotation Machine:
XJKmechanical agitating flotation machineis suitable for separation of non-ferrous metals, ferrous metals, precious metals,non-metallic mineraland chemical raw materials, recovering useful minerals.This machine has the features of the big suction capacity and low power consumption.Every slot has the triple function of suction, grout and flotation which become the complete flotation circuit without anyauxiliary equipment installing the machine in a actinic line it will be easier for the flow process change, the rational slurry cycle and furthest reducing the coarse sand sinking.
FEATURES of Flotation Machine:
1.Excellent air-absorption capacity
2.Low energy consumption
3.Optimized design, the mineral slurry loops reasonably in cells without auxiliary equipment
4.Self-control functions
5.Special designed impeller which can produce upper ans lower circulation of mineral slurry respectivel.
WORKING PRINCIPLE of Flotation Machine:
(1) After intensively mixed, the pulp and medicaments are fed to the groove bottom of the first tank.
(2) When the impeller of the flotation machine for gold ore begins to rotate, negative pressure is formed, making the air and pulps at the bottom and middle part of the tank enter the mixing zone. The pulp, air and medicaments are then mixed in the mixing zone.
(3) As a result of the cenrifugal force, the blended pulps are lead to the mineralization area. The air is in full contact with the coal particle and forms mineralized discharged by the scraping tool. Finally, clean coal foam is produced by this flotation machine.
(4) Coal particles that are not mineralized will be remixed, re-mineralized and re-separate through the recycle hole and the upper intake.
(5) The left pulp that are not sucked by the impeller enters intor the third tank after going through the process of the first tank, thus, flotation machine for gold ore runs in cycle and discharges ore pulp through the tailing box of the flotation machine.

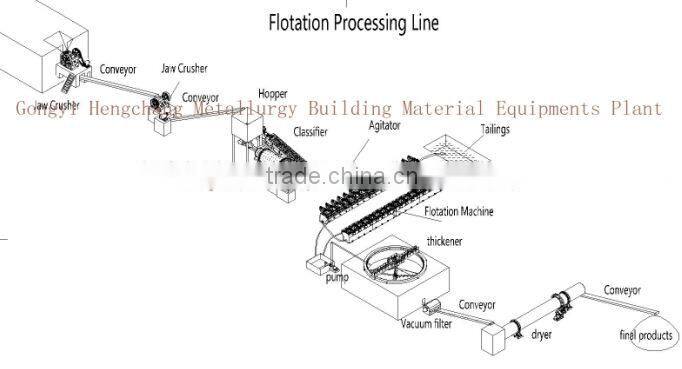

STRUCTURE of Flotation Machine:
Technical Parameters of Flotation Machine:
Model |
XJK—2(A) |
XJK—3(A) |
XJK—4(A) |
XJK—5(A) |
XJK—6(A) |
XJK—7(A) |
||
|
Slot Volume (m3) |
0.23 |
0.35 |
0.62 |
1.1 |
2.8 |
5.8 |
||
Impeller Dia.(mm) |
250 |
300 |
350 |
500 |
600 |
750 |
||
Impeller Speed(r/min) |
500 |
483 |
400 |
330 |
280 |
240 |
||
Capacity(m3/min) |
0.12-0.28 |
0.18-0.5 |
0.3-0.9 |
0.6-1. 6 |
1.5-3.5 |
3-7 |
||
Slot Size(mm) |
600×600 ×650 |
700 × 700 ×750 |
820×900 ×850 |
1100×1100 ×1000 |
1750×1600 ×1100 |
2200×2200×200 |
||
Power(Kw) |
3/2 slots |
3/2 slots |
3 |
5.5 |
11 |
15 |
||
Weight(kg/Slot) |
1158/4 |
1720/4 |
2500/4 |
4514/2 |
4514/1 |
7066/4 |
||

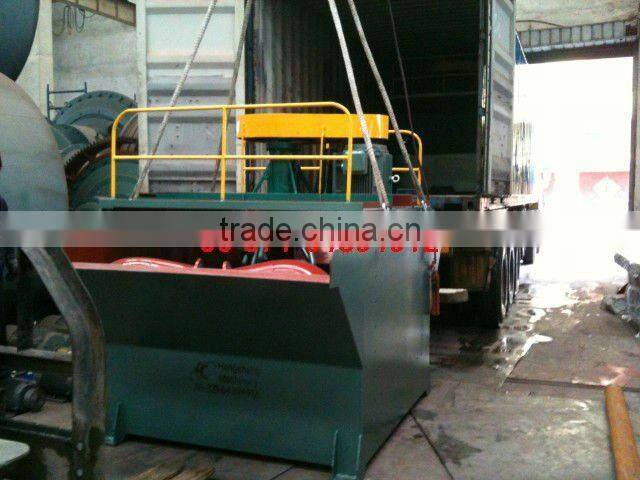

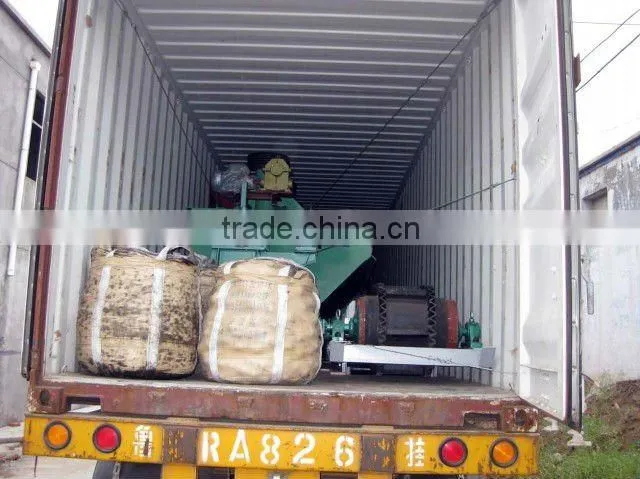

1,Standard export containers,bare main machine, motors and small parts are packed in wooden cases..
2.If you need special package ,we can do as your requirement.
Gongyi Hengchang Metallurgy Building Material EquipmentsPlant was built in 1992, is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas.
FAQ:
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.
Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.
Q: Do you provide after-sale service?
A: Yes. We have a professional after sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: Do you provide mineral processing flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis.
Q: Have you made the whole ore dressing lines?
A: Yes. We have made several large ore dressing lines at home and abroad.
If you are interested in our products or need more detail information, please don't hesitate to contact us.
