High Capacity Ball Mill Machine Plant for Sale

Introduction:

Ball mill is the key milling equipment after material has been crushed. it is widely used in mining, cement silicate, new construction material, refractory material, chemical ferilizer, ferrous metal and non-ferrous metal as well a ceramics, it is widely applied to dry or wet grinding for ores and grindable materials.

Features:

1) Cubic structure, small covering area, strong completeness

2) Even granularity of the finished products

3) Smooth transmission and reliable operation

4) High durablility of the whole machine

5) High wear proof ability increase the service life

6) Work for 24 hours continuously;

7) Save 3% energy; improve fineness;

Working Principle:

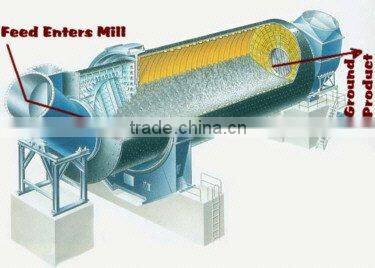

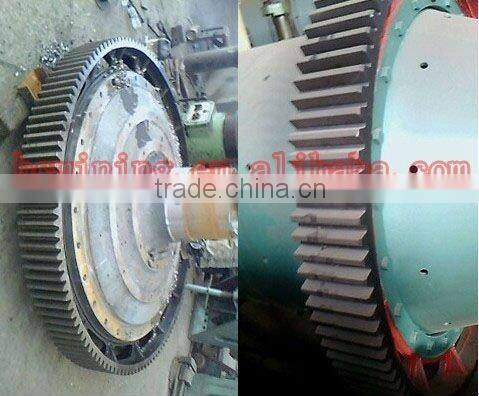

When the Ball Mill works, the torque force produced by motor and speed reducer drives big and small gears rotating, so foes the barrel. When the barrel rotates, steel balls or other grinding media in the barrel are lifted to a certain height and fall down freely, so materials in the barrel are impacted. Grinding media mixed with materials are impacted and grinded continuously. The final product will be discharged from outlet when it meets the request, so the grinding process is finished.

Technical Datas:

Model	Rotate Speed (r/min)	Max. ball  No (t)	Feed size(m)	Output size(mm)	Capacity(t/h)	Power (kw)	Weight (t)
YMQ750×1800	39	1.0	0-15	0.075-0.3	0.3-0.8	11	3.5
YMQ900×2100	37.8	1.5	0-15	0.075-0.3	0.8-2.1	15	5.2
YMQ1200×2800	37	5.2	0-20	0.075-0.3	1.2-6.2	30	10
YMQ1500×3500	29.7	8.0	0-25	0.075-0.3	2.8-9	75	17
YMQ1500×4500	29.7	9.5	0-25	0.075-0.3	2.8-10	90	20
YMQ1830×3600	25	11.5	0-25	0.075-0.3	5.2-25	130	28
YMQ1830×4500	25	16.5	0-25	0.075-0.3	5.2-30	155	32
YMQ2100×3600	24.6	17.4	0-25	0.075-0.3	6.5-40	180	41
YMQ2100×4500	24.6	22.5	0-25	0.075-0.3	6.5-42	210	46
YMQ2400×3600	22.4	23	0-25	0.075-0.3	7.2-92	210	65
YMQ2400×4500	22.4	28.5	0-25	0.075-0.3	7.2-95	245	72
YMQ2700×3600	20.7	40	0-25	0.075-0.3	12-145	320	80
YMQ2700×4500	20.7	50	0-25	0.075-0.3	12-155	380	90

Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.
