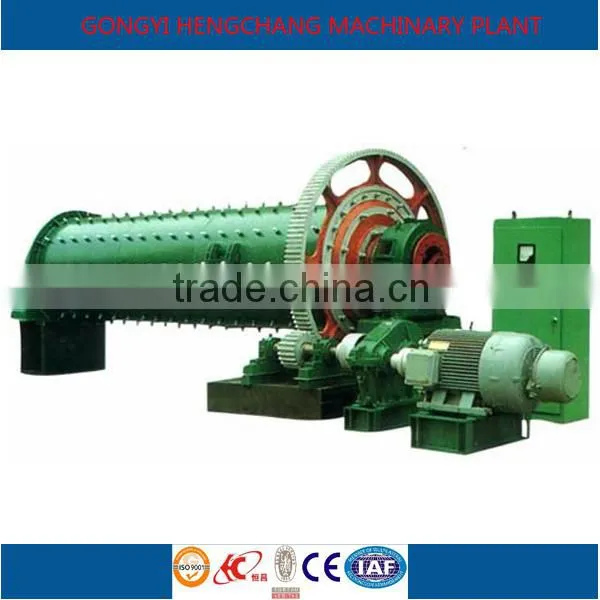

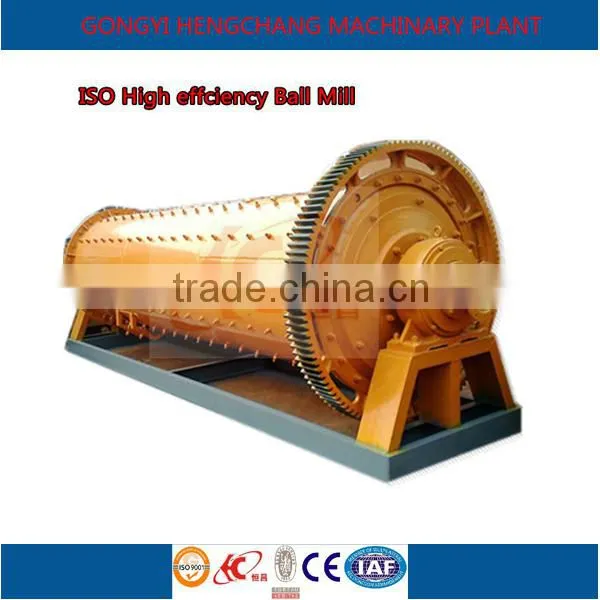

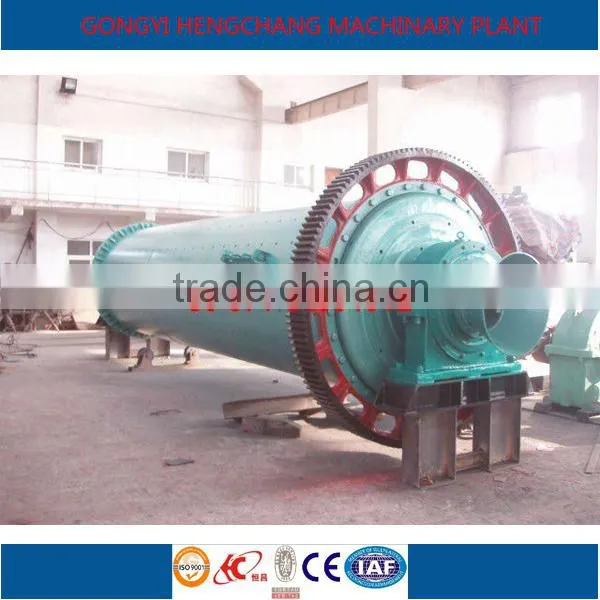

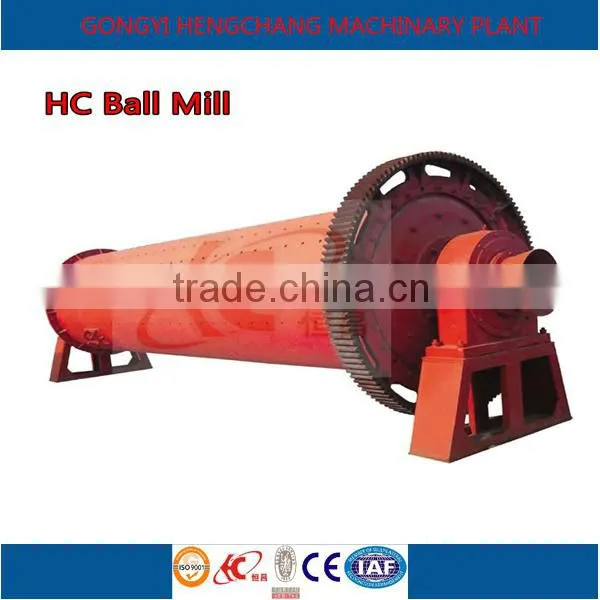

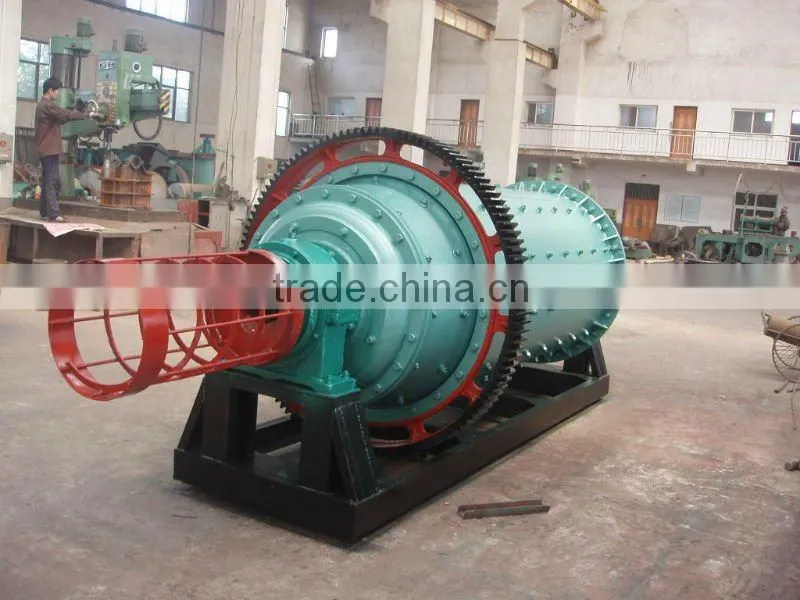

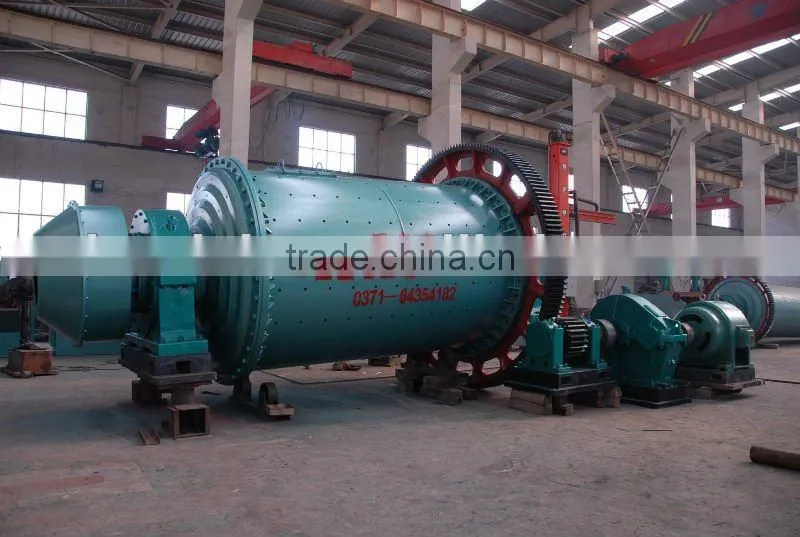

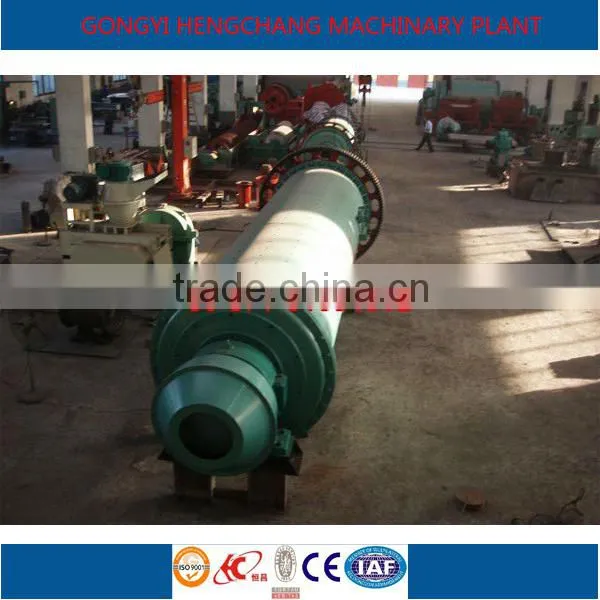

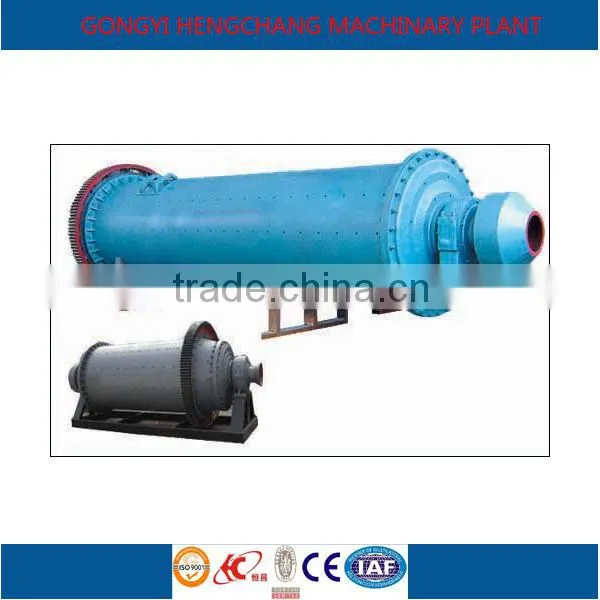

Professional ball mill machine line for sale
Introduction:
Ball mill is the key milling equipment after material has been crushed. it is widely used in mining, cement silicate, new construction material, refractory material, chemical ferilizer, ferrous metal and non-ferrous metal as well a ceramics, it is widely applied to dry or wet grinding for ores and grindable materials.
Features:
1) Cubic structure, small covering area, strong completeness
2) Even granularity of the finished products
3) Smooth transmission and reliable operation
4) High durablility of the whole machine
5) High wear proof ability increase the service life
6) Work for 24 hours continuously;
7) Save 3% energy; improve fineness;
Working Principle:
When the Ball Mill works, the torque force produced by motor and speed reducer drives big and small gears rotating, so foes the barrel. When the barrel rotates, steel balls or other grinding media in the barrel are lifted to a certain height and fall down freely, so materials in the barrel are impacted. Grinding media mixed with materials are impacted and grinded continuously. The final product will be discharged from outlet when it meets the request, so the grinding process is finished.
Technical Datas:
Model |
Rotate Speed (r/min) |
Max. ball No (t) |
Feed size(m) |
Output size(mm) |
Capacity(t/h) |
Power (kw) |
Weight (t) |
YMQ750×1800 |
39 |
1.0 |
0-15 |
0.075-0.3 |
0.3-0.8 |
11 |
3.5 |
YMQ900×2100 |
37.8 |
1.5 |
0-15 |
0.075-0.3 |
0.8-2.1 |
15 |
5.2 |
YMQ1200×2800 |
37 |
5.2 |
0-20 |
0.075-0.3 |
1.2-6.2 |
30 |
10 |
YMQ1500×3500 |
29.7 |
8.0 |
0-25 |
0.075-0.3 |
2.8-9 |
75 |
17 |
YMQ1500×4500 |
29.7 |
9.5 |
0-25 |
0.075-0.3 |
2.8-10 |
90 |
20 |
YMQ1830×3600 |
25 |
11.5 |
0-25 |
0.075-0.3 |
5.2-25 |
130 |
28 |
YMQ1830×4500 |
25 |
16.5 |
0-25 |
0.075-0.3 |
5.2-30 |
155 |
32 |
YMQ2100×3600 |
24.6 |
17.4 |
0-25 |
0.075-0.3 |
6.5-40 |
180 |
41 |
YMQ2100×4500 |
24.6 |
22.5 |
0-25 |
0.075-0.3 |
6.5-42 |
210 |
46 |
YMQ2400×3600 |
22.4 |
23 |
0-25 |
0.075-0.3 |
7.2-92 |
210 |
65 |
YMQ2400×4500 |
22.4 |
28.5 |
0-25 |
0.075-0.3 |
7.2-95 |
245 |
72 |
YMQ2700×3600 |
20.7 |
40 |
0-25 |
0.075-0.3 |
12-145 |
320 |
80 |
YMQ2700×4500 |
20.7 |
50 |
0-25 |
0.075-0.3 |
12-155 |
380 |
90 |
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.
