Home > Products > Sand/Stone Making Equipments > Energy-Saving cone ball grinding mill for sale
Energy-Saving cone ball grinding mill for sale
- 10 Set / Sets per Month
- Qingdao Shanghai Tianjin
- T/T Credit Card
Product Details
Condition: | New | Type: | Ball Mill | Motor Type: | AC Motor |
Power(W): | 11-380kw | Capacity(t/h): | 0.3-155t/h | Place of Origin: | Henan, China |
Brand Name: | Hengchang | Model Number: | YMQ | Dimension(L*W*H): | refers to catalogue |
Weight: | 3.5-90t | Certification: | ISO9001:2008 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

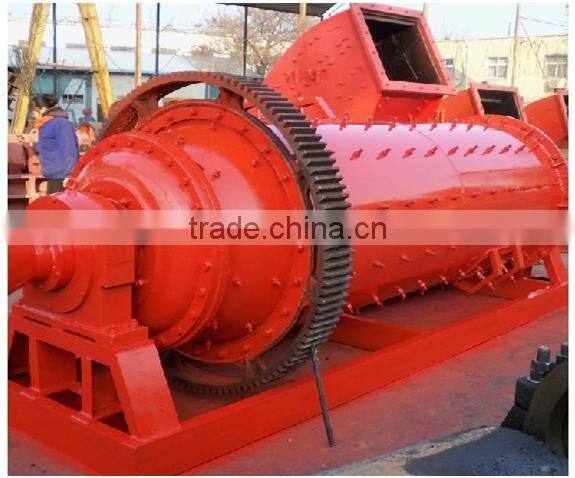

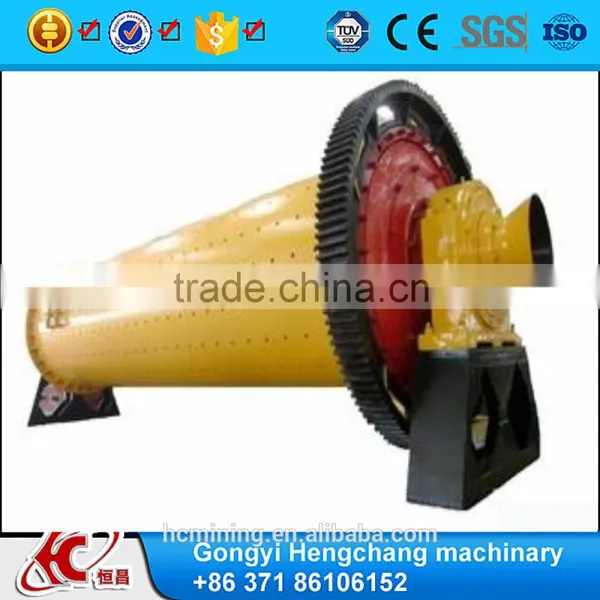

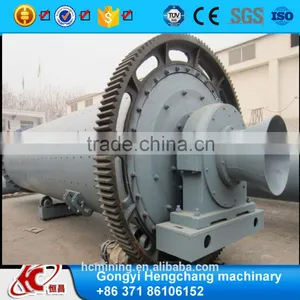

Energy-Saving cone ball grinding mill for sale
Introduction of Energy-Saving cone ball grinding mill :
Our factory’s Energy-Saving high efficient cone ball mill adopts automatic self-aligning double row centripetal spherical roller bearing, and has the advantages of smaller resistance and remarkable energy-saving effect. In the original cylinder discharging end, we strengthen a conical cylinder system, which increases the effective volume of the ball mill, and make the medium distribution more reasonable. The Energy-Saving Ball Mill are widely used in non-ferrous metal industry, ferrous metal industry, nonmetal mineral industry and chemical industry, and building materials industry for material grinding use.

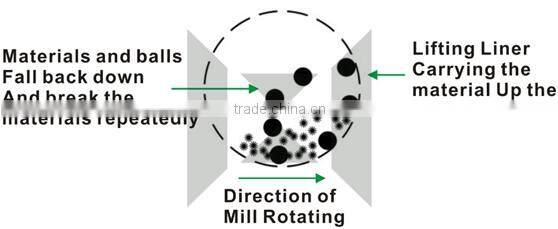

Working principal of ball mill:
The main body of the ball mill is a low-speed rotary cylinder mounted on two large bearings horizontally. The gold ore mill rotary part is driven at reducing speed by motor through speed reducer and gear wheel or by low-speed synchronous motor through gearwheel. Inside the cylinder feed proper grinding medium-steel balls. The medium will be lifted to certain height under the action of centrifugal force and friction and drop or fall. The material to grind is fed to the cylinder in succession and crushed by grinding medium, then discharged through overflow and continual feeding force, and enter the next procedure.
Ball mill is used to grind gold, calcite, potash feldspar, talcum, marble, limestone, cream and slag below scale 7 of Moths hardness and 280-odd sorts of non-inflammable and non-explosive stuff in the traded of mining, building material, chemical engineering and metallurgy for power generation and processing. The product size is adjustable on required in the range of 100-325 meshes.
1) Cubic structure, small covering area, strong completeness
2) Even granularity of the finished products
3) Smooth transmission and reliable operation
4) High durablility of the whole machine
5) High wear proof ability increase the service life
6) Work for 24 hours continuously;
7) Save 3% energy; improve fineness;

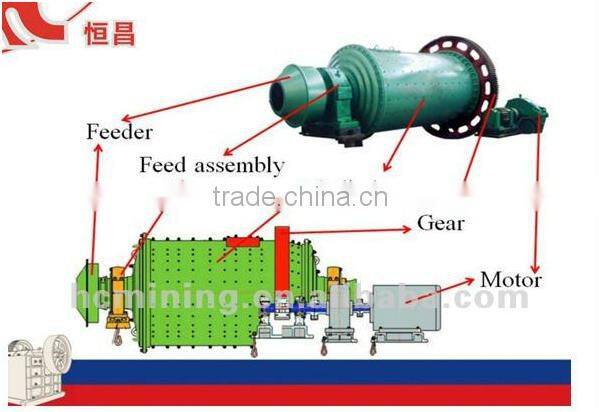

Structure:
Gongyi Hengchang Metallurgical Building Material Equipments Plant is professional manufacturer of ball mill, and complete beneficiation plant for mineral ore. We provide flow chart free design service, can design 50-2000 ton/day turnkey project for mineral ore beneficiation.
Technical Datas:
Model | Rotate Speed (r/min) | Max. ball No (t) | Feed size(m) | Output size(mm) | Capacity(t/h) | Power (kw) | Weight (t) |
YMQ750×1800 | 39 | 1.0 | 0-15 | 0.075-0.3 | 0.3-0.8 | 11 | 3.5 |
YMQ900×2100 | 37.8 | 1.5 | 0-15 | 0.075-0.3 | 0.8-2.1 | 15 | 5.2 |
YMQ1200×2800 | 37 | 5.2 | 0-20 | 0.075-0.3 | 1.2-6.2 | 30 | 10 |
YMQ1500×3500 | 29.7 | 8.0 | 0-25 | 0.075-0.3 | 2.8-9 | 75 | 17 |
YMQ1500×4500 | 29.7 | 9.5 | 0-25 | 0.075-0.3 | 2.8-10 | 90 | 20 |
YMQ1830×3600 | 25 | 11.5 | 0-25 | 0.075-0.3 | 5.2-25 | 130 | 28 |
YMQ1830×4500 | 25 | 16.5 | 0-25 | 0.075-0.3 | 5.2-30 | 155 | 32 |
YMQ2100×3600 | 24.6 | 17.4 | 0-25 | 0.075-0.3 | 6.5-40 | 180 | 41 |
YMQ2100×4500 | 24.6 | 22.5 | 0-25 | 0.075-0.3 | 6.5-42 | 210 | 46 |
YMQ2400×3600 | 22.4 | 23 | 0-25 | 0.075-0.3 | 7.2-92 | 210 | 65 |
YMQ2400×4500 | 22.4 | 28.5 | 0-25 | 0.075-0.3 | 7.2-95 | 245 | 72 |
YMQ2700×3600 | 20.7 | 40 | 0-25 | 0.075-0.3 | 12-145 | 320 | 80 |
YMQ2700×4500 | 20.7 | 50 | 0-25 | 0.075-0.3 | 12-155 | 380 | 90 |
Packaging Details of ball mill:
1,Standard export containers,bare main machine, motors and small parts are packed in wooden cases..
2.If you need special package ,we can do as your requirement.

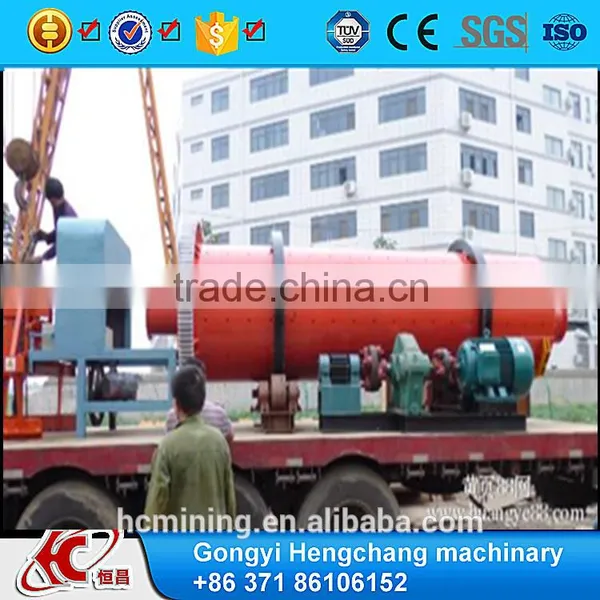

Delivery Detail of ball mill:
Ball Mill can be delivered about 30 days.
Installation and guidance:
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client’s factory. Allowance is about 70USD per day
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
Three guarantees of our product quality, warranty for one year (not include manmade damaged). We will maintain the machine for free for the quality problem.
If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the life-long follow-up service.

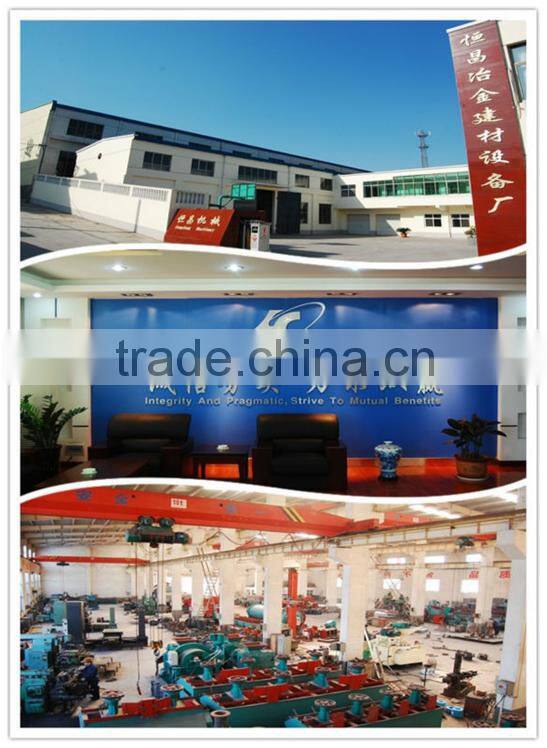

Gongyi Hengchang Metallurgy Building Material EquipmentsPlant was built in 1992, is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.
We look forward to new and old customers come to visit, study, trade negotiations, and we would like to cooperate and develop with you!
