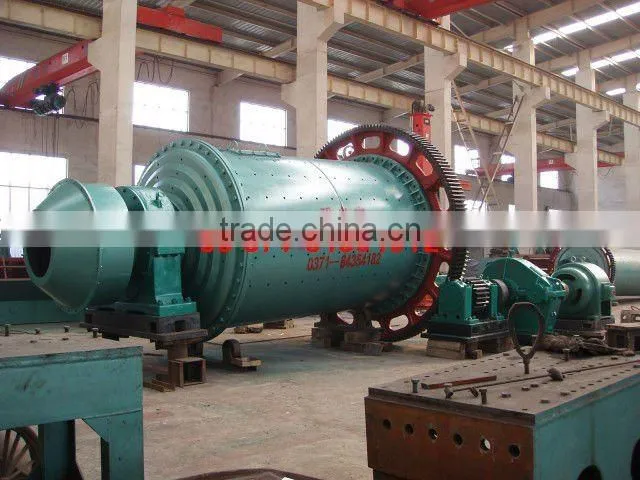

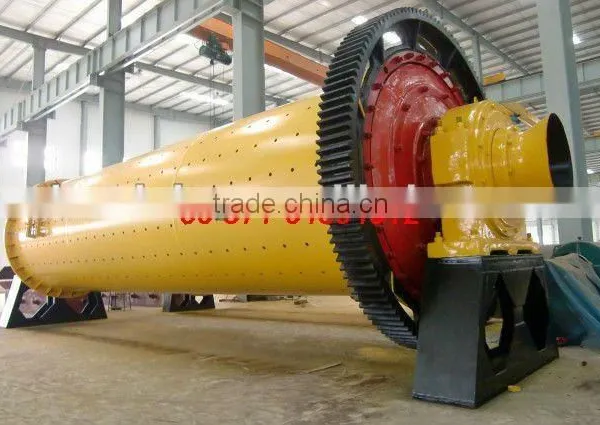

Gold processing plant----gold mill plant
Gold processing plant----gold mill plant introduction:
Gold processing plant----gold mill plant is an efficient tool for grinding many materials into fine powder. It is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process.
Gold processing plant----gold mill plant application:
The gold processing plant---gold mill plant is a key equipment for regrinding. It is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc. Our ball mill can grind ore or other materials that can be grinded either by wet process or by dry process.
Gold processing plant----gold mill plant working principle:
This gold processing plant-----gold mill plant is horizontal type and tubular running device, has two warehouses. This machine is grid type and its outside runs along gear. The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device. In this warehouse , there is a ladder scaleboard or ripple scaleboard, and different specification steel balls are installed on the scaleboard, when the barrel body rotates and then produces centrifugal force ,at this time , the steel ball is carried tosome height and falls to make the material grinding and striking.
Gold processing plant----gold mill plant technical parameter:
Model |
Barrel |
Speed |
Capacity |
Feed size |
Output size |
Output |
Motor |
weight |
||
Dia. |
Length |
Type |
Power |
|||||||
YMQG900×1800 |
900 |
1800 |
38 |
1.8 |
0-25 |
0.075-0.6 |
0.44-2.4 |
Y180L-6 |
15 |
4.2 |
YMQG900×3000 |
900 |
3000 |
38 |
2.5 |
0-25 |
0.075-0.6 |
0.7-2.9 |
Y180L-6 |
18.5 |
5.4 |
YMQG1200×2400 |
1200 |
2400 |
37 |
4.8 |
0-25 |
0.075-0.6 |
0.4-5.8 |
Y225M-6 |
30 |
8.2 |
YMQG1200×4500 |
1200 |
4500 |
37 |
5.2 |
0-25 |
0.075-0.6 |
1.4-5 |
Y280M-6 |
55 |
11 |
YMQG1500×3000 |
1500 |
3000 |
29 |
10 |
0-25 |
0.075-0.4 |
2.8-9 |
Y315S-6 |
75 |
16.3 |
YMQG1500×5700 |
1500 |
5700 |
29 |
12 |
0-25 |
0.075-0.4 |
3.1-7 |
Y315M-6 |
90 |
20.7 |
YMQG1830×6400 |
1830 |
6400 |
23.9 |
18.5 |
0-25 |
0.075-0.4 |
6-8.5 |
JR138-8 |
210 |
35.1 |
YMQG1830×7000 |
1830 |
7000 |
23.9 |
21 |
0-25 |
0.075-0.4 |
6-7 |
JR138-8 |
245 |
38 |
YMQG2200×6500 |
2200 |
6500 |
21.4 |
31 |
0-25 |
0.075-0.4 |
14-15 |
JR158-8 |
380 |
50 |
YMQG2200×7000 |
2200 |
7000 |
21.4 |
34.5 |
0-25 |
0.075-0.4 |
14-15 |
JR158-8 |
380 |
67.6 |
