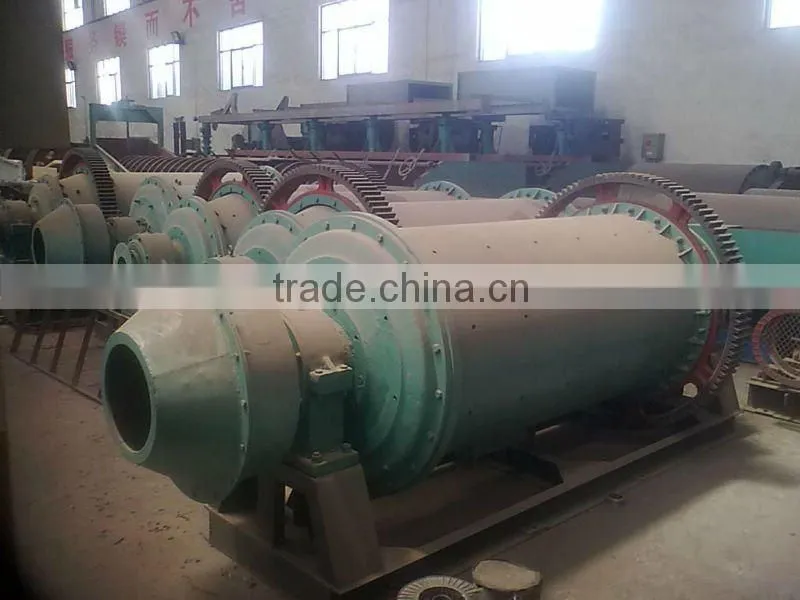

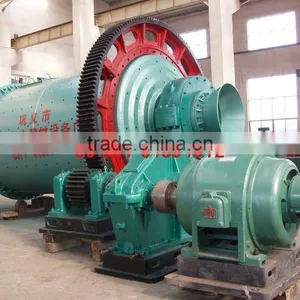

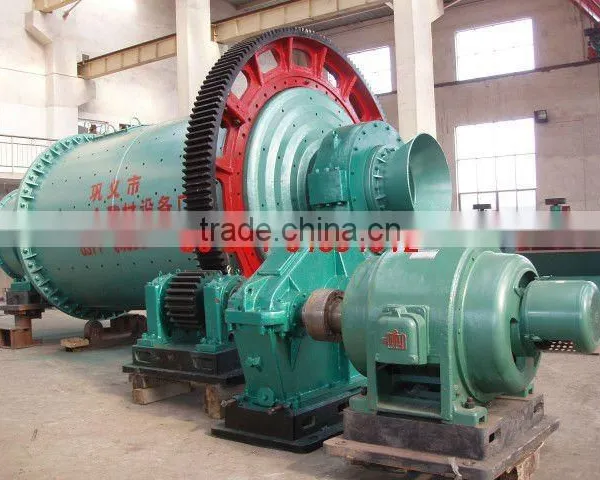

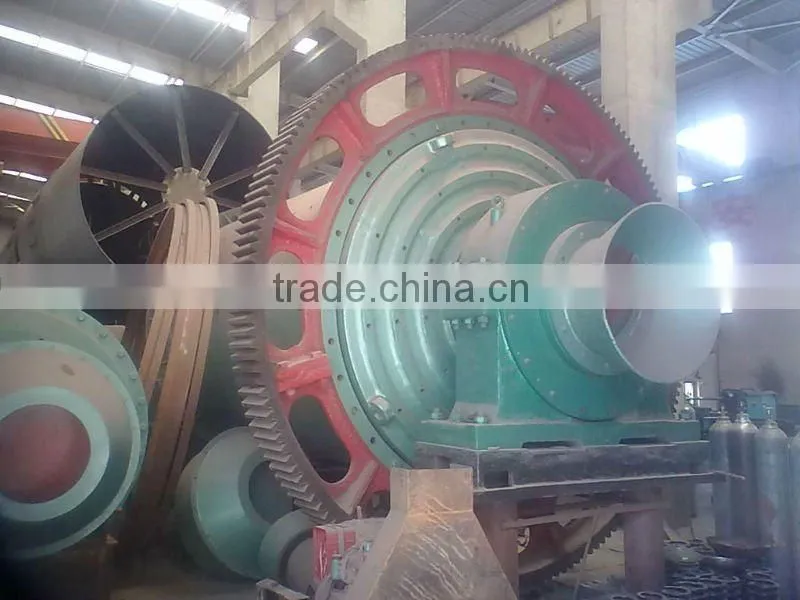

Lead ore processing equipment
Lead ore processing equipment introduction:
Lead ore processing equipment is an efficient tool for grinding many materials into fine powder. Lead ore processing equipment is used to grind many kinds of mine and other materials, or to select the mine. Lead ore processing equipment is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process.
Lead ore processing equipment application:
Lead ore processing equipment is a key equipment for regrinding. Lead ore processing equipment is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc. Our lead ore processing equipment can grind ore or other materials that can be grinded either by wet process or by dry process.
Lead ore processing equipment working principle:
Lead ore processing equipment is horizontal type and tubular running device, has two warehouses. This machine is grid type and its outside runs along gear. The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device. In this warehouse , there is a ladder scaleboard or ripple scaleboard, and different specification steel balls are installed on the scaleboard, when the barrel body rotates and then produces centrifugal force ,at this time , the steel ball is carried tosome height and falls to make the material grinding and striking.
Lead ore processing equipment technical parameter:
Model |
Barrel |
Speed |
Capacity |
Feed size |
Output size |
Output |
Motor |
weight |
||
Dia. |
Length |
Type |
Power |
|||||||
YMQG900×1800 |
900 |
1800 |
38 |
1.8 |
0-25 |
0.075-0.6 |
0.44-2.4 |
Y180L-6 |
15 |
4.2 |
YMQG900×3000 |
900 |
3000 |
38 |
2.5 |
0-25 |
0.075-0.6 |
0.7-2.9 |
Y180L-6 |
18.5 |
5.4 |
YMQG1200×2400 |
1200 |
2400 |
37 |
4.8 |
0-25 |
0.075-0.6 |
0.4-5.8 |
Y225M-6 |
30 |
8.2 |
YMQG1200×4500 |
1200 |
4500 |
37 |
5.2 |
0-25 |
0.075-0.6 |
1.4-5 |
Y280M-6 |
55 |
11 |
YMQG1500×3000 |
1500 |
3000 |
29 |
10 |
0-25 |
0.075-0.4 |
2.8-9 |
Y315S-6 |
75 |
16.3 |
YMQG1500×5700 |
1500 |
5700 |
29 |
12 |
0-25 |
0.075-0.4 |
3.1-7 |
Y315M-6 |
90 |
20.7 |
YMQG1830×6400 |
1830 |
6400 |
23.9 |
18.5 |
0-25 |
0.075-0.4 |
6-8.5 |
JR138-8 |
210 |
35.1 |
YMQG1830×7000 |
1830 |
7000 |
23.9 |
21 |
0-25 |
0.075-0.4 |
6-7 |
JR138-8 |
245 |
38 |
YMQG2200×6500 |
2200 |
6500 |
21.4 |
31 |
0-25 |
0.075-0.4 |
14-15 |
JR158-8 |
380 |
50 |
YMQG2200×7000 |
2200 |
7000 |
21.4 |
34.5 |
0-25 |
0.075-0.4 |
14-15 |
JR158-8 |
380 |
67.6 |
