Product Details
Condition: | New | Type: | Other, Density separator | Production Capacity: | 1.2-10 ton/hour ton/hour |
Place of Origin: | Henan, China | Brand Name: | HC | Model Number: | LX series |
Voltage: | refer to the specification | Power(W): | 3-22 kw | Dimension(L*W*H): | according to different models |
Weight: | 1100-12000 kg | Certification: | ISO9001,CE,BV,SGS | Warranty: | one year except the wearing parts |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Gold separator gold centrifugal concentrator:
General introduction of gold centrifugal concentrator:
LX centrifugal separator is a new type of centrifugal concentration equipment which does the separation according to different particles density of ore.
Features of gold centrifugal concentrator:
♥ Good beneficiation index,
♥ High recovery rate for fine sizes,
♥ Low energy consumption
♥ No pollutions.
Application of gold centrifugal concentrator:
Centrifugal separator is applied to process gold, wolframite, lead, tin, manganese, iron, etc, especially used in gold processing line. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.
Technical parameters of gold centrifugal concentrator:
Model | Drum Dia (mm) | Drum Slope (°) | Drum Speed (r/min) | Input Size (mm) | Input Thickness (%) | Capacity (m3/h) | Power (kw) | Weight (kg) |
LX-800*600 (Rough) | 800 | 4 | 450 | -0.074 | 15-25 | 1.2-1.5 | 3 | 1100 |
LX-800*600 (Fine) | 800 | 5 | 380 | -0.074 | 15-25 | 1.2-1.5 | 3 | 1100 |
LX-1600 | 1600 | 5 | 105-405 | -0.074 | 15-25 | 1.5-4.5 | 11 | 4500 |
LX-2000 | 2000 | 5 | 105-405 | -0.074 | 15-25 | 6-7.5 | 17 | 7500 |
LX-2400 | 2400 | 5 | 105-405 | -0.074 | 15-25 | 5-10 | 22 | 12000 |
Pictures of gold centrifugal concentrator:

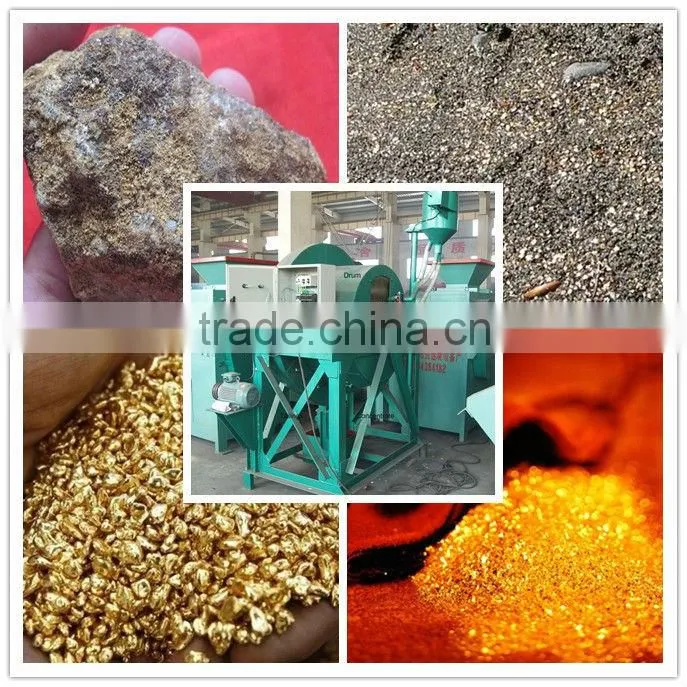

The final products of gold centrifugal concentrator

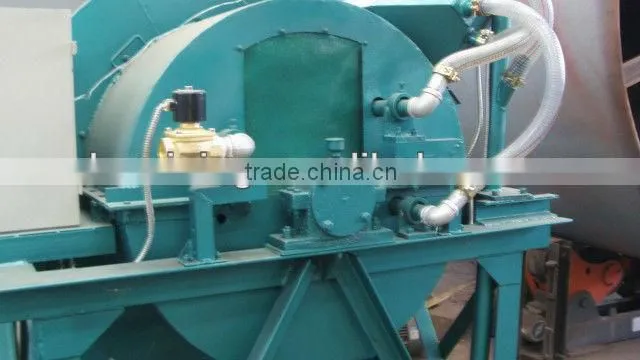

Parts of gold centrifugal concentrator

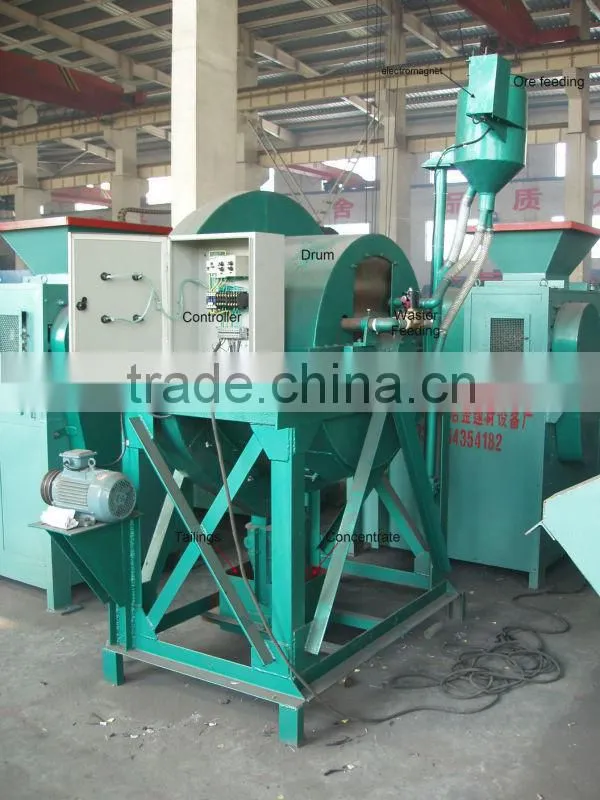

Gold centrifugal concentrator before painting

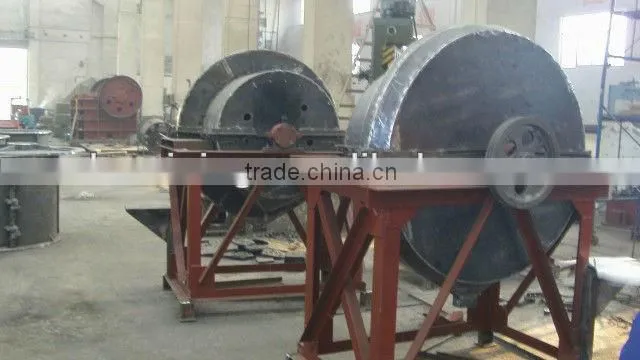

All parts of gold centrifugal concentrator

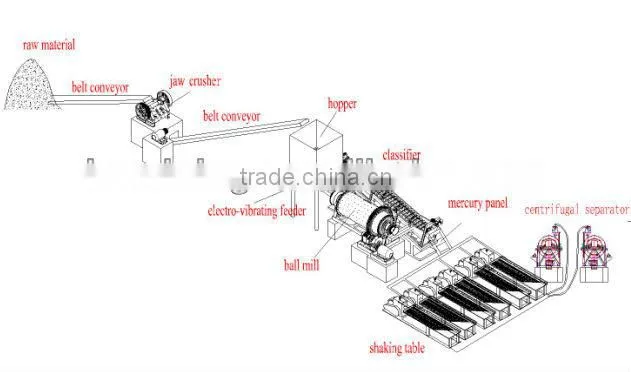

Beneficiation process
