Different capacity coal slime drying machine
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, a professional manufacturer specializing in the production of quartz sand dryer ,silica sand drying equipmen ,silica drier ,river sand dryer ,river sand drier ,sea sand dryer.sea sand drier , yellow sand dryer ,yellow sand drier ,quartz sand dryer coal slime dryer , coal dryer ,sawdust dryer , fly ash dryer , slag dryer ,vinasse dryer and so on .
Introduction of coal slime drying machine :
The dryer is formed by stove, rotary body, raising plate, feeder, driving device, supporting device and sealing ring, cylone and fan.
1. Features of coal slime drying machine:
1.Wide applicability, available for many kinds of materials.
2.Simple operation, stable performance;
3.Low investment, high efficient and capacity;
4.Low cost in maintenance
2. Working principle of coal slime drying machine
The raw material plate is arranged conveniently to allow adjustable angle positions. The material to be dried is inserted to the rotary cylinder through the raw material plate. Hot air flows within the cylinder causing the separation of water from the material by converting it into vapor which is discharged into the atmosphere. At this point, the material becomes dry.
Technical Parameters of coal slime drying machine:
Model (mm) |
Speed(r/min) |
Slope(%) |
Inlet Air Temperature(°C) |
Power(kw) |
Capacity(t/h) |
Weight(t) |
800×8000 |
3-8 |
3-5 |
≤700 |
4 |
0.8-2 |
3.5 |
1000×10000 |
3-8 |
3-5 |
≤700 |
5.5 |
1-3 |
5.6 |
1200×10000 |
3-8 |
3-5 |
≤700 |
7.5 |
2-3.5 |
13.5 |
1200×12000 |
3-8 |
3-5 |
≤700 |
11 |
2.5-4 |
14.2 |
1500×12000 |
2-6 |
3-5 |
≤800 |
11 |
4-6 |
18.5 |
1500×15000 |
2-6 |
3-5 |
≤800 |
18.5 |
5-8 |
21 |
1800×18000 |
2-6 |
3-5 |
≤800 |
18.5 |
6-12 |
31 |
2000×18000 |
1.5-6 |
3-5 |
≤800 |
22 |
8-15 |
35 |
2200×12000 |
1.5-6 |
3-5 |
≤800 |
22 |
13-15 |
31.6 |
2200×14000 |
1.5-6 |
3-5 |
≤800 |
22 |
14-16 |
33.5 |
2200×16000 |
1.5-6 |
3-5 |
≤800 |
30 |
14-18 |
36 |
2400×18000 |
1.5-6 |
3-5 |
≤800 |
45 |
16-22 |
42.8 |
2400×20000 |
1.5-6 |
3-5 |
≤800 |
45 |
18-25 |
52 |
3000×20000 |
1.5-6 |
3-5 |
≤800 |
55 |
25-30 |
77.8 |
3000×25000 |
1.5-6 |
3-5 |
≤800 |
55 |
28-34 |
87.5 |

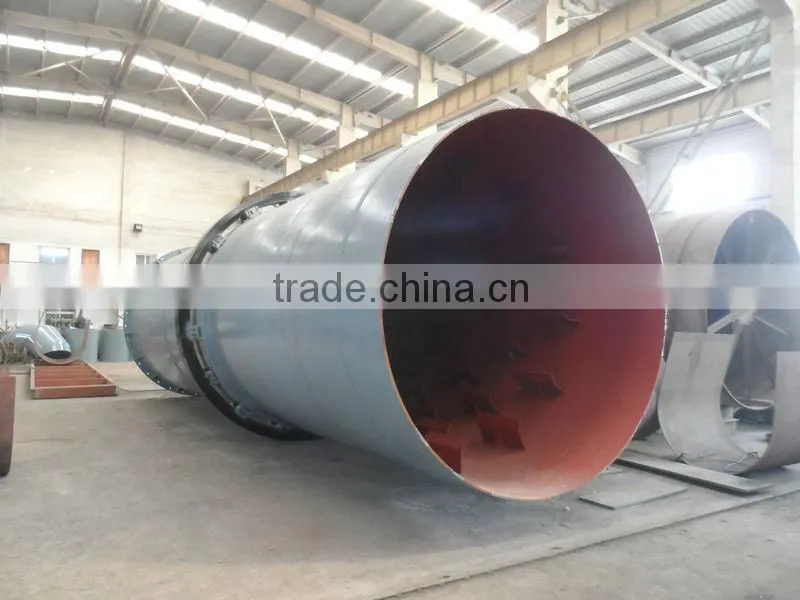

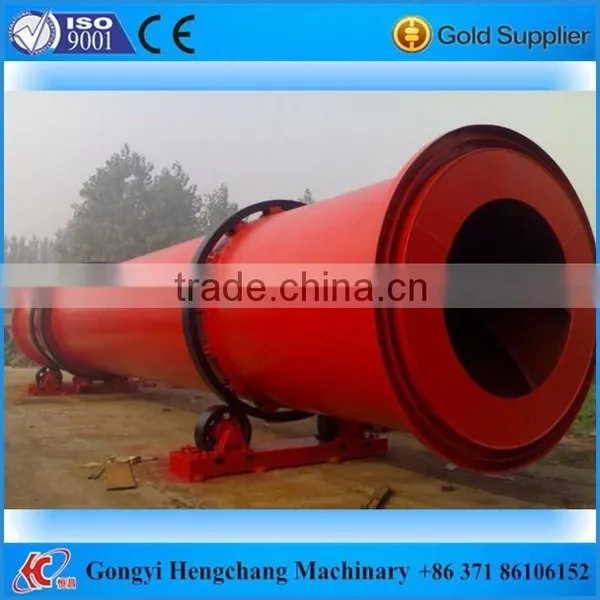

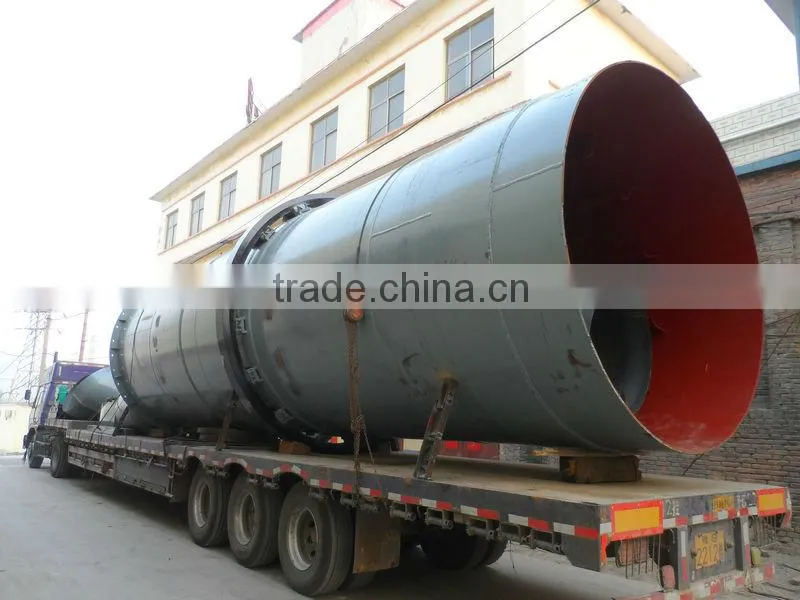

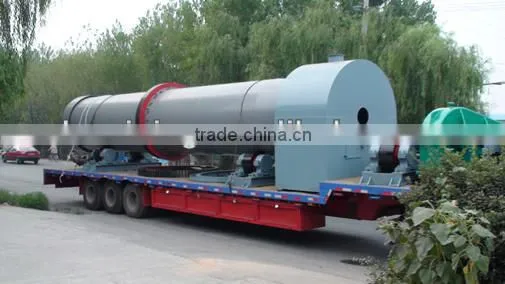

Our different models of coal slime drying machines :
Factoy and application site:
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.
Certification and honors:
Our international customers:
Service commitment
Pre-sales service:
to provide you the project design, process design, suitable for your machine equipment purchase plan, according to your special needs, design and manufacture of products, for your training technical personnel.
Sale of services:
to accompany you to complete the equipment acceptance, to assist in the formulation of construction scheme and detailed process.
After sale service:
the company sent technical personnel to the scene to guide the installation, debugging and training of operators.
24-hour service, including holidays service.
Any inquiry can contect me! Welcom to visit our factory!
