Hengchang manufacturer supplying wood chips rotary dryer with ISO9001 & CE quality:
It is widely used in building materials, metallurgy, chemicals, coal, fertilizer industries to dry the materials with certain humidity or guanularity. The rotary dryer can be used for the drying of many rotary kiln dryer for sale materials,such as the coal slurry, the metal powder the building industry. and many other industry. Generally speaking it can dry the material from 30-40% humidity to 1-5% humidity. According to the different characteristic of the material, the model of the rotary dryer it use will be a little bit different.
To introduce the appropriate model for you, please tell me:
1. What's the raw materials?
2. What's the material moistrue before drying?
3. What's the final moisture after drying?
4. What's the required capacity(tons per hour)?
The wet materials are conveyed to the hopper through the belt conveyor or bucket elevator, and then enter into the feed end through the hopper charger and the feeding pipe in sequence. The inclination of the feeding pipe must be greater than the natural inclination of materials in order to make the materials flow into the dryer smoothly. The dryer cylinder with slight inclination with the horizontal line. The materials enter from the higher end, and the heat carrier enters from the lower ender; the two contact each other from opposite directions, but there are also circumstances that the heat carrier flows into the dryer body together with the material.
Model (mm) |
Speed(r/min) |
Slope(%) |
Inlet Air Temperature(°C) |
Power(kw) |
Capacity(t/h) |
Weight(t) |
Φ800×8000 |
3-8 |
3-5 |
≤700 |
4 |
0.8-2 |
3.5 |
Φ1000×10000 |
3-8 |
3-5 |
≤700 |
5.5 |
1-3 |
5.6 |
Φ1200×10000 |
3-8 |
3-5 |
≤700 |
7.5 |
2-3.5 |
13.5 |
Φ1200×12000 |
3-8 |
3-5 |
≤700 |
11 |
2.5-4 |
14.2 |
Φ1500×12000 |
2-6 |
3-5 |
≤800 |
11 |
4-6 |
18.5 |
Φ1500×15000 |
2-6 |
3-5 |
≤800 |
18.5 |
5-8 |
21 |
Φ1800×18000 |
2-6 |
3-5 |
≤800 |
18.5 |
6-12 |
31 |
Φ2000×18000 |
1.5-6 |
3-5 |
≤800 |
22 |
8-15 |
35 |
Φ2200×12000 |
1.5-6 |
3-5 |
≤800 |
22 |
13-15 |
31.6 |
Φ2200×14000 |
1.5-6 |
3-5 |
≤800 |
22 |
14-16 |
33.5 |
Φ2200×16000 |
1.5-6 |
3-5 |
≤800 |
30 |
14-18 |
36 |
Φ2400×18000 |
1.5-6 |
3-5 |
≤800 |
45 |
16-22 |
42.8 |
Φ2400×20000 |
1.5-6 |
3-5 |
≤800 |
45 |
18-25 |
52 |
Φ3000×20000 |
1.5-6 |
3-5 |
≤800 |
55 |
25-30 |
77.8 |
Φ3000×25000 |
1.5-6 |
3-5 |
≤800 |
55 |
28-34 |
87.5 |
Packing:
1. Load into container
2. Spare parts will be pack into wooden case or bags

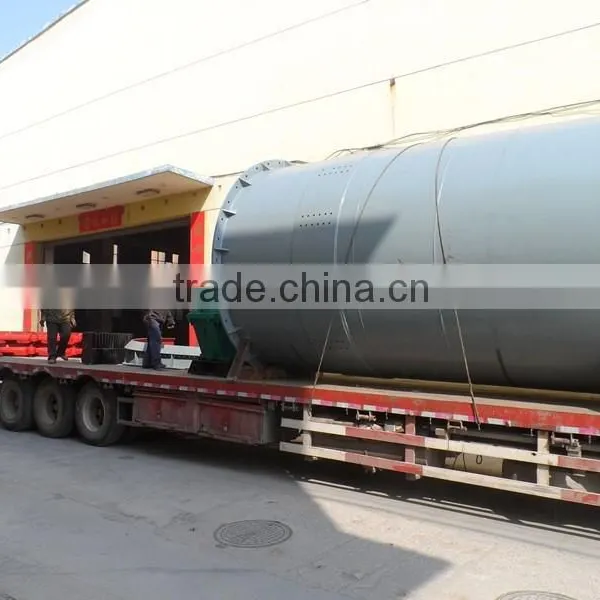

Shipping:
1. Sea or train delivery
2. Spare parts can be delivered by air
Gongyi Hengchang Metallurgy Building Material Equipments plant is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.
If you are interested in our product, pls contact me:
