Help CenterSand Rotary Dryer Sand Dryer Machine ISO 9001
Related Products
-
Good Design and Professional Sawdust Rotary DryerUS$ 1,000 - 33,333MOQ: 1 Set -
2015 Coal Rotary Dryer With ISO9001 and CE CertificateUS$ 10,000 - 200,000MOQ: 1 Set
-
2015 China Hengchang Brand Rotary Dryer for SaleUS$ 10,000 - 200,000MOQ: 1 Set
-
2015 Low Noise Sand Rotary Dryer for SaleUS$ 10,000 - 200,000MOQ: 1 Set
-
China Manufacturer Certification Approval High Quality Coal Powder Rotary DryersUS$ 2,000 - 200,000MOQ: 1 Set

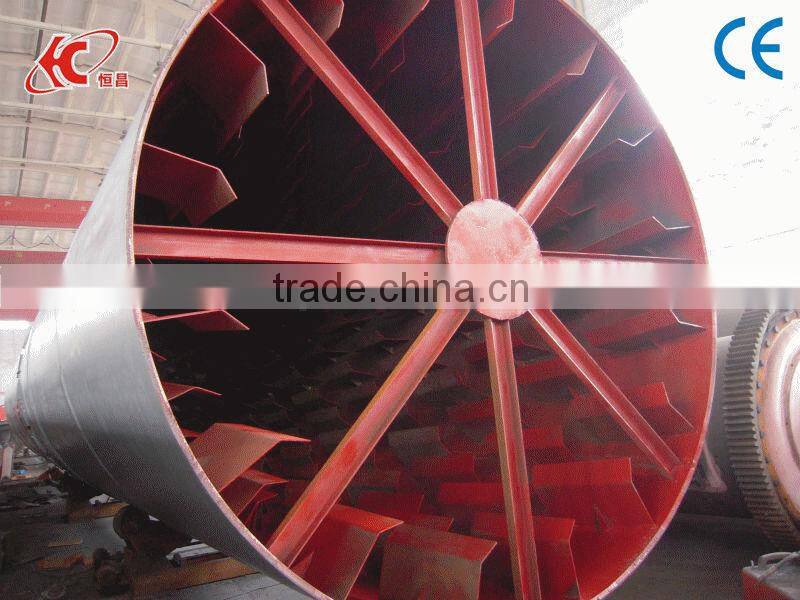

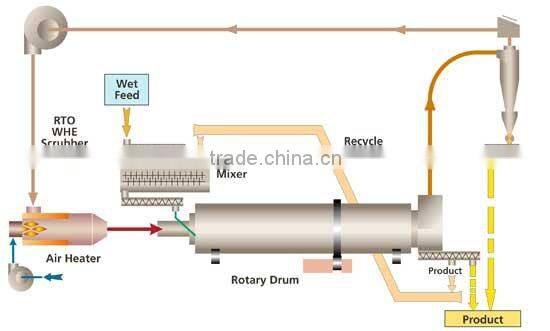

Rotary Dryer Material to be dried enters the drier, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot gas stream as it falls. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow). The gas stream can be made up of a mixture of air and combustion gases from a burner, in which case the dryer is called a direct heated dryer. Alternatively, the gas stream may consist of air or another (sometimes inert) gas that is preheated. When the gas stream is preheated by some means where burner combustion gases do not enter the dryer, the dryer known as an indirect-heated type. Often, indirect heated dryers are used when product contamination is a concern.
1.High efficiency, low energy consumption
2.Long service life.
3.ISO9001:2008 certificate
Technical Parameters
Model (mm) |
Speed(r/min) |
Slope(%) |
Inlet Air Temperature(°C) |
Power(kw) |
Capacity(t/h) |
Weight(t) |
800×8000 |
3-8 |
3-5 |
≤700 |
4 |
0.8-2 |
3.5 |
1000×10000 |
3-8 |
3-5 |
≤700 |
5.5 |
1-3 |
5.6 |
1200×10000 |
3-8 |
3-5 |
≤700 |
7.5 |
2-3.5 |
13.5 |
1200×12000 |
3-8 |
3-5 |
≤700 |
11 |
2.5-4 |
14.2 |
1500×12000 |
2-6 |
3-5 |
≤800 |
11 |
4-6 |
18.5 |
1500×15000 |
2-6 |
3-5 |
≤800 |
18.5 |
5-8 |
21 |
1800×18000 |
2-6 |
3-5 |
≤800 |
18.5 |
6-12 |
31 |
2000×18000 |
1.5-6 |
3-5 |
≤800 |
22 |
8-15 |
35 |
2200×12000 |
1.5-6 |
3-5 |
≤800 |
22 |
13-15 |
31.6 |
2200×14000 |
1.5-6 |
3-5 |
≤800 |
22 |
14-16 |
33.5 |
2200×16000 |
1.5-6 |
3-5 |
≤800 |
30 |
14-18 |
36 |
2400×18000 |
1.5-6 |
3-5 |
≤800 |
45 |
16-22 |
42.8 |
2400×20000 |
1.5-6 |
3-5 |
≤800 |
45 |
18-25 |
52 |
3000×20000 |
1.5-6 |
3-5 |
≤800 |
55 |
25-30 |
77.8 |
3000×25000 |
1.5-6 |
3-5 |
≤800 |
55 |
28-34 |
87.5 |

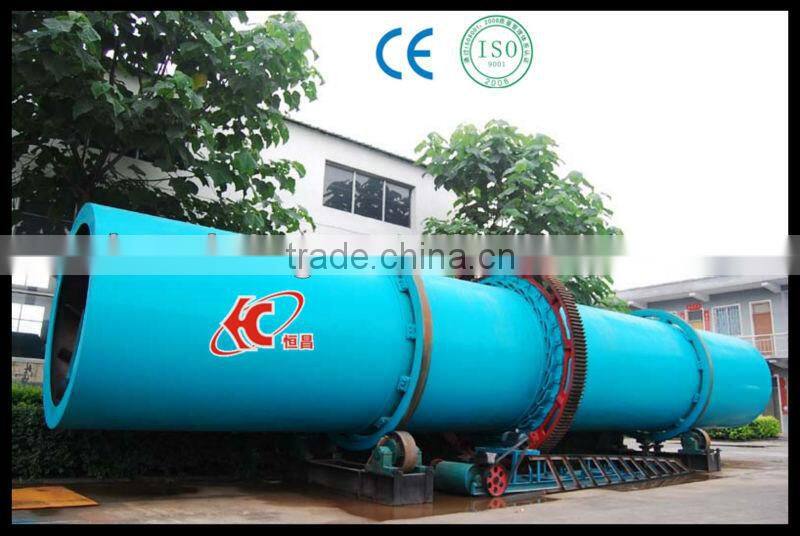

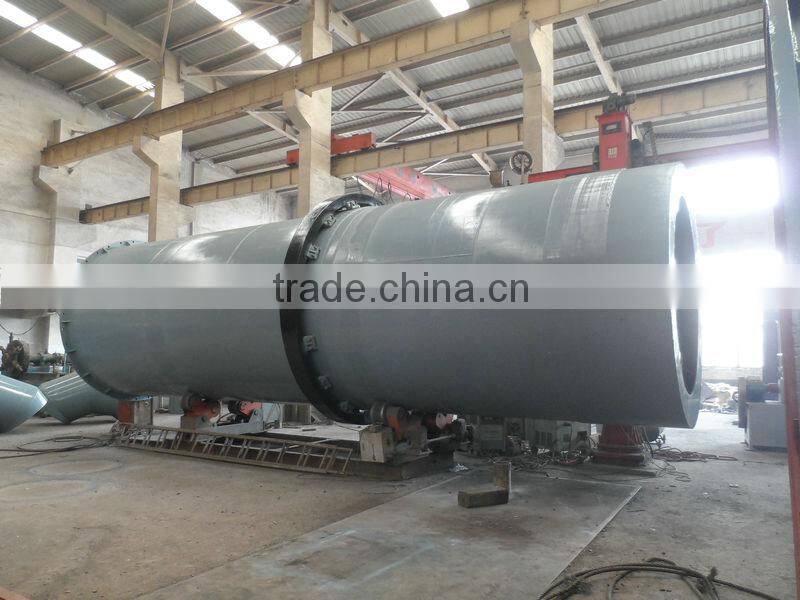

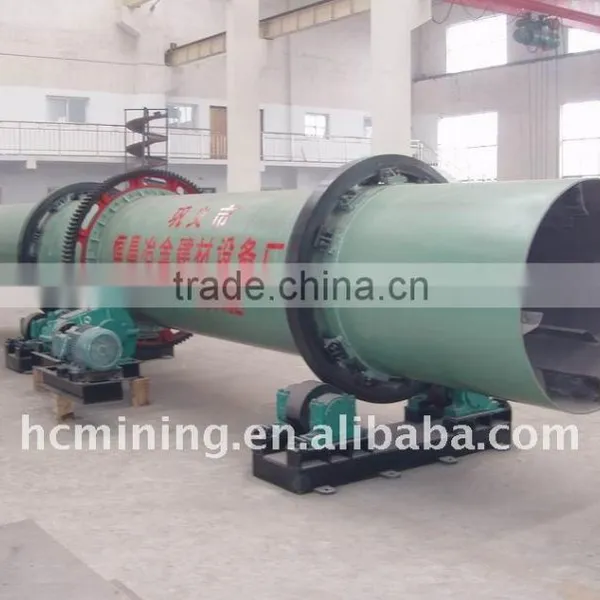

Different Models of our rotary drum dryer:
