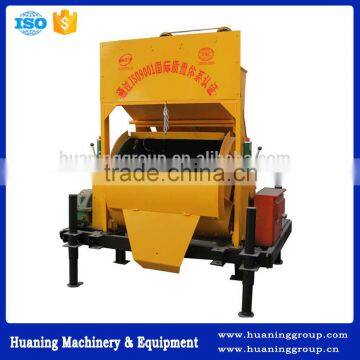

Top Quality JDC350 Horizontal Single Shaft Concrete Mixer for sale

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Model Number	JDC350	Mixing Power	15kw
Charging Capacity	560L	Reclaiming capacity	350L
Speed of Mixing Drum	25r/min	Water Supply Mode	water pump
Working Cycle Period	72s	Discharge Way	Pneumatic or hydraulic discharge
Outline Dimension	415027003150mm	After-sales Service Provided	Engineers available to service machinery overseas

Top Quality JDC350 Horizontal Singe Shaft Concrete Mixer

Brief Introduction of JDC350 Horizontal Single Shaft Concrete Mixer

JDC350 concrete mixer is a single shaft forced concrtee mixer. It can mix plastic concrete, dry rigid concrete, lihtweight aggregate concrete and various mortar. And it discharge quickly with electric door type.
The mixing system is driven by cylindrical gears, and the drive is very reliable. Feeding mechanism adopts lifting motor with high safety.
The Concrete Mixer can work together with the batching machine to form a small mixing plant.
JDC Single Shaft Concrete Mixer is applied in a variety of construction sites, small and medium construction projects, precast concrete factories.

Features of JDC350 Horizontal Single Shfat Concrete Mixer

Equip with single shaft end sealing protection device and wind pressure sealing protection device and effectively and absolutely avoid leakage;
Monitoring system of mixer can monitor working condition of reduction box, discharge pump and lubricating pump;
Equip with special-purpose motor lubricate oil pump, and four separate pump core respectively feeds oil to four axial heads directly, without using by-pass valve;
Multi pipes & way water injecting system can make sure that water can injected uniformly;
Heavy design and stable running.

Main Technical Parameters of JDC350 Horizontal Single Shaft Concrete Mixer

Model	JDC350	JDC500
Discharge Capacity (L)	350	500
Feeding Capacity (L)	560	800
Theoretical Productivity (m3/h)	15-20	20-30
Max. aggregate Size: Pebble/Gravel (mm)	40/60	60/80
Mixing Motor Power (kw)	15	18.5
Lifting Motor Power (kw)	4.5	5.5
Discharge Motor Power (kw)	4	4
Pump Motor Power (kw)	0.75	1.1
Hopper Lifting Speed (m/min)	18	18
Dimensions (L×W×H) (mm)	4150×2700×3150	4330×2700×5000
Weight (kg)	3000	3700
