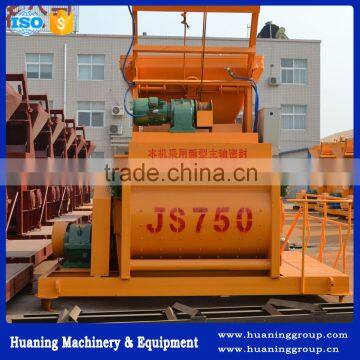

Good-quality JS750 Forced Concrete Mixer Machine Factory Price

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Hunan, China
Model Number	JS750	Mixing Power	30KW
Charging Capacity	1200L	Reclaiming capacity	750L
Speed of Mixing Drum	29.6r/min	Water Supply Mode	Water Pump
Working Cycle Period	72s	Discharge Way	Pneumatic or hydraulic discharge
Outline Dimension	502531005680mm	After-sales Service Provided	Engineers available to service machinery overseas

Brief introduction of JS750 Forced Concrete Mixer Machine Factory Price

JS750 Concrete Mixer Machine is the twin-shaft forced mixing machine and generally used to mix dry rigid concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortar.
The twin-shatts concrete mixer not only can worky independently, but also can be adopted as mixer in concrete batching plant. This efficient machine is widely applied in all kinds of large, middle and prefabricated concrete plants, hideways, bridge project, water conservancy, wharf, etc. It can work the tilting cart.

Features of JS750 Forced Concrete Mixer Machine Factory Price

This machine has latest technology, excellent mixing quality and efficiency
Shafts adopt high-rigidity and high-tenacity wearable cast alloy steel to prolong the service time.
Shaft head seal adopt original-imported parts installation to avoid cement and slurry entering in shaft-head.
Pneumatic or hydraulic discharging can be used to switch the discharge gate.
Lubrication system adopts electric oil pump or manual oil pump.
Scaleboard and blades have long service life

JS750 Forced Concrete Mixer Machine is Applied in HZS35 Concrete Batching Plant

Main Technical Parameters of JS750 Forced Concrete Mixer Machine Factory Price

Type		JS500	JS750	JS1000A	JS1000B	JS1500A
Discharge Capacity (L)		500	750	1000	1000	1500
Feed Capacity (L)		800	1200	1600	1600	2400
Productivity (m3/h)		≥25	≥35	≥50	≥60	≥75
Max. Aggregate Size: Pebble/Gravel (mm)		≤40/50	≤40/60	≤60/80	≤60/80	≤60/80
Work Cycle Time (s)		72	72	60	60	60
Mixing Blades	Speed (r/min)	31	29.6	26	26	24.5
	Quantity	2×7	2×7	2×7	2×7	2×7
Mixing Motor (kw)		18.5	30	37	2×18.5	2x22
Winch Motor (kw)		5.5	7.5	7.5	13	15
Pump Motor (kw)		1.1	1.5	3	3	3
Dimensions (L × W × H)		2900×2530×2680	3110×2620×2580	4320×2200×3300	2800× 2200 ×2000	4720×2200×3000
Total weight(kg)		4000	5500	8700	6000	11130
