Easy Movement China Mobile JZC Series Concrete Mixer for Sale

Easy Movement China Mobile JZC Series Concrete Mixer for Sale photo-1
Easy Movement China Mobile JZC Series Concrete Mixer for Sale photo-2
Easy Movement China Mobile JZC Series Concrete Mixer for Sale photo-3

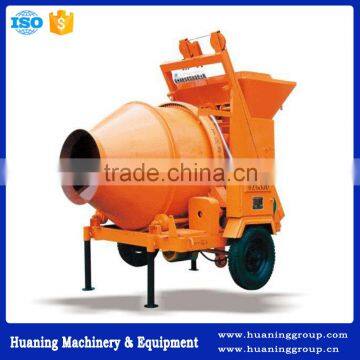

Easy Movement China Mobile JZC Series Concrete Mixer for Sale photo-4

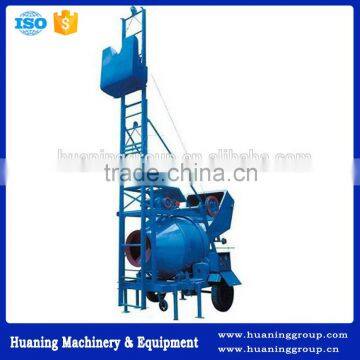

Easy Movement China Mobile JZC Series Concrete Mixer for Sale photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Model Number:
JZC300, JZC350, JZC500
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao etc.
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Model Number JZC300, JZC350, JZC500
Mixing Power 4-11 kw
Charging Capacity 480-800 L
Reclaiming capacity 300-500 L
Speed of Mixing Drum 13-17 r/min
Water Supply Mode Water pump
Working Cycle Period 72 s
Discharge Way By rotating reversely
Outline Dimension Vary according to different models
After-sales Service Provided Engineers available to service machinery overseas

China Mobile Concrete Mixer

JZC Series

Product Description

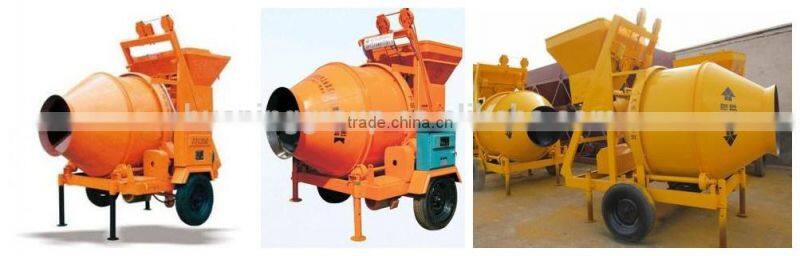

Pictures of China Mobile Concrete Mixer

Easy Movement China Mobile JZC Series Concrete Mixer for Sale

Brief Introduction of China Mobile Concrete Mixer

  • China Mobile Concrete Mixer is the self-falling concrete mixing machine and widely used for mixing plastic and damp-dry rigid concrete.
  • The mixing drum is driven by gear ring.
  • The China Mobile Concrete Mixer discharges concrete with the double wimble rotating anticlockwise, while it mixes the materials by rotating clockwise.



Applications of China Mobile Concrete Mixer

  • Architectural building site; road construction; bridge project; water-power project; small and medium concrete plant; etc.

Easy Movement China Mobile JZC Series Concrete Mixer for Sale Easy Movement China Mobile JZC Series Concrete Mixer for Sale





Advantages of China Mobile Concrete Mixer

  • Reliable drive; simple and stable operation
  • High productivity; high mixing quality; compact structure
  • Excellent skills assured the accuracy between blades and cylinder
  • Noise reduction and low consumption
  • Long service life of blades and scaleboard
Parameters

Specifications of China Mobile Concrete Mixer

Models

JZC300

JZC350

JZC500

Working Performances

Discharge Capacity (L)

300

350

500

Feeding Capacity (L)

480

560

800

Productivity (m3/h)

6-8

10-14

20-25

Rotation Speed (r/min)

17

14

13

Max. Aggregate Size (mm)

60

60

60-80

Water Precision

Error≤2%

Error≤2%

Error≤2%

Motors

Mixing Motor (kw)

4

5.5

11

Lifting Motor (kw)

4

4.5

7.5

Pump Motor (kw)

0.55

0.75

1.1

Max. Towing Speed (km/h)

20

20

20

Tire Size

6.50-16

6.50-16

7.50-16

Dimensions (mm)

2260×1990×2750

2766×2140×3000

5520×2300×5800

Weight (kg)

1300

1950

4000



Our Services

Easy Movement China Mobile JZC Series Concrete Mixer for SaleEasy Movement China Mobile JZC Series Concrete Mixer for Sale

Company Information
  • Henan Huaning Machinery & Equipment Co., Ltd is one of the large-scale enterprises of construction machinery. It is specialized in manufacturing and selling concrete equipment for more than 20 years. Up to now, we already have 14 experienced engineers and 180 staffs.
  • All our products have passed ISO9001 International Quality System Certification and high product quality wins the trust from most customers.
  • Our main products are: Concrete Mixing Plant (HZS25, HZS35, HZS50, HZS60, HZS75, HZS90, HZS120, HZS180); Concrete Mixer (JS Series, JDC Series, JZC Series, JZM Series, JW Pan Concrete Mixer, Diesel Engine Concrete Mixer); Concrete Batching Machine; Screw Conveyor; Cement Silo; JZ350 Mortar Mixer; etc.

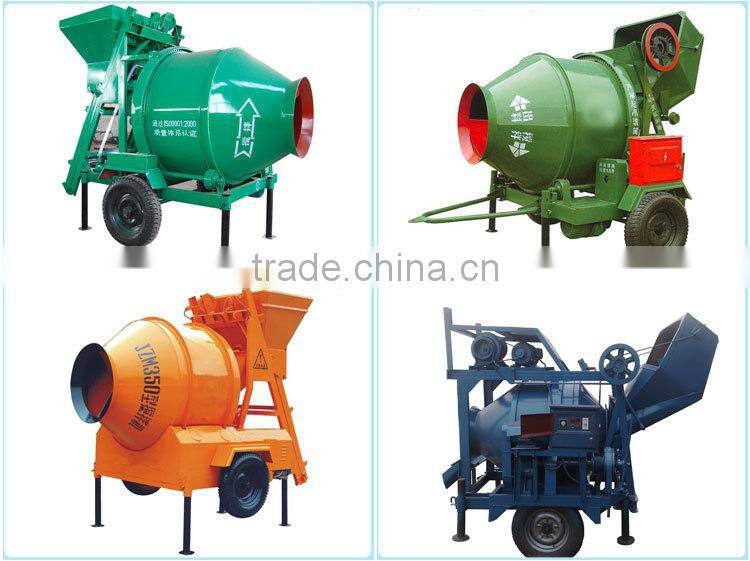

Display of Our Main Products:
