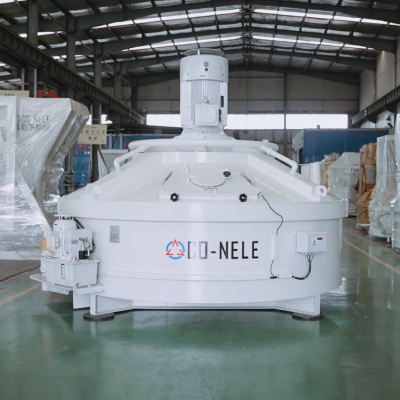

CONELE CMP Planetary Concrete Mixer

CONELE CMP Planetary Concrete Mixer thumbnail-1
CONELE CMP Planetary Concrete Mixer thumbnail-2
CONELE CMP Planetary Concrete Mixer thumbnail-3
CONELE CMP Planetary Concrete Mixer photo-1
CONELE CMP Planetary Concrete Mixer photo-2
CONELE CMP Planetary Concrete Mixer photo-3
US$ 15000 - 70000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CONELE
Place of Origin:
China
Model Number:
CMP
Contact Supplier Request Quote Chat Now
Qingdao CO-NELE Machinery Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CONELE
Place of Origin China
Model Number CMP
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Mixing Power 3-250W

CO-NELE planetary mixer is widely used in PRECAST concrete, high performance concrete, refractory materials, ceramics and other industries. For materials with high mixing difficulty, the advantages of co-nele planetary mixer are obvious.

Features:

1. CMP series vertical axis planetary mixer is suitable for precast concrete (PC components, pipe piles, sleepers, subway segments, floor tiles, ladders, etc.), light industry, heavy chemical industry (glass, ceramics), slag, coal ash and other raw materials. mixing.

2. Reasonable mixing speed and complex motion trajectory design make the mixing of various materials more intense, more uniform and higher productivity.

3. The specially designed stirring device makes the stirring speed faster and the mixing more uniform; the mixing blade is more resistant to wear;

4. Flexible coupling and hydraulic coupler (optional) can effectively protect the transmission system from the impact of overload;

5, planetary gearbox, with low noise, large torque, strong durability, low maintenance costs.

6. There is no direct contact between the various mixing materials and the output part of the transmission, and there is no problem of slurry leakage in the twin-shaft mixer.

7, hydraulic discharge. The hydraulic unloading design has a special hydraulic pumping station, which can meet the configuration of three discharge doors, and has a manual unloading function. In an emergency, the discharge door can be manually opened.

8. Reasonably designed discharge door has a more reliable sealing structure to avoid leakage;

9. Maintenance door design, more convenient maintenance and cleaning; special sealing device, more environmentally friendly, and high reliability and high sensitivity safety switch.

10. There are high pressure cleaning devices and humidity testers (optional);

Type Of Planetary concrete Mixer

Type CMP
50		 CMP100 CMP150 CMP
250		 CMP
330		 CMP
500		 CMP
750		 CMP
1000		 CMP
1250		 CMP
1500		 CMP
2000		 CMP
2500		 CMP
3000		 CMP
4000		 CMP
4500
In capacity(L) 75 150 225 375 500 750 1125 1500 1875 2250 3000 3750 4500 6000 6750
Out capacity(L) 50 100 150 250 330 500 750 1000 1250 1500 2000 2500 3000 4000 4500
Out mass（kg） 120 240 360 800 200 1800 2400 3000 3600 4800 6000 7200 9600 10800 10800
Mixing power(kw) 3 5.5 7.5 11 15 18.5 30 37 45 55 75 90 110 160 200
Discharging power(kw) Pneumatic discharge (optional hydraulic) 3 3 3 4 4 4 4 4
Planet/main planet(nr) 1/2 1/2 1/2 1/2 1/2 1/2 1/3 2/4 2/4 2/4 3/6 3/6 3/9 3/9 3/9
Paddle 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Discharging paddle 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2
Weight(kg) 700 1100 1300 1500 2000 2400 3900 6200 6700 7700 9500 11000 1200 16500 17500
Lifting power(kw) - 2.2 2.2 3 4 4 7.5 11 15 15 22 30 37 - -
Dimension(mm) 950x790x1200 1670x1460x1450 1670x1460x1620 1860x1650x1780 1870x1870x1855 2230x2080x1880 2580x2340x2195 2890x2602x2220 3060x2760x2305 3230x2902x2470 3625x3230x2630 3900x3550x2695 3900x3550x2975 4560x4150x3105 4560X4150X3305


Product Tags: planetary concrete mixer , concrete mixer , refractory mixer , UHPC mixer , CONELE mixer , planetary mixer for concrete
