Description of products

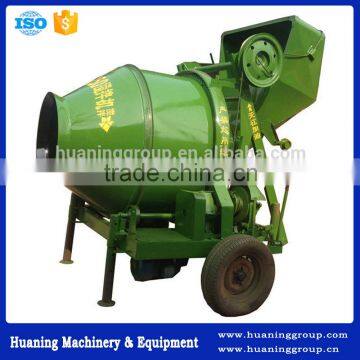

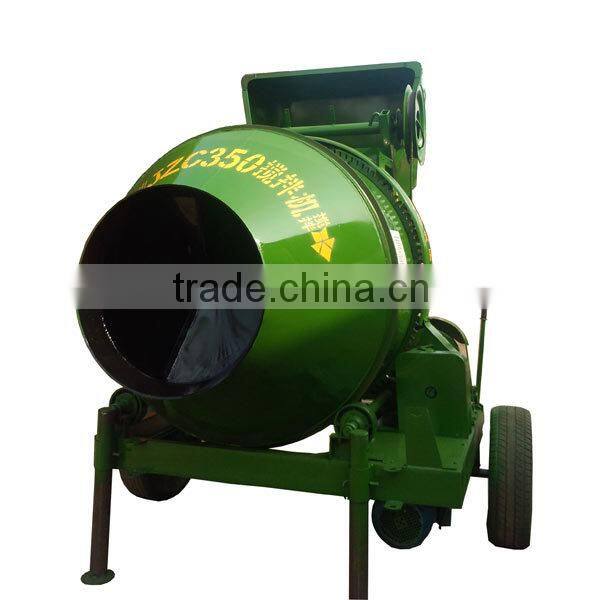

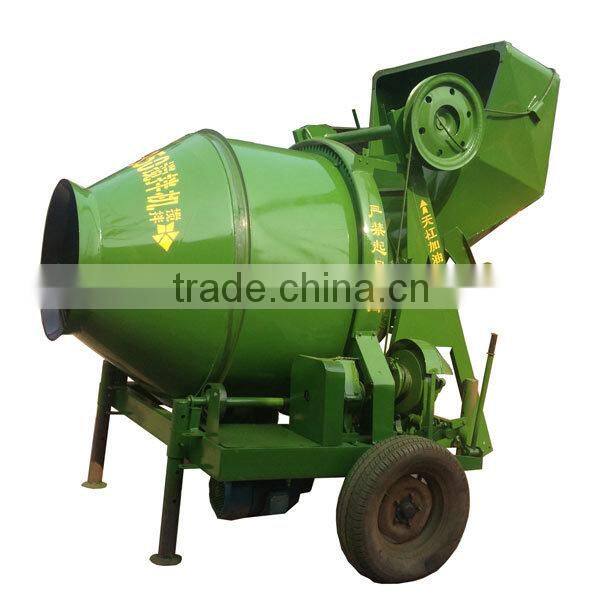

Mobile Machine JZC350 Concrete Mixer
JZC350A Concrete Mixer:
JZC350B Concrete Mixer:
Brief introduction of Mobile Machine JZC350 Concrete Mixer
- JZC350 concrete mixer is self-loading drum concrete mixer, discharging by rotating reversely and and mixing materials positively. It can be used for mixing plastic and semi-rigid concrete concrete and rotated bythe gear ring.
- It is mainly used in general construction sites, road, bridge, utilities and other projects.
Features of Mobile Machine JZC350 Concrete Mixer
- Easy to move by the two wheels
- Energy low consumption
- Simple operation and Good-quality Mixing
- High productivity
- Compact and stable structures
- Long service life
Compare JZC350A to JZC350B Concrete Mixer:
Model | Feeding Type | Advantages | Application |
JZC350A | Tipping Bucket | Cheap | Civil Use |
JZC350B | Lift Hopper | Long Service Life | Architectural Sites |
Main Technical Parameters of Mobile Machine JZC350 Concrete Mixer
Model | JZC300 | JZC350 | JZC750 |
Discharging Capacity (L) | 300 | 350 | 750 |
Charging Capacity (L) | 480 | 560 | 1200 |
Productivity (m3/h) | 6-8 | 10-14 | 25-30 |
Mixing Drum Speed (r/m) | 17 | 14 | 13 |
Max. Aggregate Size (mm) | 60 | 60 | 60-80 |
Accuracy of Water Supply | Error≤2% | Error≤2% | Error≤2% |
Stirring Motor (kw) | 4 | 5.5 | 15 |
Lift Motor (kw) | 4 | 4.5 | 7.5 |
Pump Motor (kw) | 0.55 | 0.75 | 0.75 |
Max. Towing Speed (km/h) | 20 | 20 | -- |
Tire Size | 6.50-16 | 6.50-16 | -- |
Dimensions in Container (mm) | 2260x1990x2750 | 2766x2140x3000 | 6116×2056×6060 |
Overall Weight (kg) | 1300 | 1950 | 4200 |
About Us
- Henan Huaning Machinery & Equipment Co., Ltd is one of the large-scale enterprises of construction machinery. It is specialized in manufacturing and selling concrete equipment for more than 20 years. Up to now, we already have 14 experienced engineers and 180 staffs.
- All our products have passed ISO9001 International Quality System Certification and high product quality wins the trust from most customers.
- Our main products are: Concrete Mixing Plant (HZS25, HZS35, HZS50, HZS60, HZS75, HZS90, HZS120, HZS180); Concrete Mixer (JS Series, JDC Series, JZC Series, JZM Series, JW Pan Concrete Mixer, Diesel Engine Concrete Mixer); Concrete Batching Machine; Screw Conveyor; Cement Silo; JZ350 Mortar Mixer; etc.
