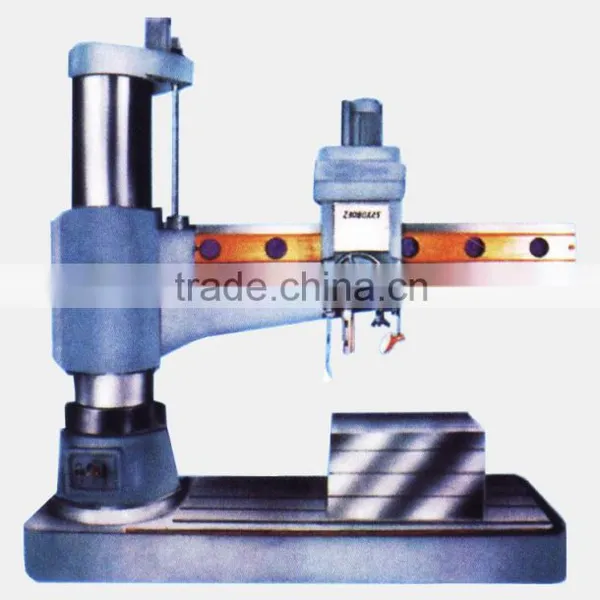

Help CenterRadial Drill Z3080X25
Related Products
Specifications
1.high rigidity and heavy body frame2.stable function and durable
3.high precision and more powerful
4.easy operation
The radial drilling machine of Model Z3080×25 is one of the large multi-purpose equipments, which is characterized by the high efficiency , close tolerance, hydraulic pressure transmission. Drilling diameter of 80mm is used to drill, expand, ream, groove, tap the middle and large parts and even to bore the holes if it is equipped with the necessary devices. This type of machine tool is easy to operate and is an ideal boring equipment in the manufacturing and repair fields; and it has been awarded the top quality model of Shandong Province many times and sells well at home and abroad. |
Max drilling diameter |
80mm |
|
Distance from spindle axis to column |
Max |
2500mm |
Min |
500mm |
|
Distance from spindle nose to working surface of base plate |
Max |
2000mm |
Min |
550mm |
|
Taper of spindle (Mores No.) |
6# |
|
Spindle travel |
450mm |
|
Spindle travel |
16-1250rpm |
|
Range of spindle feeds |
0.04-3.2mm/r |
|
Horizontal travel of spindle head |
2000mm |
|
Max. torque of spindle |
160kw-m |
|
Diameter of outer column |
550mm |
|
Power of main drive motor |
7.5kw |
|
Overall dimensions of machine (L*W*H) |
3730x1400x3828(mm) |
|
Net weight |
11000kg |
|
