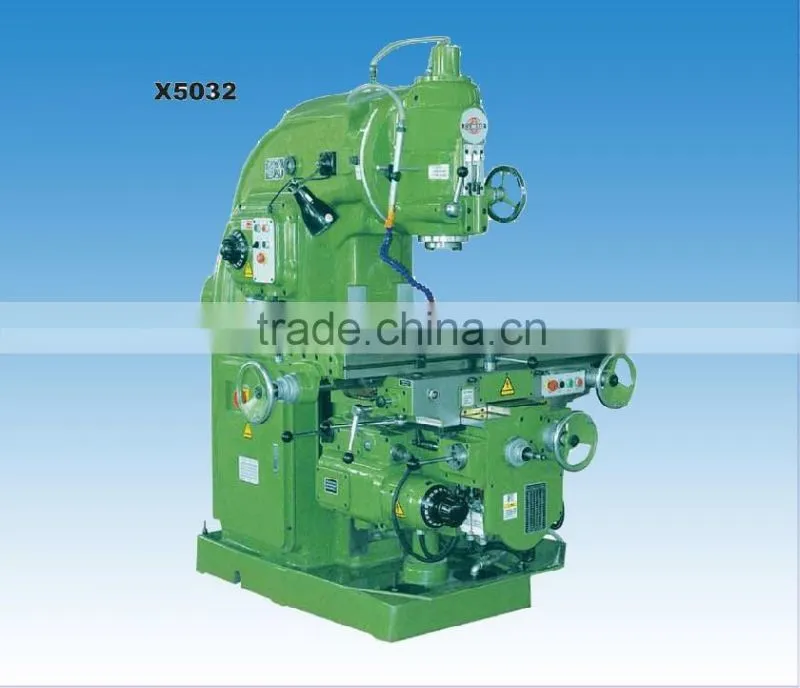

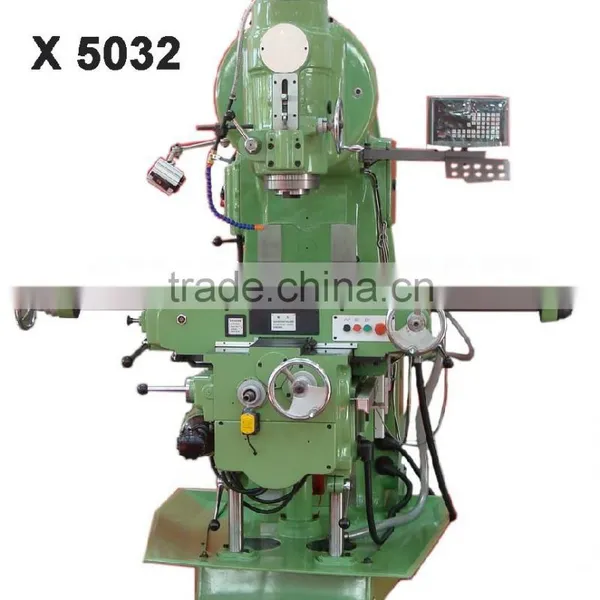

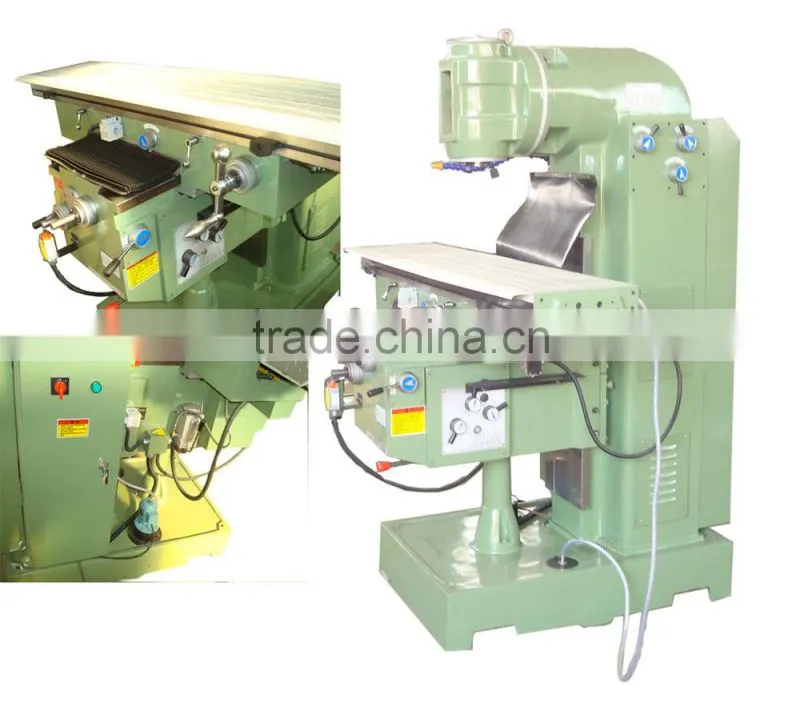

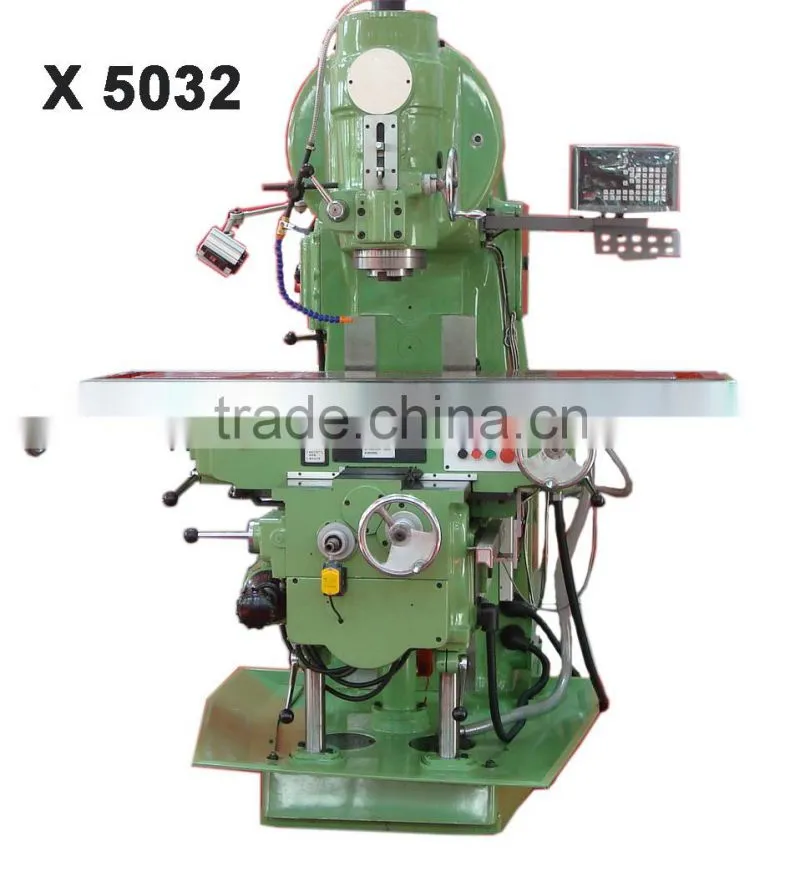

HOT!!X5032 Vertical Milling Machine

Name: HOT!!X5032 Vertical Milling Machine
Brand: HELI
SKU: 103162367

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

HELI

Tengzhou Runfa Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name HELI

Model Number X5032

Voltage 380V

Rated Power 7.5KW

Dimension(L*W*H) 2294*1770*1904mm

Weight 2900kg

Certification CE,ISO9001

Warranty 12 months

After-sales Service Provided Overseas service center available

Specifications

Specifications
1.adopt rectangular guideway.
2.spindle drive adopt three-point supporting structure.

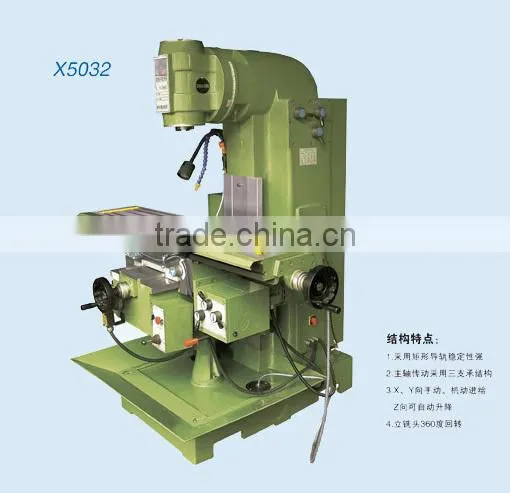

X5032 VERTICAL MILLING MACINE STUCTURE FEATURES:

1.adopt rectangular guideway with strong stability.

2.The spindle drive adopt three-point supporting structure.

3.X,Y,Z centralized-control feed mechanically,it also can feed together with adjusting speed.

4.Lengthen the slide block(1000mm) with long worktable stroke and strong stability

5.The milling head can swivel 360°.

Vertical milling machine X5032 main technical data

SPECIFICATIONS	X5032
Table size	320*1325mm
Spindle taper	7:24 ISO50
Spindle bore	29mm
Distance from spindle nose to table surface	60-410mm
Distance from spindle axis to bed vertical guideway surface	350mm
T-slot(number/width/spacing)	3/18/70
Table max.longitudinal travel manual/automatic	700/680mm
Table max.cross travel manual/automatic	255/240mm
Table max.vertical travel manual/automatic	350/330mm
Table rapid speed longitudinal/cross/vertical	2300/1540/770mm/min
Max.turning angle of vertical milling head	±45°
Spindle travel	70mm
Number of spindle speed	18 steps
Spindle speed range	30~1500r.p.m
Number of table feed	18 steps
Main motor power	7.5KW
Feed motor power	2.2KW
Overall dimension	229417701904mm
Net weight	2900kg
