Specifications
1.firmly hammer frame body,2.durable working
3.stable function
4.easy control
-

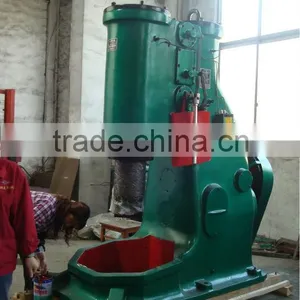

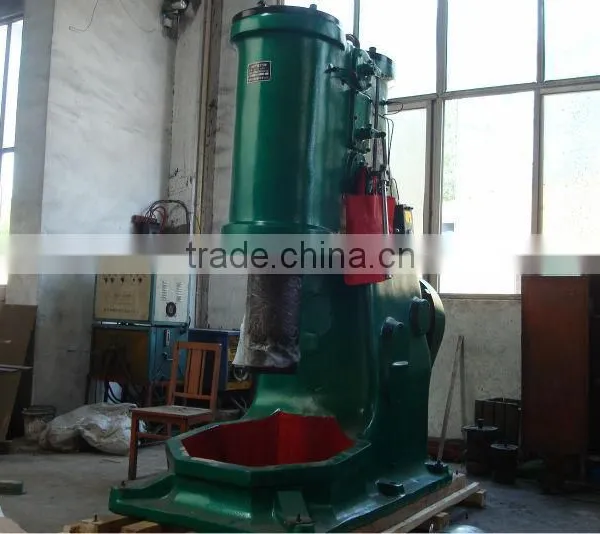

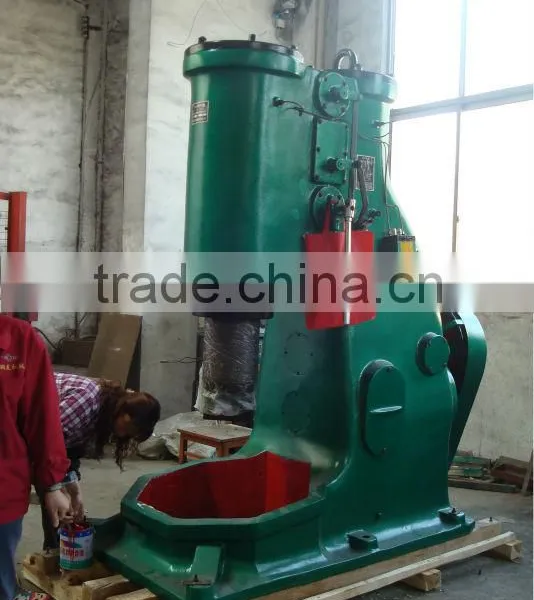

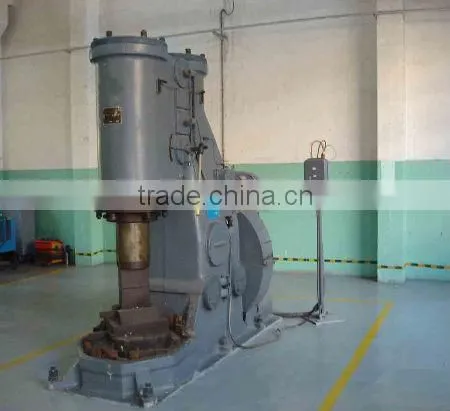

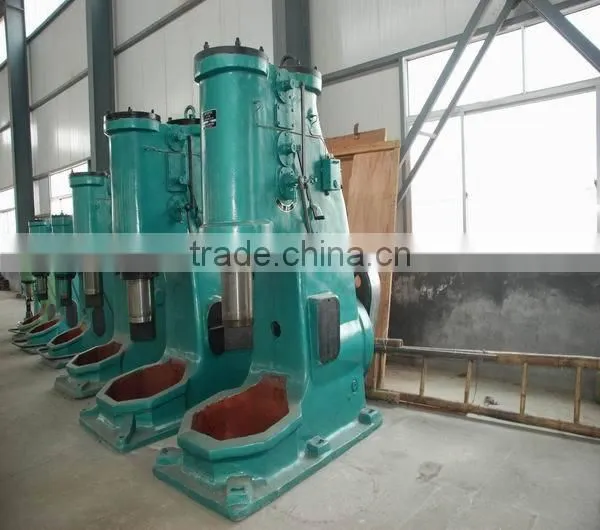

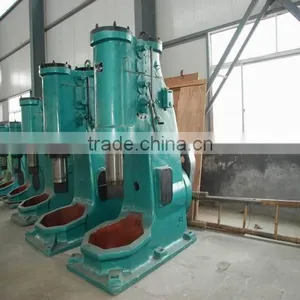

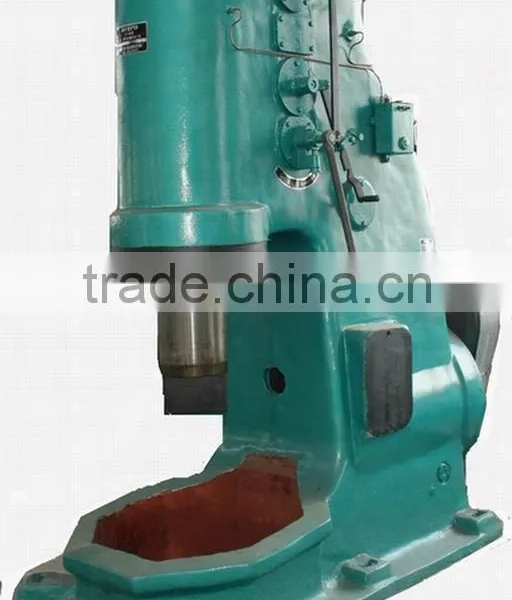

C41-250KG Pneumatic Forging Hammer is widely used with flat die or special die for various forging works,such as drawing-out, upsetting, punching, chiseling, forging, welding, bending and twisting. It is also used for open die forging bolster dies.
Because this Pneumatic Forging Hammer doesn’t use steam and compressing air,so it doesn’t need to install steam boiler,air compressor and air or steam pipe.Therefore you only need to invest less fund and time for establishing new factory.It is economically used by repair shop and large or small factory.
Pneumatic Forging Hammer can’t be used for closed forging.Because the strong power would break off the hammer rod while used in closed die forging.
Pneumatic Forging Hammer is operated with operating handle ,that could process six action cycle.----Idle run,lift hammer,press hammer light hit,wham and single hit,the workpiece must be put on the bottom anvil surface and opposite to the upper hammer die,only this could hit stably the workpiece to the shape you want.
-
Technical Specifications
1
Weight of falling parts
Kg
250
2
Max. hit energy
Kj
5.6
3
Hit number
min -1
150
4
Distance from bottom die surface to bottom surface of lead
mm
450
5
Tup axis to hammer body
mm
430
6
Dimension of top die surface
mm
220 X 100
7
Dimension of bottom die surface
mm
220 X 100
8
Distance from botton die surface to base
mm
750
Motor
Type
--
180L-4
Rate power
kw
22
9
Speed
r.p.m
1470
10
Overall dimension
mm
2875 X 1405 X 2570
11
Anvil Weight
kg
~3000
12
Total Weight
kg
~8000
