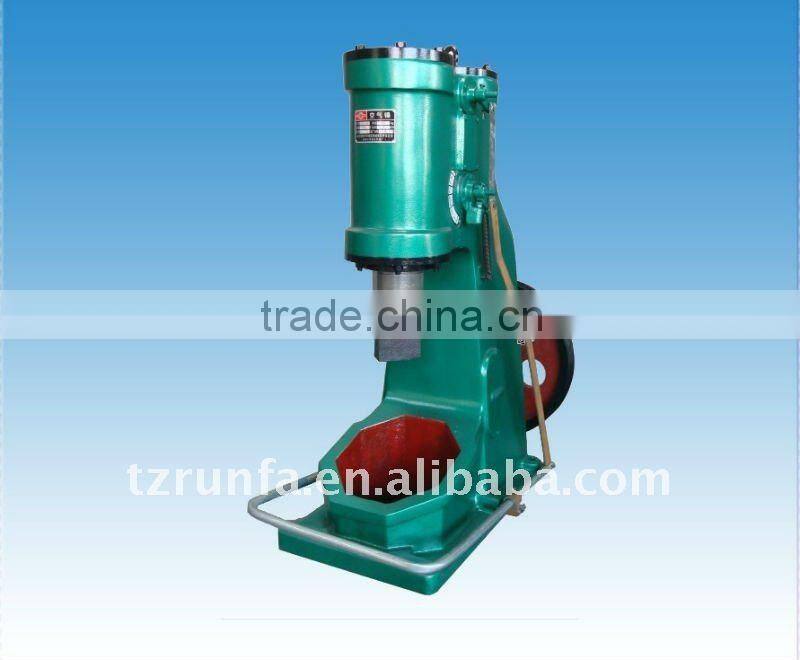

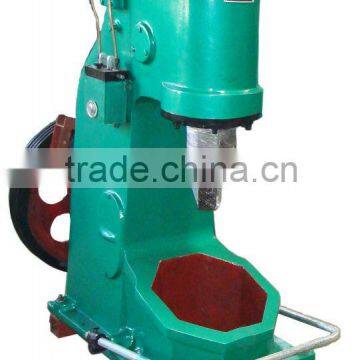

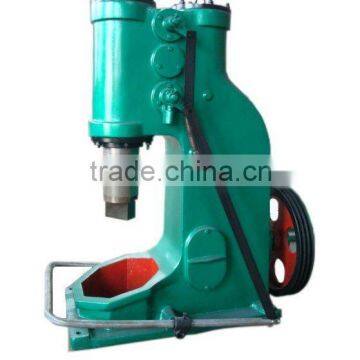

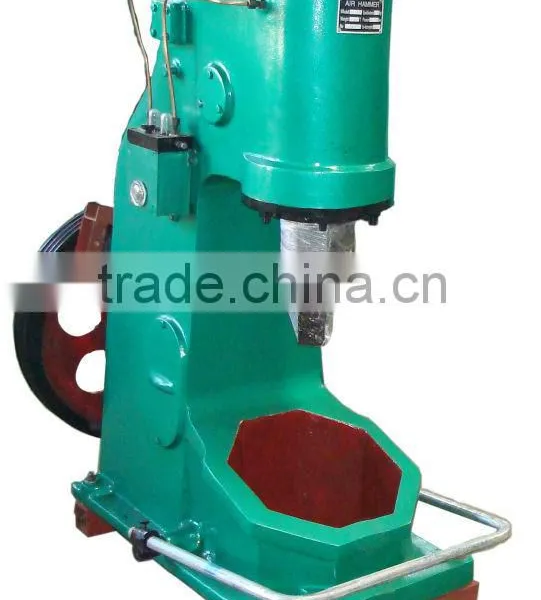

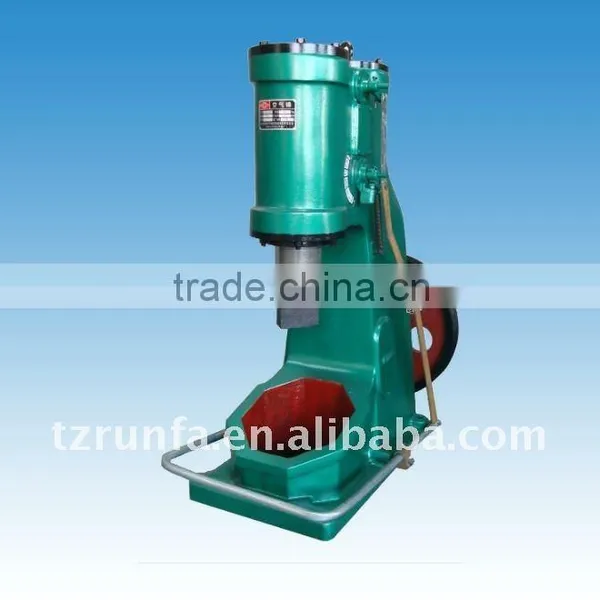

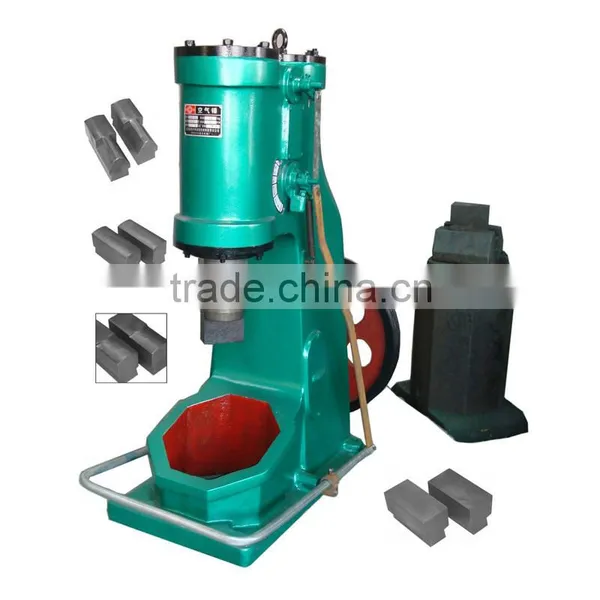

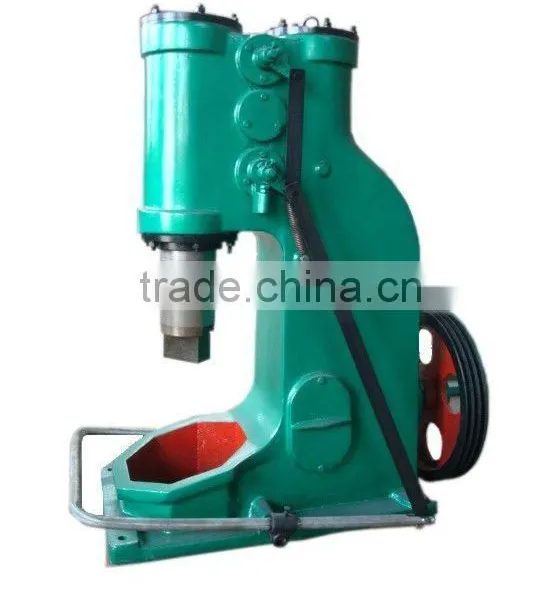

Air Hammer Pneumatic Iron Hammer C41-40KG(SEPARATE)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HELI
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Air Power Hammer Metal Forging Hammer C41-40KG (Integrated)NegotiableMOQ: 1 Set -
Air Hammer Pneumatic Forging Hammer C41-25KG (SEPARATE)NegotiableMOQ: 1 Set
-
Air Forging Hammer C41-20KG(SEPARATE) Pneumatic Iron HammerNegotiableMOQ: 1 Set
-
Air Hammer Metal Forging HammerC41-20KG(INTGRATED)NegotiableMOQ: 1 Set
-
Air Hammer Pneumatic Forging HammerC41-16KG(INTEGRATED)NegotiableMOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
HELI
Model Number
C41-40KG(SEPARATE)
Voltage
380V
Power(W)
4000
Dimension(L*W*H)
1080*600*1430MM
Weight
1350
Certification
CE
Warranty
12 months
After-sales Service Provided
Overseas service center available
Specifications
Air iron Forging Hammer is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling and forge
MainTechnical Data
Item |
Unit |
MODEL NO. |
||
Weight of falling parts |
kg |
40 |
||
Maximum blow energy |
J |
530 |
||
Distance from center of die to frame |
mm |
235 |
||
Distance between top and bottom die |
mm |
245 |
||
Number of blows per minute |
min-1 |
245 |
||
Dimension of top to bottom |
mm |
120*50 |
||
Diameter of the working cylinder |
mm |
200 |
||
Diameter of the compressing cylinder |
mm |
205 |
||
Travel distance of malleus |
mm |
290 |
||
Travel distance of plunger |
mm |
154 |
||
Forges |
Round |
mm |
Φ68 |
|
|
Square |
mm |
52 |
|
Motor |
Power |
kw |
4 |
|
|
Rotate speed |
rpm |
1440 |
|
|
Outside Size |
Length |
mm |
1080 |
|
|
Width |
mm |
600 |
|
|
High |
mm |
1430 |
|
Anvil block weight |
kg |
400 |
||
Hammer weight |
kg |
~1350 |
||
