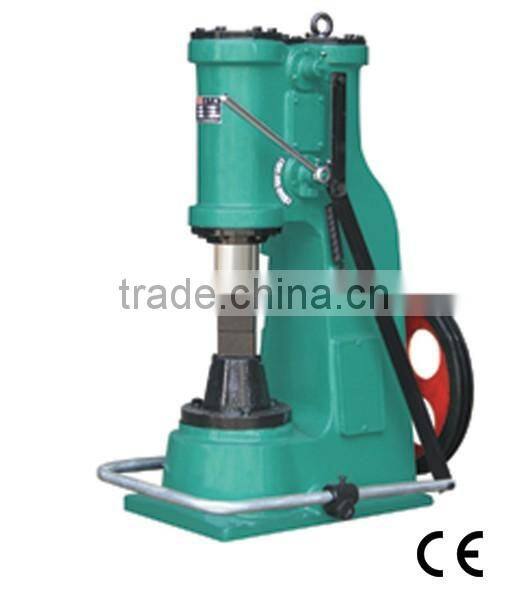

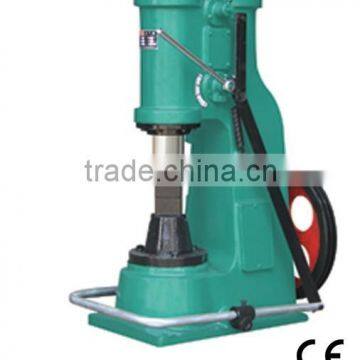

Air hammer is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forging, welding, bending and twisting. It is also used for forge in bolster dies. Air hammer is also called forging hammer, blacksmithing hammer, pneumatic forging hammer, power hammer and so on. Air hammer falling weight at 6kg 16kg, 20kg, 25kg, 40kg, 55kg, 75kg, 150kg,250kg

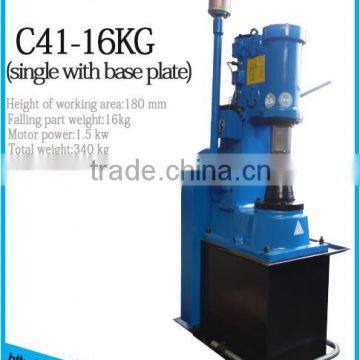

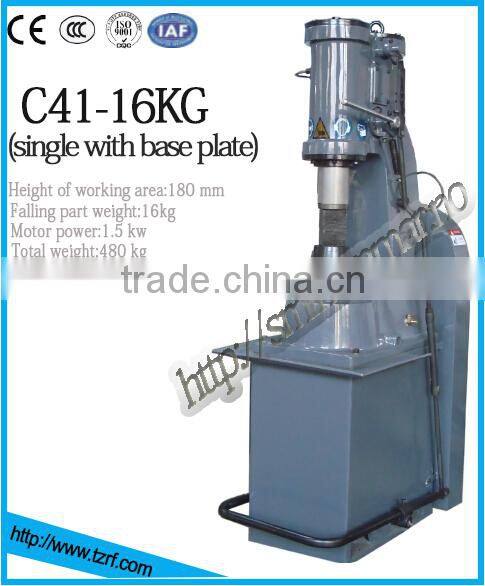

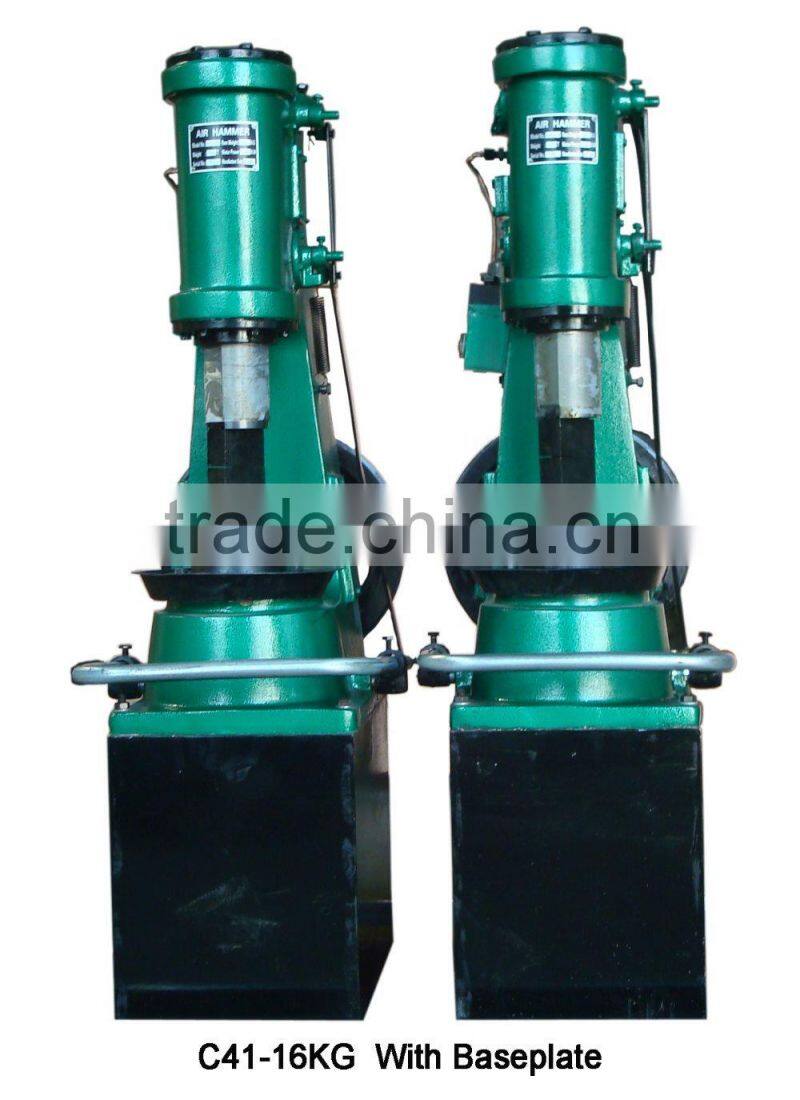

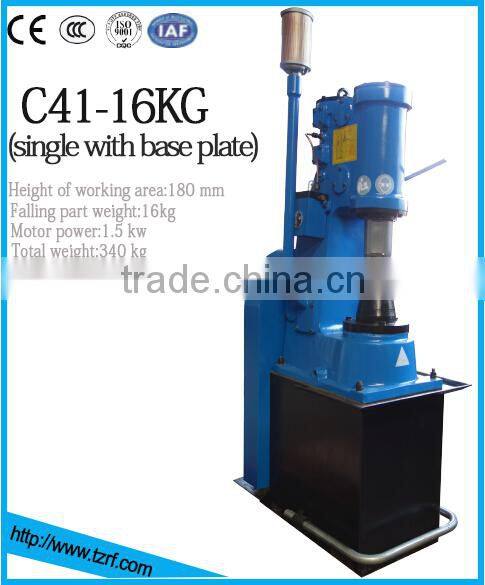

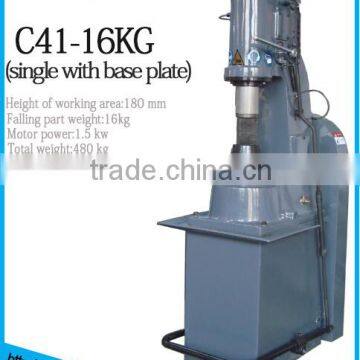

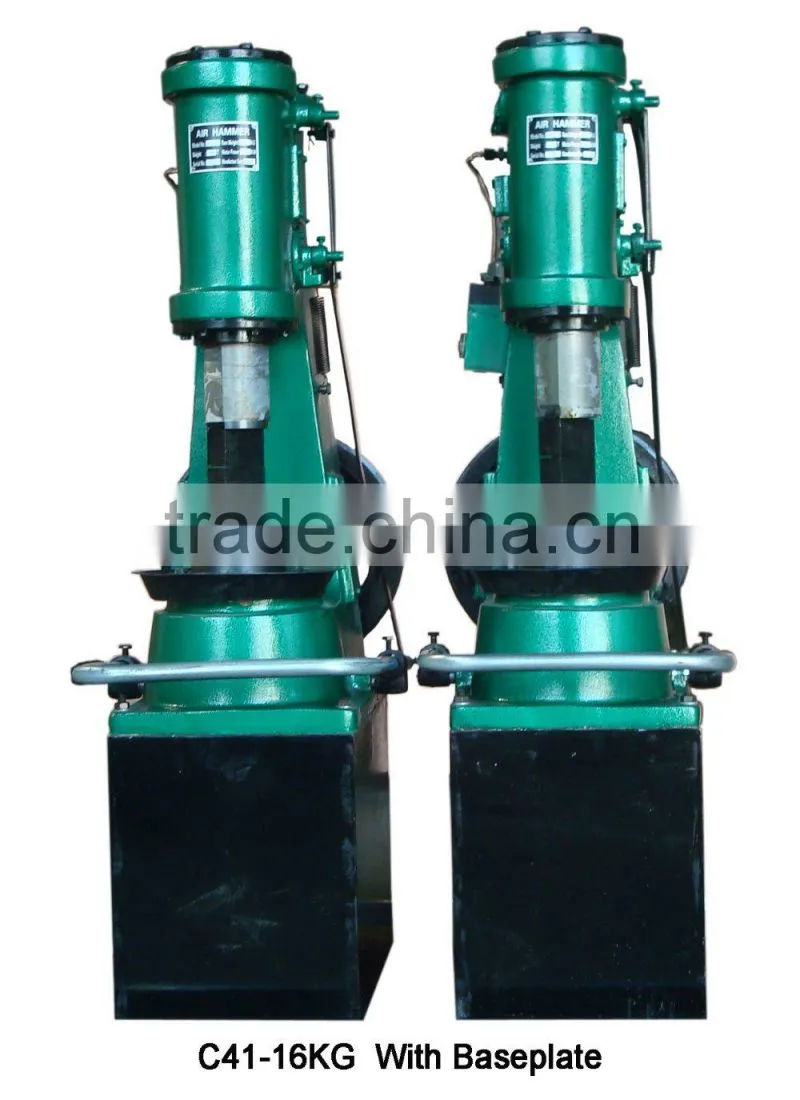

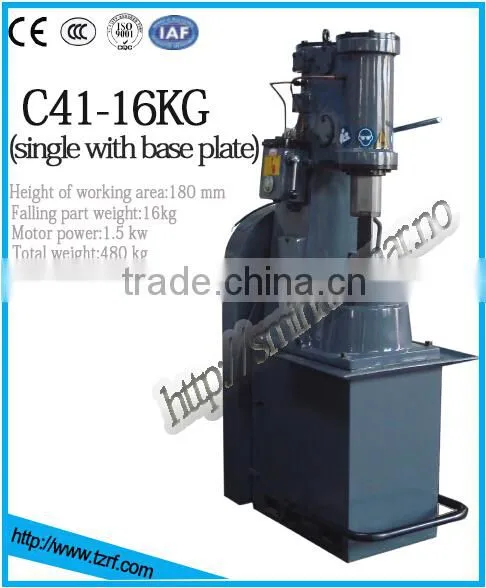

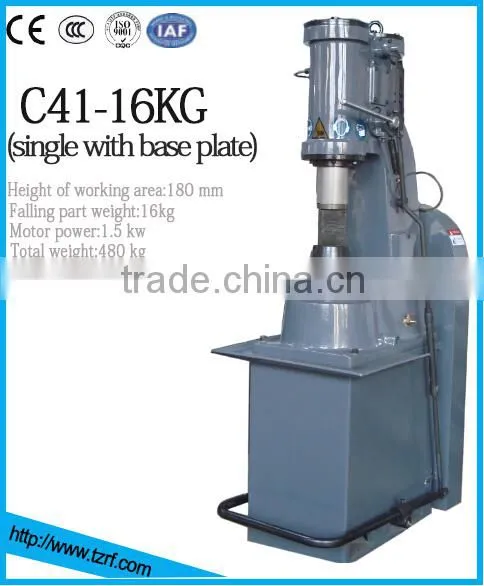

SPECIFICATION | UNIT | C41-16kg SINGLE WITH BASE |
Max. hit energy | kj | 0.18 |
Height of working area | mm | 180 |
Hit number | min-1 | 258 |
Dimension of top and bottom die surface(LxW) | mm | 70 x 40 |
Max. square steel can be forged | mm | 20 x 20 |
Max. round steel can be forged(Diameter) | mm | 22 |
Motor power | kw | 1phase 1.5/220 3phase 1.5/380 |
Speeds of motor | r.p.m | 1440 |
Base plate weight | kg | ------- |
Total weight | kg | 300 |
Overall dimensions(L*W*H) | mm | 800*420*1170 |
Packing Size(L*W*H) | mm | 1230x535x1365 |
