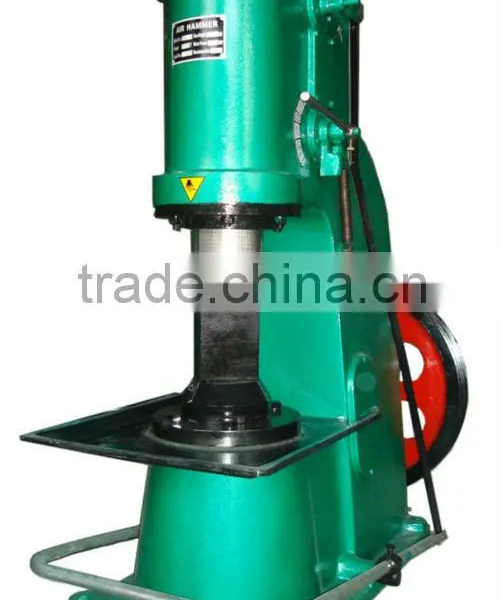

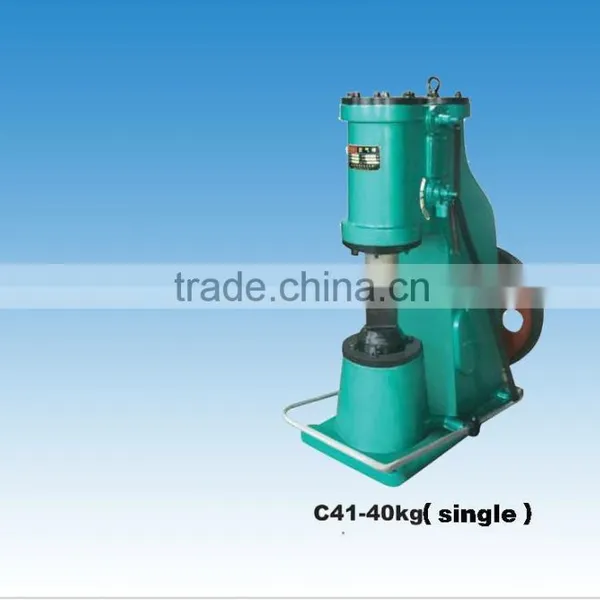

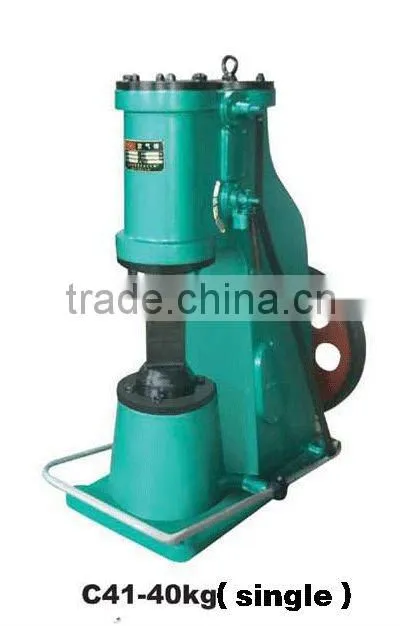

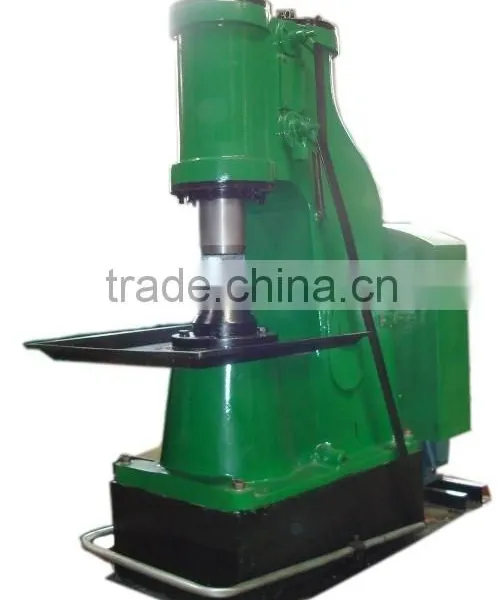

Help CenterAir Power Hammer Metal Forging Hammer C41-40KG (Integrated)
Related Products
-
Air Hammer Pneumatic Forging Hammer C41-25KG (SEPARATE)NegotiableMOQ: 1 Set -
Air Forging Hammer C41-20KG(SEPARATE) Pneumatic Iron HammerNegotiableMOQ: 1 Set
-
Air Hammer Metal Forging HammerC41-20KG(INTGRATED)NegotiableMOQ: 1 Set
-
Air Hammer Pneumatic Forging HammerC41-16KG(INTEGRATED)NegotiableMOQ: 1 Set
-
Air Hammer Pneumatic Forging HammerC41-16KG(single With Baseplate)NegotiableMOQ: 1 Set
Specifications
1.simple structure2.Easy operation
3.Stable function
4.Motion agility
5.Easy transit,fix and maintenance
This air power forging hammer is used to free forging,drawing,upsetting,punching,hot shearing,forged welding,bending and torsion.
I would like to suggest our air forging hammer(power hammer) to you, which is widely used for general Forging works. It is used for forging in bolster dies.
Our company is the only manufacture of air forging hammer in Tengzhou , we have 46 years history in producing air forging hammer. So far, Our Air Forging Hammers have been exported to Germany, UK, France, Russia, Romania, Slovenia, South Africa, Egypt, Brazil, Mexico, India, Vietnam, Thailand etc more than 50 countries.
Features:
1. the Air forging hammer with its self-contained cylinder,require no ancillary power raising plant.
2. The Air forging hammer is equipped with a self-priming lubricating oil pump. It can realize the automatic lubrication during operating.
3. Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions—idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired.
Main echnical Data
Item |
Unit |
MODEL NO. |
||
Weight of falling parts |
kg |
40 |
||
Maximum blow energy |
J |
530 |
||
Distance from center of die to frame |
mm |
235 |
||
Distance between top and bottom die |
mm |
245 |
||
Number of blows per minute |
min-1 |
245 |
||
Dimension of top to bottom |
mm |
120*50 |
||
Diameter of the working cylinder |
mm |
200 |
||
Diameter of the compressing cylinder |
mm |
205 |
||
Travel distance of malleus |
mm |
290 |
||
Travel distance of plunger |
mm |
154 |
||
Forges |
Round |
mm |
Φ68 |
|
|
Square |
mm |
52 |
|
Motor |
Power |
kw |
4 |
|
|
Rotate speed |
rpm |
1440 |
|
|
Outside Size |
Length |
mm |
1080 |
|
|
Width |
mm |
600 |
|
|
High |
mm |
1430 |
|
Hammer weight |
kg |
~880 |
||

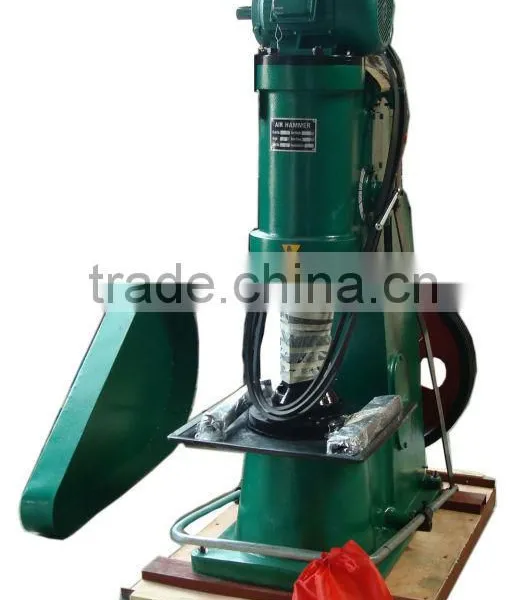

Tito plywood (fumigation-free) or fumigation
