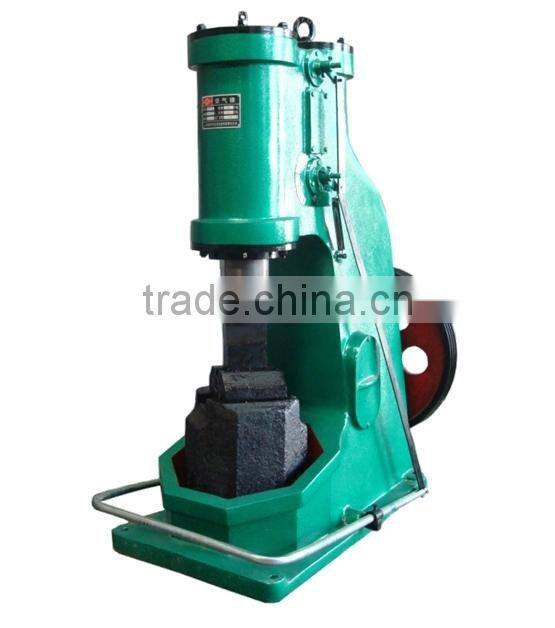

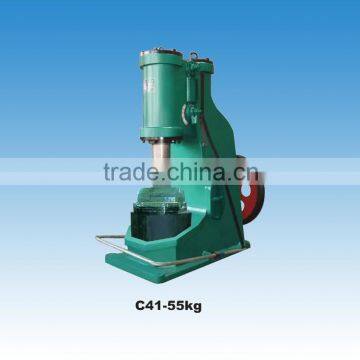

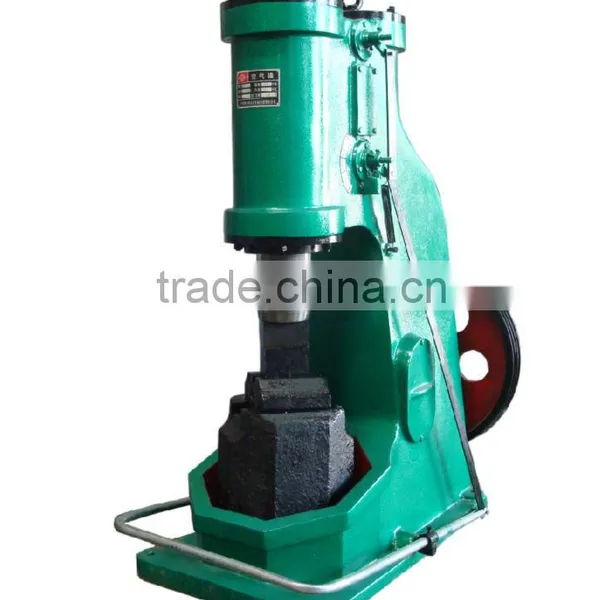

Air Hammer Wrought Iron Forging Hammer C41-55KG

Name: Air Hammer Wrought Iron Forging Hammer C41-55KG
Brand: HELI
SKU: 103159727
Availability: InStock

Tengzhou Runfa Machinery Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

HELI

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name HELI

Model Number C41-55KG

Voltage 380V

Power(W) 5500

Dimension(L*W*H) 1320*670*1620MM

Weight 1700KG

Certification CE

Warranty 12 months

After-sales Service Provided Overseas service center available

Specifications

1.simple structure
2.Easy operation
3.Stable function
4.Motion agility
5.Easy transit,fix and maintenance

It's used to free forging,drawing,upsetting,punching,hot shearing,forged welding,bending and torsion

Main Technical Data

Item		Unit	MODEL NO.
Weight of falling parts		kg	55
Maximum blow energy		J	700
Distance from center of die to frame		mm	270
Distance between top and bottom die		mm	265
Number of blows per minute		min-1	230
Dimension of top to bottom		mm	120*50
Diameter of the working cylinder		mm	215
Diameter of the compressing cylinder		mm	220
Travel distance of malleus		mm	265
Travel distance of plunger		mm	140
Forges	Round	mm	Φ68
	Square	mm	52
Motor	Power	kw	5.5
	Rotate speed	rpm	1440
Outside Size	Length	mm	1320
	Width	mm	670
	High	mm	1620
Anvil block weight		kg	600
Hammer weight		kg	~1700
