Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Forging Machinery > AIR HAMMER C41-20KG

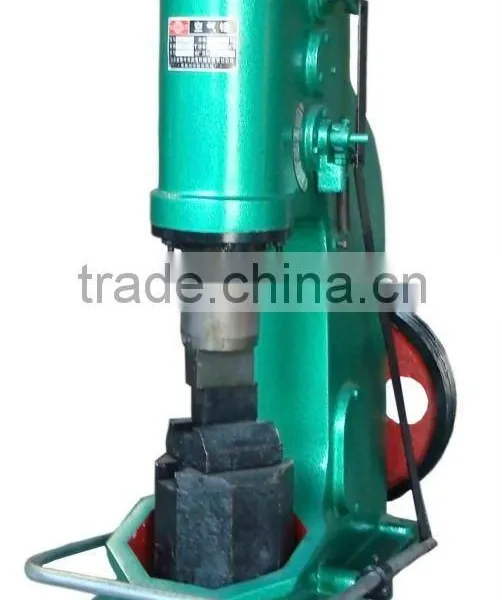

AIR HAMMER C41-20KG

Name: AIR HAMMER C41-20KG
Brand: HeLi
SKU: 103159223
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

HeLi

Model Number:

C41-20KG

Contact Supplier Request Quote Chat Now

Tengzhou Runfa Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name HeLi

Model Number C41-20KG

Specifications

1simple structure
2.Easy operation
3.Stable function and durable
4.Motion agility
5.High precision

Item		Unit	Numerical Value
Weight of falling parts		kg	16	20
Maximum blow energy		J	180	220
Distance from center of die to frame		mm	150	180
Distance between top and bottom die		mm	180	200
Number of blows per minute		min^-1	258	270
Dimension of top to bottom		mm	70*30	90*50
Diameter of the working cylinder		mm	115	150
Diameter of the compressing cylinder		mm	125	155
Travel distance of malleus		mm	210	200
Travel distance of plunger		mm	120	130
Forges	Round	mm		Φ35
Forges	Square	mm		30
Motor	Power	kw	1.5	2.0
Motor	Rotate speed	rpm		1440
Outside Size	Length	mm	584	670
	Width	mm	390	360
	High	mm	952	1050
Anvil block weight		kg		190
Hammer weight		kg	~220	~500

Air hammer is economic and convenient for individual blacksmiths or other wrought iron forging work.it is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forging, welding, bending and twisting. It is also used for forge in bolster dies. Air hammer is also called forging hammer, air hammer falling weight at 16kg, 20kg, 25kg, 40kg, 55kg, 75kg ,150kg mainly for artistic wrought iron, artistic forging, blacksmith, agriculture tools and small open die forging parts.
