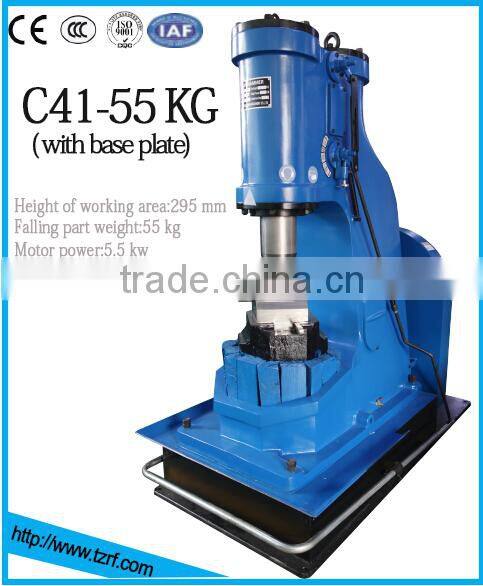

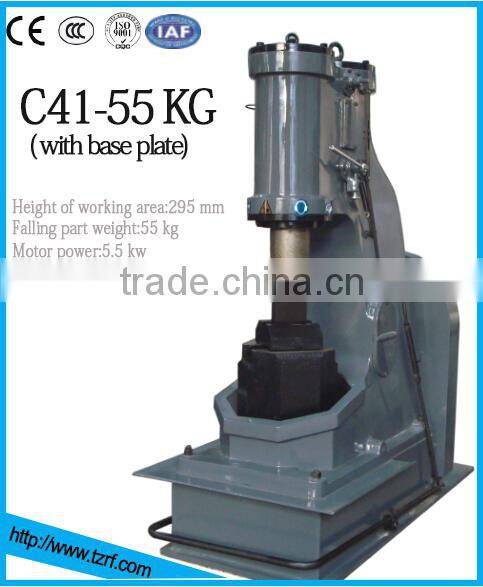

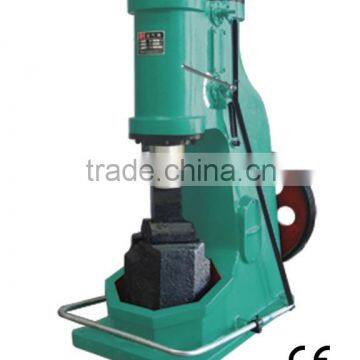

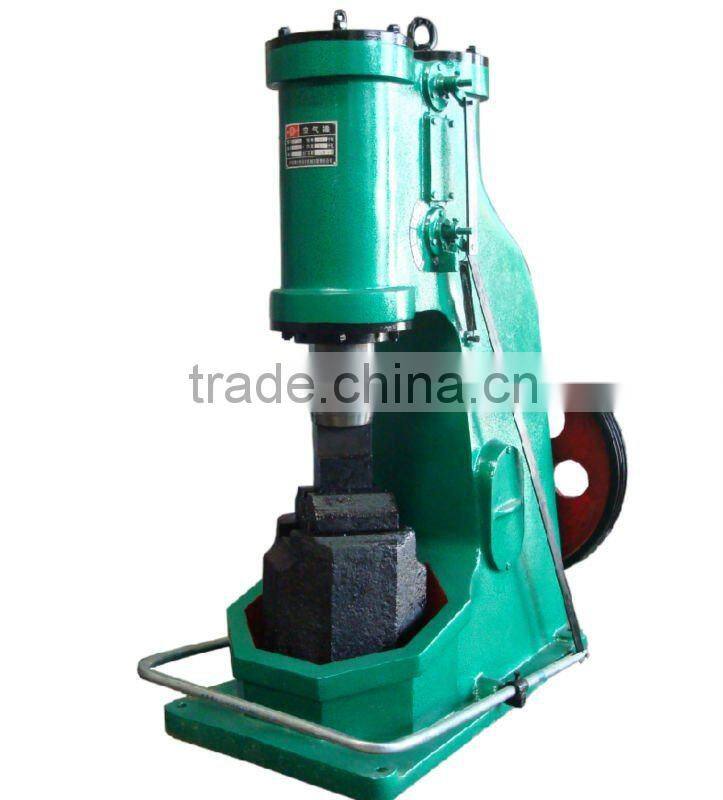

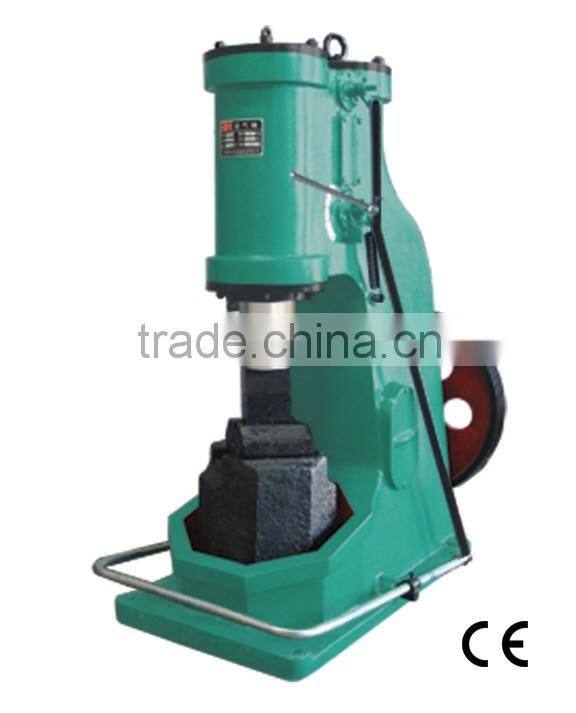

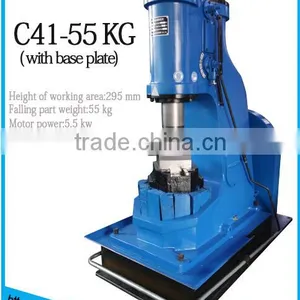

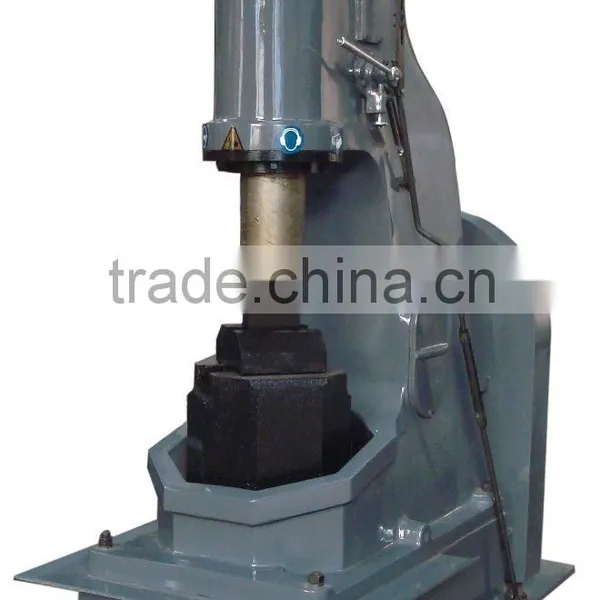

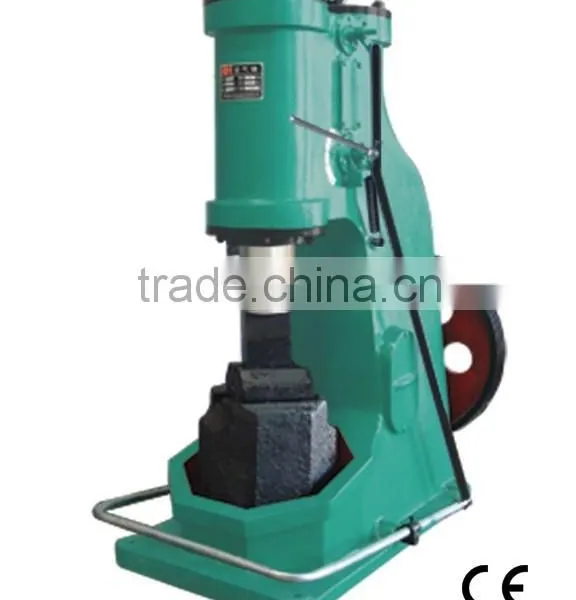

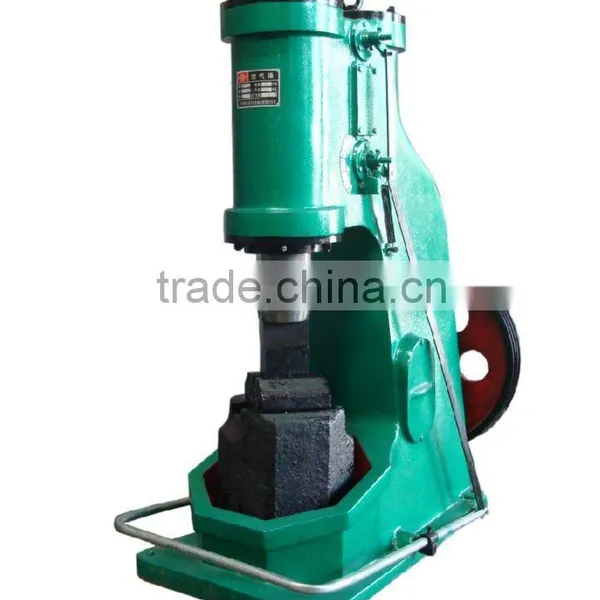

Help CenterAIR HAMMER C41-55KG Professional Forging Hammer
Related Products
Air hammer is economic and convenient for individual blacksmiths or other wrought iron forging work.it is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forging, welding, bending and twisting. It is also used for forge in bolster dies. Air hammer is also called forging hammer, air hammer falling weight at 16kg, 20kg, 25kg, 40kg, 55kg, 75kg ,150kg 250kg,mainly for artistic wrought iron, artistic forging, blacksmith, agriculture tools and small open die forging parts.
Item |
Unit |
MODEL NO. |
|
Weight of falling parts |
kg |
55 |
|
Maximum blow energy |
J |
700 |
|
Distance from center of die to frame |
mm |
270 |
|
Distance between top and bottom die |
mm |
265 |
|
Number of blows per minute |
min-1 |
230 |
|
Dimension of top to bottom |
mm |
120*50 |
|
Diameter of the working cylinder |
mm |
215 |
|
Diameter of the compressing cylinder |
mm |
220 |
|
Travel distance of malleus |
mm |
265 |
|
Travel distance of plunger |
mm |
140 |
|
Forges |
Round |
mm |
Φ68 |
Square |
mm |
52 |
|
Motor |
Power |
kw |
5.5 |
Rotate speed |
rpm |
1440 |
|
|
Outside Size |
Length |
mm |
1300 |
Width |
mm |
750 |
|
High |
mm |
1620 |
|
Anvil block weight |
kg |
600 |
|
Hammer weight |
kg |
~1700 |
|
Packing&Shipping:
Machine model: C41-55KG AIR HAMMER
Type of package: Plywood case
Packing dimension: 1350X800X1800mm (one set in one case)
N.W./G.W.: 1700/1750KGS
Suitable Container and quantity:
20' Standard Container: 12sets
40' Standard Container: 26sets
OUR SERVICES:
Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
Technical support online service provided .
Technical files service provided.
Machine operation video provided
On-site training service provided.
Spare parts replacement and repair service provided.
-
All of the questions will be replied within 24 hours
