1.small type2.more usefull
3.more durable
4.blacksmith tool

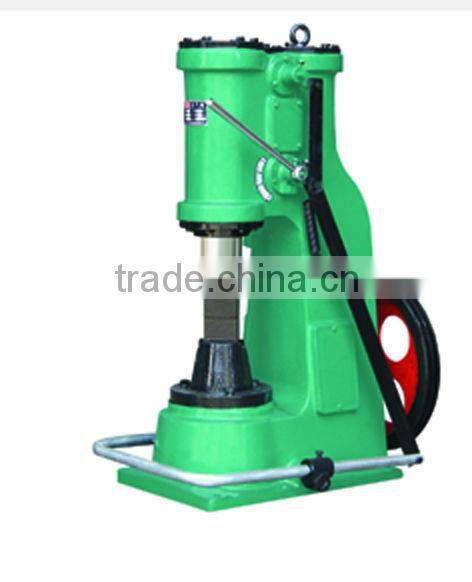

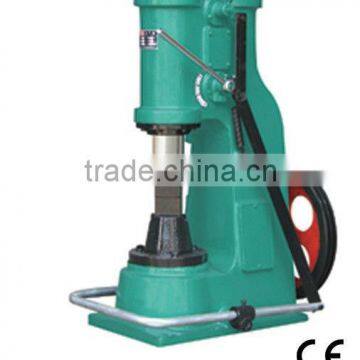

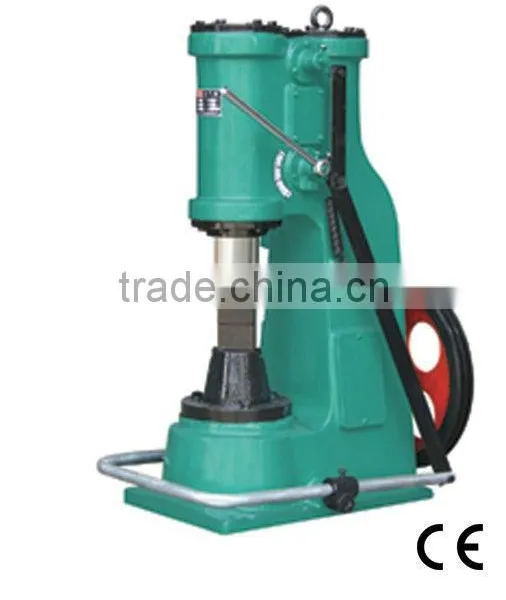

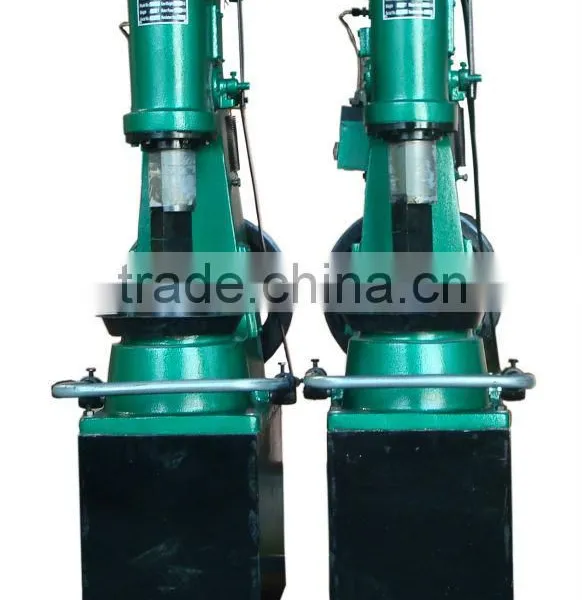

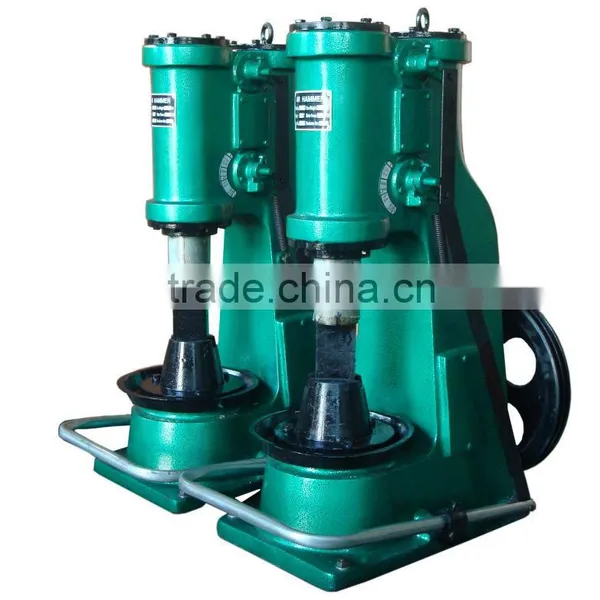

This air hammer is widely used for general Forging works,such as drawing-out,upsetting,punching,chiseling,forge,welding,bending and twisting,it is also used for forge in bolster dies.It is also called Forging hammer,Pneumatic forging hammer,Small power hammer,Metal forging hammer,Wrought iron forging hammer,Blacksmith air hammer,Pneumatic power hammer,Ciocan de forjare, ciocan de forja, forja,martillo neumático forja martillo,martillo pilón.re widely used for general Forging Works in blacksmithing, such as drawing-out, upsetting, punching, chiseling, forged welding, bending and twisting. It is also used for loose tooling forge. Artworks Hammer is used to forge small knife, farrier, guardrail, candleholder, wrought iron window etc

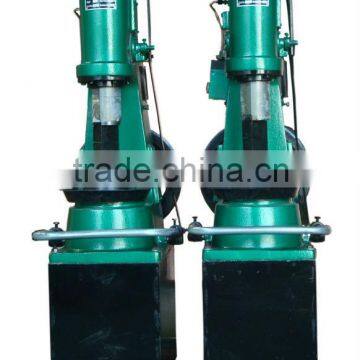

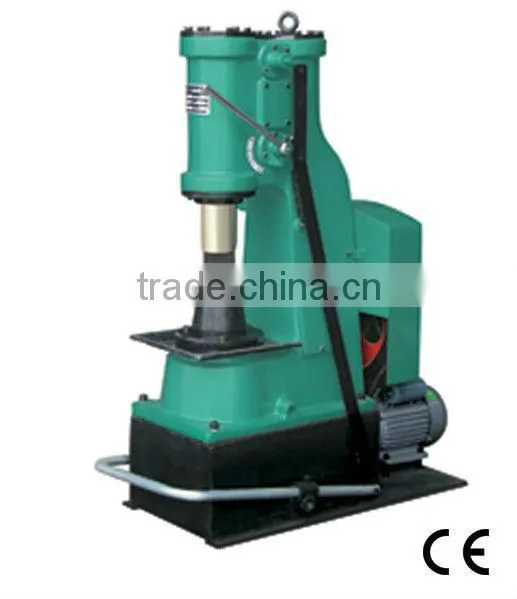

SPECIFICATION | UNIT | C41-16kg | C41-16kg +base plate |
Max. hit energy | kj | 0.18 | 0.18 |
Height of working area | mm | 180 | 180 |
Hit number | min-1 | 258 | 258 |
Dimension of top and bottom die surface(LxW) | mm | 70 x 40 | 70 x 40 |
Max. square steel can be forged | mm | 20 x 20 | 20 x 20 |
Max. round steel can be forged(Diameter) | mm | 22 | 22 |
Motor power | kw | single phase 1.5/220 three phase 1.5/380 | single phase 1.5/220V three phase 1.5/380V |
Speeds of motor | r.p.m | 1440 | 1440 |
Base plate weight | kg | ------- | 40 |
Total weight | kg | 240 | 290 |
Overall dimensions(L*W*H) | mm | 660*420*970 | 800*420*1170 |
