Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Forging Machinery > AIR HAMMER C41-25KG

AIR HAMMER C41-25KG

Name: AIR HAMMER C41-25KG
Brand: HeLi
SKU: 103159241
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

HeLi

Model Number:

C41-20KG

Contact Supplier Request Quote Chat Now

Tengzhou Runfa Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name HeLi

Model Number C41-20KG

Specifications

1simple structure
2.Easy operation
3.Stable function and durable
4.Motion agility
5.High precision

Item		Unit	Numerical Value
Weight of falling parts		kg	20	20	25
Maximum blow energy		J	220	220	270
Distance from center of die to frame		mm	180	180	200
Distance between top and bottom die		mm	200	200	240
Number of blows per minute		min^-1	270	270	250
Dimension of top to bottom		mm	90*50	90*50	100*50
Diameter of the working cylinder		mm	150	150	165
Diameter of the compressing cylinder		mm	155	155	170
Travel distance of malleus		mm	200	200	275
Travel distance of plunger		mm	130	130	140
Forges	Round	mm	Φ35	Φ35	Φ45
	Square	mm	30	30	40
Motor	Power	kw	2.0	2.0	2.2
	Rotate speed	rpm	1440	1440	1440
Outside Size	Length	mm	670	670	800
	Width	mm	360	360	410
	High	mm	1050	1050	1213
Anvil block weight		kg	---	190	247
Hammer weight		kg	~380	~500	~720

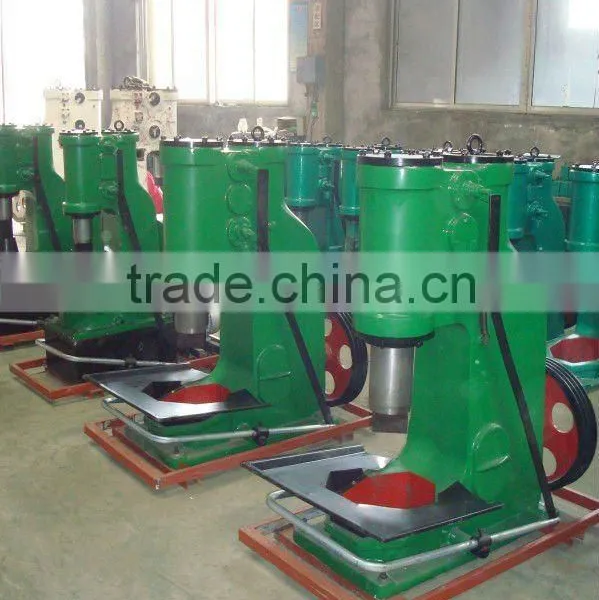

Air hammer is economic and convenient for individual blacksmiths or other wrought iron forging work.it is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forging, welding, bending and twisting. It is also used for forge in bolster dies. Air hammer is also called forging hammer, air hammer falling weight at 16kg, 20kg, 25kg, 40kg, 55kg, 75kg ,150kg mainly for artistic wrought iron, artistic forging, blacksmith, agriculture tools and small open die forging parts.
