Higher Hitting EnergyMore Hammer Control
Dependable
Low operating cost
No separate air compressor

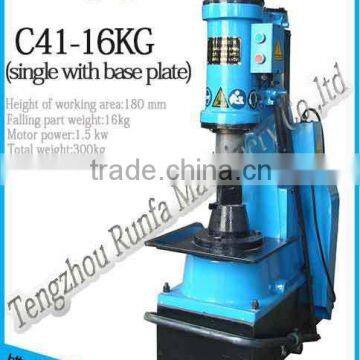

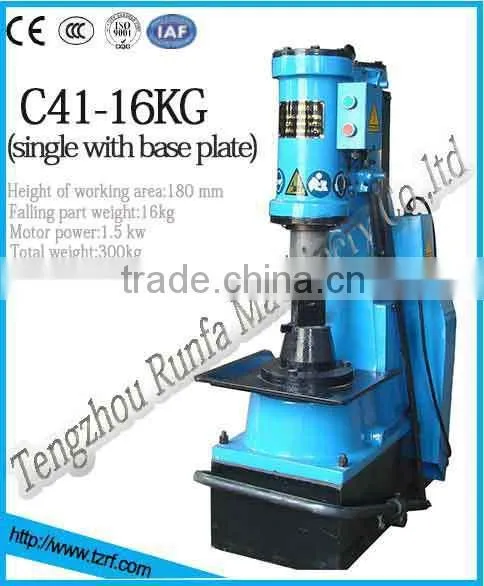

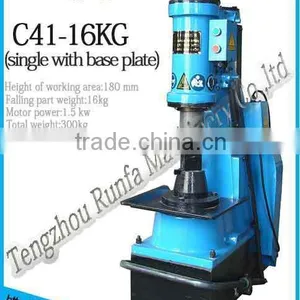

Air hammer is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forging, welding, bending and twisting. It is also used for forge in bolster dies. air hammer is also called forging hammer, air hammer falling weight at 16kg, 20kg, 25kg, 40kg, 55kg, 75kg ,150kg mainly for artistic wrought iron, artistic forging, blacksmith, agriculture tools and small open die forging parts.
Item | Unit | Numerical Value | |
Weight of falling parts | kg | 16 | |
Maximum blow energy | J | 180 | |
Distance from center of die to frame | mm | 150 | |
Distance between top and bottom die | mm | 180 | |
Number of blows per minute | min-1 | 258 | |
Dimension of top to bottom | mm | 70*30 | |
Diameter of the working cylinder | mm | 115 | |
Diameter of the compressing cylinder | mm | 125 | |
Travel distance of malleus | mm | 210 | |
Travel distance of plunger | mm | 120 | |
Forges | Round | mm | Φ22 |
Square | mm | 20 | |
Motor | Power | kw | 1.5 |
Rotate speed | rpm | 1440 | |
Outside Size | Length | mm | 584 |
Width | mm | 390 | |
High | mm | 952 | |
Anvil block weight | kg | -- | |
Hammer weight | kg | ~220 | |
