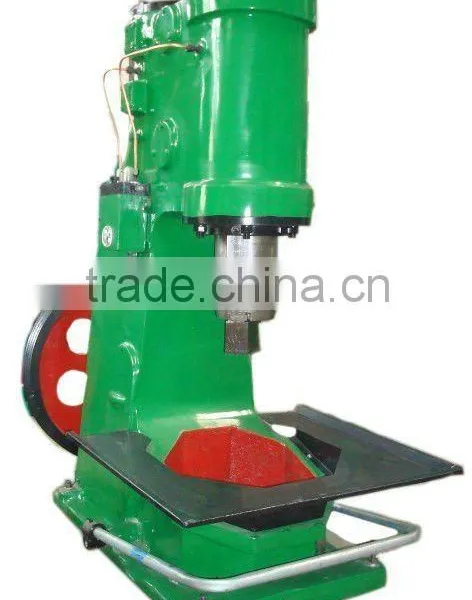

AIR HAMMER C41-40KG(Blacksmithing Hammer)
- 157 Set / Sets per Month
Product Details
Place of Origin: | Shandong, China | Brand Name: | HELI | Model Number: | C41-40KG |
Product Description
Specifications
1simple structure2.more durable
3.Easy operation
4.Stable function
5.Motion agility

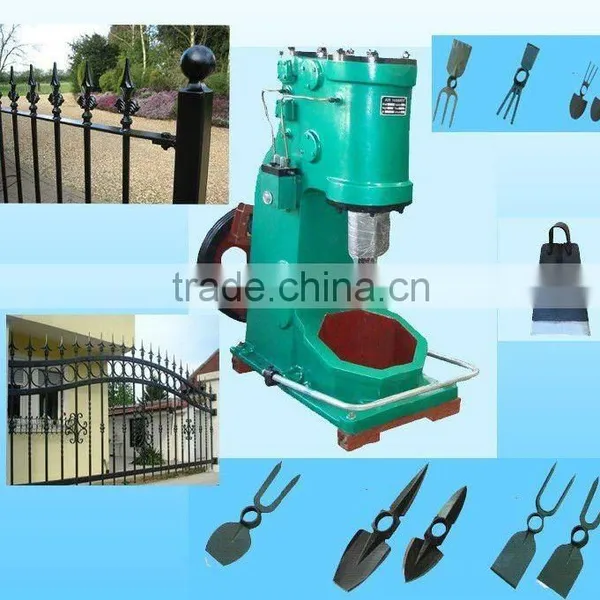

air hammer is economic and convenient for individual blacksmiths or other wrought iron forging work.it is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forging, welding, bending and twisting. It is also used for forge in bolster dies. it is also mainly used for artistic wrought iron, artistic forging, blacksmith, agriculture tools and small open die forging parts.
Item | Unit | MODEL NO. |
| |
Weight of falling parts | kg | 40 | ||
Maximum blow energy | J | 530 | ||
Distance from center of die to frame | mm | 235 | ||
Distance between top and bottom die | mm | 245 | ||
Number of blows per minute | min-1 | 245 | ||
Dimension of top to bottom | mm | 120*50 | ||
Diameter of the working cylinder | mm | 200 | ||
Diameter of the compressing cylinder | mm | 205 | ||
Travel distance of malleus | mm | 290 | ||
Travel distance of plunger | mm | 154 | ||
Forges | Round | mm | Φ68 | |
Square | mm | 52 | ||
Motor | Power | kw | 4.5 | |
Rotate speed | rpm | 1440 | ||
Outside Size | Length | mm | 1080 | |
Width | mm | 600 | ||
High | mm | 1389 | ||
Anvil block weight | kg | 400 | ||
Hammer weight | kg | ~1400 |
