Specifications
Widely applied Raymond MillEffective grinding
Widely application, fine product
Environmental friendly
ISO & CE

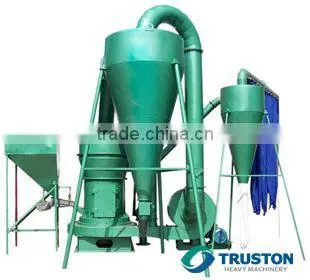

Widely Applied Raymond Mill

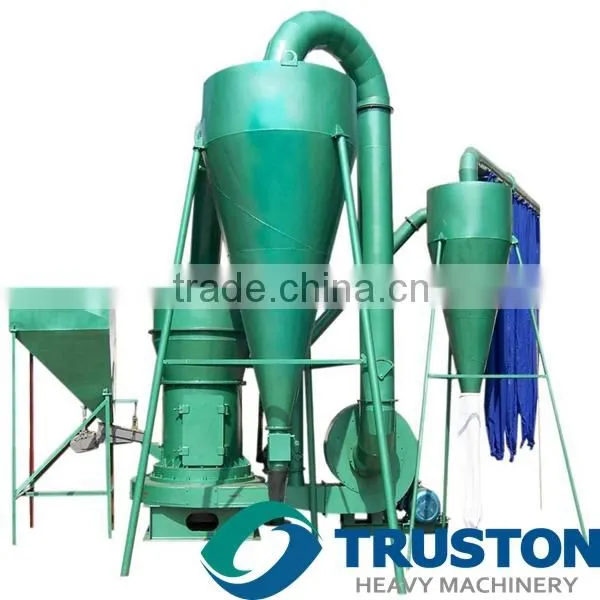

1. Raymond Mill
Pendulum type R pulverizers are used in pulverization-ductile ores,minerals,metal oxide,chemical synthetic materials and various kinds of non-inflammable and non-explosive materials, the hardness of which is below Mohs scale No.7 and the moisture of which is less than 6%.
To improve and enhance the performances of pendulum pulverizer, raise the fineness of finished products,reduce the ferrous content mixed during pulverizing,lower the labor strength and promote environmental protection, we are capacitated to supply the following products to supplement the pendulum pulverizer: Superfine separator, bag dust filter, iron removal device, quantitative, bagging weigher and bag-sewing conveyor. Newly turned outs as well are pendulum pulverizer with finished product fineness up to 600 mesh for which the separator has been improved, and the powerful pendulum pulverizer with annual output up to 6-25 tons per hour since the adoption of the pc control.
2. Prodesselow Sheet of the Pendulum-type, Raymond Mill
3. Specification of Raymond Mill
| Size | Roller | Ring | Max.granulation of feeding materials(mm) |
Fineness of product(mm) | Horsepower(kw) | ||||
| No. | Dia.(mm) | Height Dia.(mm) |
Inside Dia.(mm) |
Height Dia.(mm) |
Crusher | Pulverizer | |||
| 3R 2714 | 3 | 270 | 140 | 830 | 140 | 130 | 15 | 0.044~0.125 (325mesh-125mesh) |
≤22 |
| 4R 3216 | 4 | 320 | 160 | 970 | 160 | 210 | 20 | ≤37 | |
| 5R 4119 | 5 | 410 | 190 | 1270 | 190 | 210 | 20 | ≤75 | |
| 6R 5113 | 6 | 510 | 230 | 1670 | 230 | 350 | 60 | ≤185 | |
List Of Power Used On Attachments Of Pulverizers , Raymond Mill
| Model | Mill | Blower | Jaw Crusher | Separator | Bucket | Electro-magnetic Vibrating Feeder |
| 3R 2714 | 22 | 15 | 5.5 | 4 | 3 | 0.06 |
| 4R 3216 | 37 | 30 | 15 | 5.5 | 3 | 0.2 |
| 5R 4119 | 75 | 55 | 15 | 7.5 | 11 | 0.2 |
| 6R 5113 | 185 | 160 | 30 | 15 | 11 | 0.45 |
Standard Capacity
| Model | Mhos Scale Number | ||||
| >2~3 | >3~4 | >4~5 | >5~6 | >6~7 | |
| Capacity(t/h) | |||||
| 3R 2714 | 1.3~1.6 | 1~1.3 | 0.7~1 | 0.5~0.7 | 0.3~0.5 |
| 4R 3216 | 2.6~3.2 | 2~2.6 | 1.6~2 | 1.2~1.6 | 1~1.2 |
| 5R 4119 | 5~6.3 | 4~5 | 3.2~4 | 2.5~3.2 | 2~2.5 |
| 6R 5113 | 12.5~16 | 10~12.5 | 8~10 | 6.25~8 | 5~6.25 |
|
|
|
| |
About Shanghai ChuangShen
Shanghai Chuangshen Heavy Machinery Co., Ltd is a high-tech industrial enterprise which is professional in designing, manufacturing, marketing, assembling, installing and debugging various jaw crushers, impact crushers, cone crushers, VSI crushers, hammer crushers, roll crushers, screen-type crushers, grinding mill, complete crushing and screening plant and sand making plant. The first phase of factory area covers 33000 square meters, which includes heavy machinery machining workshop, heavy equipment assembling workshop and product display workshop. The second phase of 66000 square meters factory area will be built in Shanghai Free Trade Zone- Lingang heavy industrial area, where we commit to set up a world-class crushing and screening modern production base with leading development technology, diverse business patterns, novel and optimized service, and deeply combined information technology.
Our products are widely applied in mining, building materials, metallurgy, railway, highway, water conservancy, chemical, and coal industries, and are well distributed both in domestic and global markets.
We keep developing by taking the road of market-oriented, enterprise-led, university-industry cooperation, and gathering the best social resources. We not only have mining industry’s top talent work in our company, but also establish a long-term cooperation with Shanghai Institute for Advanced Research of Chinese Academy of Sciences to bring innovation and new change to traditional manufacturing industry.
We focus on bringing in advanced technology and experience from oversea countries, and have cooperated with top companies from German, America, Australia, etc. to keep the leading level of our products in mining industries.
Based on the core value of “ Honesty, create value for ourselves; Responsibility, create value for customers”, we earnestly performs the ISO 9001 Quality Management System, constantly innovates new products which have been authorized with new patents, and play an active role in industry development by creating a set of industrial and national standards. We have been rated as AAA Credit Qualification Enterprise, and are the council member of Shanghai Stone Industry Association-Sand Branch, and also the member of CHMIA (China Heavy Machinery Industry Association). Now oversea agents have been rapidly expanded.
