Specifications
raymond mill:1.small discharge size
2.low cost& save energy
3.high-usage& high efficiency
4.ISO,CE certificate

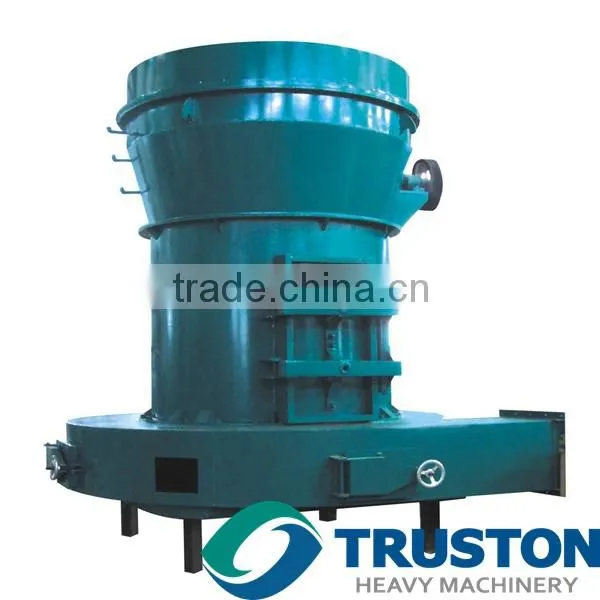

Raymond Mill/Pulverizer in Grinding equipment with Long Lifespan Wearable Part
1.Raymond Mill Specifications
| Size | Roller | Ring | Max.granulation of feeding materials(mm) |
Fineness of product(mm) | Horsepower(kw) | ||||
| No. | Dia.(mm) | Height Dia.(mm) |
Inside Dia.(mm) |
Height Dia.(mm) |
Crusher | Pulverizer | |||
| 3R 2714 | 3 | 270 | 140 | 830 | 140 | 130 | 15 | 0.044~0.125 (325mesh-125mesh) |
≤22 |
| 4R 3216 | 4 | 320 | 160 | 970 | 160 | 210 | 20 | ≤37 | |
| 5R 4119 | 5 | 410 | 190 | 1270 | 190 | 210 | 20 | ≤75 | |
| 6R 5113 | 6 | 510 | 230 | 1670 | 230 | 350 | 60 | ≤185 | |
Note:We could design the difference solution of mobile crusher as customer's requirements.
2.List Of Power Used On Attachments Of Pulverizers
| Model | Mill | Blower | Jaw Crusher | Separator | Bucket | Electro-magnetic Vibrating Feeder |
| 3R 2714 | 22 | 15 | 5.5 | 4 | 3 | 0.06 |
| 4R 3216 | 37 | 30 | 15 | 5.5 | 3 | 0.2 |
| 5R 4119 | 75 | 55 | 15 | 7.5 | 11 | 0.2 |
| 6R 5113 | 185 | 160 | 30 | 15 | 11 | 0.45 |
3.Standard Capacity
| Model | Mhos Scale Number | ||||
| >2~3 | >3~4 | >4~5 | >5~6 | >6~7 | |
| Capacity(t/h) | |||||
| 3R 2714 | 1.3~1.6 | 1~1.3 | 0.7~1 | 0.5~0.7 | 0.3~0.5 |
| 4R 3216 | 2.6~3.2 | 2~2.6 | 1.6~2 | 1.2~1.6 | 1~1.2 |
| 5R 4119 | 5~6.3 | 4~5 | 3.2~4 | 2.5~3.2 | 2~2.5 |
| 6R 5113 | 12.5~16 | 10~12.5 | 8~10 | 6.25~8 | 5~6.25 |
4.Raymond Mill Introduction
Raymond mill is suitable for grinding non-flammable and non-explosive materials with Moh's hardness not more than 7 grade and moisture less than 6%,such as non-plastic ores,minerals,metallic oxide,chemical composition,etc.In order to improve the performance of Raymond mill,enhance the fineness of final product, reduce the iron content during the process of grinding, lower labor intensity,and improve environmental conditions,the following equipments are optional to work together with Raymond mill:classifier,dust collector,iron separator,packing scale,and bag sewing conveyor.After improving the performance of classifier,Raymond mill can grind materials into 600mesh,and capacity can be increased to be 6-25t/h by PC control.
|
|
5.About us
Shanghai Chuangshen Heavy Machinery CO., Ltd is a high-tech industrial enterprise which is professional in designing, manufacturing, marketing, assembling, installing and debugging various jaw crushers, impact crushers, cone crushers, VSI crushers, hammer crushers, roll crushers, screen-type crushers, grinding mill, complete crushing and screening plant and sand making plant.
Our products are widely applied in mining, building materials, metallurgy, railway, highway, water conservancy chemical, and coal industries, and are well distributed both in domestic and global markets.
We keep developing by taking the road of market-oriented, enterprise-led, university-industry cooperation, and gathering the best social resources. We not only have mining industry's top talent work in our company, but also establishing a long-term cooperation with Shanghai Institute for Advanced Research of Chinese Academy of Sciences to bring innovation and new change to traditional manufacturing industry.
Based on the core value of "Honesty, create value for customers", we earnestly performs the ISO9001 Quality Management System, constantly innovates new products which have been authorized with new patents, and play an active role in industry development by creating a set of industrial and national standards. We have been rated as AAA Credit Qualification Enterprise, and are the council member of Shanghai Stone Industry Association-Sand Branch, and also the member of CHMIA(China Heavy Machinery Industry Association). Now oversea agents have been rapidly expanded.
|
|
|
|
|
|
|
6.Support
We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.
After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.
Technological support
Shanghai Chuangshen has been largely adopting new technologies, new techniques and high-tech equipments. And we also have strict and effective quality control system. We have obtained ISO9001:2000 quality system certificate.
We insist on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical.
