Specifications
Ring granulator crusherLarge capacity
Fine products
Screen impurities seperate
ISO & CE
Granulator Machine & Ring Granulator Crusher Manufacturers

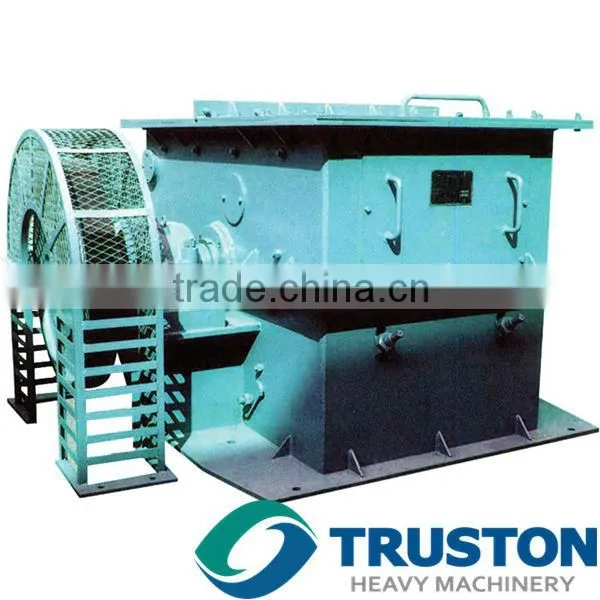

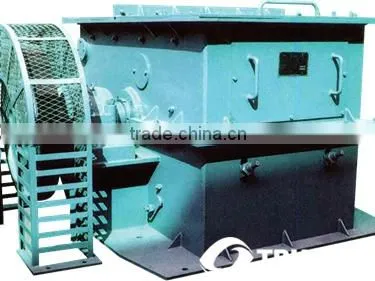

1. Ring-hammer Crushers, Ring Granulator
Ring-hammer Crushers is a punching rotor type crusing machine with ring-hammer on the rotor.First, the materials fed to the crusing space is crashed by the punchine force of the ring-hammer rotating at high speed.Meanwhile, the materials crushed gets kinetic energy from the ring-hammer and are punched forward to the crushing board. Then, they get punched the second time and fall to the sievre plate.The materials are cut,squeezed and crushed into pieces by the force of ring-hammer and their own rubbing,the stuff cannot be crushed will go to the metal collector and get cleared off periodiclly.
2. Application of Ring Granulator
Ring-hammer crusher is suitable for crushing various materials of brittleness such as coal,gangue,coke,slay,shale and loose lime stone etc.whose compressive resistance does not exceed 10Mpa and the surface moisture content shouldnot be greater than 8%
3. Specification of Ring Granulator
| Model |
Rotor Diameter × Rotor Length (mm) |
Eccentric Shaft Revolutions (r/min) |
Feed Opening Size (mm) |
Max Feeding Size(mm) |
Discharging Size (mm) |
Capacity (t/h) |
Power (kg) |
Weight(kg) |
Over Dimensions (mm) |
| CPH-42 | 400×200 | 960 | 310×310 | 200 | 3-30 | 8-12 | 5.5 | 800 | 1377.5×960×570 |
| CPH-44 | 400×400 | 970 | 310×440 | 200 | 3-30 | 16-25 | 11 | 1050 | 1664×960×570 |
| CPH-64 | 600×400 | 970 | 460×530 | 200 | 3-30 | 22-23 | 18.5 | 1430 | 1984×1410×800 |
| CPH-66 | 600×600 | 980 | 460×670 | 200 | 3-30 | 30-60 | 30 | 1770 | 2241×1410×820 |
| CPH-88 | 800×800 | 740 | 470×828 | 200 | 3-30 | 75-105 | 45 | 3600 | 2801.5×1720×1090 |
| CPH-1010 | 1000×1000 | 740 | 586×1040 | 300 | 3-30 | 200-245 | 110 | 6100 | 3554×2000×1340 |
| CPH-1016 | 1000×1600 | 740 | 586×1768 | 300 | 3-30 | 400-500 | 220 | 9740 | 5350×2800×1395 |
|
|
|
|
|
|
About Shanghai ChuangShen
Shanghai Chuangshen Heavy Machinery Co., Ltd is a high-tech industrial enterprise which is professional in designing, manufacturing, marketing, assembling, installing and debugging various jaw crushers, impact crushers, cone crushers, VSI crushers, hammer crushers, roll crushers, screen-type crushers, grinding mill, complete crushing and screening plant and sand making plant. The first phase of factory area covers 33000 square meters, which includes heavy machinery machining workshop, heavy equipment assembling workshop and product display workshop. The second phase of 66000 square meters factory area will be built in Shanghai Free Trade Zone- Lingang heavy industrial area, where we commit to set up a world-class crushing and screening modern production base with leading development technology, diverse business patterns, novel and optimized service, and deeply combined information technology.
Our products are widely applied in mining, building materials, metallurgy, railway, highway, water conservancy, chemical, and coal industries, and are well distributed both in domestic and global markets.
We keep developing by taking the road of market-oriented, enterprise-led, university-industry cooperation, and gathering the best social resources. We not only have mining industry’s top talent work in our company, but also establish a long-term cooperation with Shanghai Institute for Advanced Research of Chinese Academy of Sciences to bring innovation and new change to traditional manufacturing industry.
We focus on bringing in advanced technology and experience from oversea countries, and have cooperated with top companies from German, America, Australia, etc. to keep the leading level of our products in mining industries.
Based on the core value of “ Honesty, create value for ourselves; Responsibility, create value for customers”, we earnestly performs the ISO 9001 Quality Management System, constantly innovates new products which have been authorized with new patents, and play an active role in industry development by creating a set of industrial and national standards. We have been rated as AAA Credit Qualification Enterprise, and are the council member of Shanghai Stone Industry Association-Sand Branch, and also the member of CHMIA (China Heavy Machinery Industry Association). Now oversea agents have been rapidly expanded.
