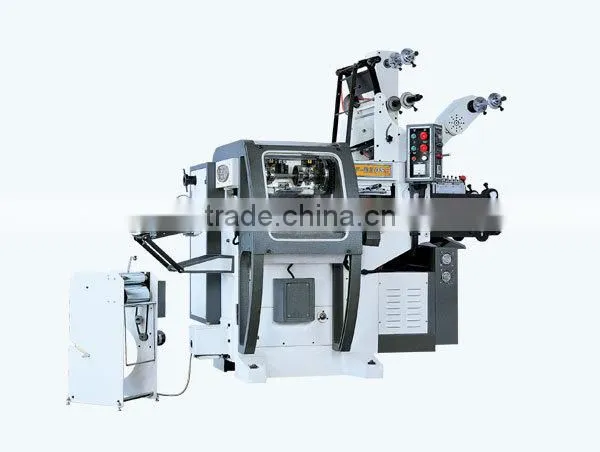

Roll to Roll Sticker Label Printing Machine

Roll to Roll Sticker Label Printing Machine photo-1
US$ 25,000 - 70,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Flatbed Printer
Place of Origin Guangdong, China
Brand Name hongfat
Model Number HFT-3045SCTV
Usage Card Printer, Label Printer, Paper Printer, Other, Card Printer, Label Printer, Paper Printer, adhesive sticker paper printer
Automatic Grade Automatic
Voltage 380v
Gross Power 3.1kw
Dimensions(L*W*H) 3mx2mx2m
Weight 3500kg
Certification ce
After-sales Service Provided Engineers available to service machinery overseas


Relief label printing machine; adhesive label sticker printing machine; adhesive sticker label printing machine; sticker label printing machine; sticker paper printing machine; flabed label printing machine; letterpress label printing machine; flatbed letterpress label printing machine; professional sticker label printer; adhesive sticker label printer; automatic sticker label printer



1.Fuction and Main Technical Parameter



            Flatbed letterpress label printing machine, suitable to print sticker paper label, PVC label, adhesive paper label.


SPECIFICATION OF HFT-3045
  HF-3045 Notes
Chase Dimension(mm) 300X450
Max.Print Aear (mm 300x300
2 Color 290x218
3 Color 290x140
4 Color 290x103
5 Color 290x80
6 Color 290x64
Max.Papcr width(mm) 310
Max.papcr Forward(mm) 299.99
Max.Hot-Stamping Area(mm) 300x300
Max.Die-Cutting Dimension (mm) 300x300
Printing speed(r.p.m) 10-150 can increases speed continuely
Machine size (L x W x H) (mm) 3000x2000x2000
Machine weight(kgs) 3500
Power & Motor (KW) 3.1
Main motor 1 Manufacturer: German  TURCK need special order
Air Suction Motor 1

STANDARD ACCESSORIES
groupware for 1-color printing 1set What is call groupware for printing? they are ink roller, ink holder,ink bridge, printing tray, printing plate
groupware for 2-color printing 1set
groupware for 3-color printing 1set Normal customer take groupware of 2-color, 3-color and 4 color we can give any of two sets for free. More than 2 sets need pay
groupware for 4-color printing 1set   EPOXY RESIN roller is not suitable with UV ink. We have special environment protection roller for UV ink
groupware for 5-color printing 1set
groupware for 6-color printing 1set
Unwinder machine (Deliver paper) 1set
Rewinder machine 1set
Sheeter(Cutter) 1set
Collate edition machine 1set
Up and Down die-cutting frame 1set Special die-cutting station both suitable to all kinds of die-cutting station. For example both suitable to Russia 12mm and Asia 8mm die-cutting knife
Lamination system 1set can do lamination with basic paper and no-basic paper Need special order
Special lamination system for back printing 1set   Need special order
UV-dryer 1set 1 UV lamp: 800 Hours         Function: Automatic up and down. Automatic temperature control cover special environment protection roller for UV ink
Standard tool: 1set
Computer draw-paper system 1set
Hot-stamping system 1set

OPTIONAL ACCESSORIES
All kinds of punch mould 1set
Number paper machine 1set Digital number Automatic digital counting system

SUITABLE MATERIAL
PVC, PET, PP YES If there is some new printing material which is hard to absorb ink, please take you material to make sure with Mr Max also can print polyethylene, acetic acid transparent film, acetic acid spun silk, POF, leather brand of jean trousers,plastic board. Kindly check the sample which sent to you
all kinds of self-adhesive paper, gloss, semi-gloss YES
Transparency Film YES
Textile Ribbon YES
Al-foil YES

OTHERS QUESTION
The accurated of color registration is maintained within ±0.08
safety door 1set fully protect the safety of operator, can meet the requirement of customer of USA, Hong Kong,Russia,Canada and Australia.
Patent lamination system 1set Patent lamination system: It can guarantee lamination quality is the same, no matter you are using expensive Avery Fassion lamination film or cheap poor lamination film Lamination quality will not drop down even if the lamination film is kept for long time or poor tension
Magnetic engaged device 1set
Automatic feeding paper coordinates the printing speed yes
Machine body made by cold Iron at one time. Whole body no welding Machine can work steady no matter hot weather, cold weather, dry weather or wet weather. The machine get good reputation because of working steady under Russia cold weather, Bangladeshi hot and wet weather Guarantee 25 years
automatically stop yes
Die cut seat can be regulated left and right, up and down, membrane angle yes
Digital counter (programmer) yes
Computer auto controller yes
Over printing monitor 1set Manufacturer: America banner Guarantee 3 years
Servo motor digital control system yes Manufacturer: German Rexroth Guarantee 3 years
Electronic circuit(Japan PLC) Yes Manufacturer: Japan Panasonic Guarantee 3 years
Centralized fueling system yes
Inverter system yes Manufacturer: French Schneider Electric Guarantee 3 years
2nd or 3rd pass printing yes can do 2nd and 3rd time overprinting Guarantee 3 years

RFID label production system Need special order, need adjust on this machine additional charge

HF-3045 series:The electronic parts like switchi board, panel,cable and so on must reach CE level
HF-3045 series: The main mechnical parts must be made by CNC
HF-3045 series: The machine's main body is made by Iron at one time, with the weight nearly 3500 KGS
Training: The seller training the buyer in the seller's factory, the training cost is free
Whole machine guarantee: 3 years
Delivery time: Within 45 days after deposit
Payment terms: LC OR TT
Installing: can come to customer's company to install



2. What is the main advantage of the machine?



Printing with 6 color. Also can hot stamping.



3. Why choose Hongfat?



The best choice for turn on key offer.



3.1Hongfat can really help you to set up the machine from zero, no matter

machine production, installing, training for operator, maintenance, raw

material supplier identify and business convoy.



3.2 He can lend you English-speaking operator.



3.3 Some machine is 3 years’ guarantee.



3.4 English-speaking engineers have the experiences of serving more

than 20 countries.



They are many company which is much bigger than Hongfat, they are

many company who can make good machine as Hongfat. Especially,

when we talk about machine, we like to say German machine is good.

While after they get your money, few of them can really be patience

to set up your business from Zero. Especially when your request seems

out of their duty,Especially the job is beyond the duty of machine seller.



If you have good experience already and just want good machines. Hongfat

is one of your choice. If you want to set up the coating factory from

Zero, Hongfat is your only choice.



4. Machine guarantee?



2 years

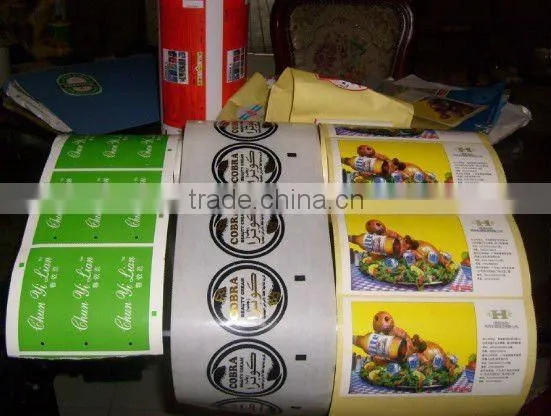

5. Sample produced by the machine



roll to roll sticker label printing machine





6.Factory view and export loading



roll to roll sticker label printing machine



7.Fair in overseas



roll to roll sticker label printing machine
