Sale worldwide single sphere rubber expansion joints
Features:
1,Small volume, light weight, good flexibility, easy installation and maintenance
2,When installation can produce transverse and axial, angular displacement, not affected by pipeline impassability heart, thread unparallel limit
3,Work can reduce structure transfer noise, vibration absorbing ability
4,We developed the company in seamless pressure rubber joint, in high temperature resistance, acid and alkali resistant, oil resistant pipe more effectively prevent the corrosive medium to rubber joint wall erosion and improve the service life
Production process:
this product use the high air tightness of rubber elastic medium resistance of weathering and radiation resistance, high strength and a little cold and heat stability of polyester cord skew and the composite by high pressure, high temperature mold vulcanization and become.
Application medium:
Air,compressed air,water,sea water,hot water,oil,acid,alkali,etc.
Installation instructions:
rubber joint pipeline construction, must let it in a state of nature, not the human when installing the product produce human deformation when pipeline medium for acid and alkali resistant oil temperature and other special material should choose higher than pipe work pressure a gear of the joint
Technical conditions
| item | type |
JGD-1 |
JGD-2 |
JGD-3 |
working pressureMPa(kgf/cm2 ) |
1.010) |
1.6(16) |
2.5(25) |
|
burst pressureMPa(kgf/cm2 ) |
2.0(20) |
3.0(30) |
4.5(45) |
|
vacuumKPa(mm/Hg) |
53.3(400) |
86.7(650) |
100(750) |
|
applicable temperature`C |
-15`C~ 15`C under special conditions-30~+250 |
|||
applicable media |
Air,compressed air,water ,sea water ,hot water,oil,acid ,alkali,etc. |
|||
main connecting dimension
| nominal diameter |
length mm |
flange thickness |
quality of bolt n |
bolt hole diameter |
diameter of the central ring of the bolt |
axial displacement |
lateral displacement |
deflection angle |
||
mm |
inch |
extension |
compression |
|||||||
32 |
1.25 |
95 |
16 |
4 |
18 |
100 |
6 |
9 |
9 |
15° |
40 |
1.5 |
95 |
18 |
4 |
18 |
110 |
6 |
10 |
9 |
15° |
50 |
2 |
105 |
18 |
4 |
18 |
125 |
7 |
10 |
10 |
15° |
65 |
2.5 |
115 |
20 |
4 |
18 |
145 |
7 |
13 |
11 |
15° |
80 |
3 |
135 |
20 |
4 |
18 |
160 |
8 |
15 |
12 |
15° |
100 |
4 |
150 |
22 |
8 |
18 |
180 |
10 |
19 |
13 |
15° |
125 |
5 |
165 |
24 |
8 |
18 |
210 |
12 |
19 |
13 |
15° |
150 |
6 |
180 |
24 |
8 |
23 |
240 |
12 |
20 |
14 |
15° |
200 |
8 |
210 |
24 |
8 |
23 |
295 |
16 |
25 |
22 |
15° |
250 |
10 |
230 |
26 |
12 |
23 |
350 |
16 |
25 |
22 |
15° |
300 |
12 |
245 |
28 |
12 |
23 |
400 |
16 |
25 |
22 |
15° |
350 |
14 |
255 |
28 |
16 |
23 |
460 |
16 |
25 |
22 |
15° |
400 |
16 |
255 |
30 |
16 |
25 |
515 |
16 |
25 |
22 |
15° |
450 |
18 |
255 |
30 |
20 |
25 |
565 |
16 |
25 |
22 |
15° |
500 |
20 |
255 |
32 |
20 |
25 |
620 |
16 |
25 |
22 |
15° |

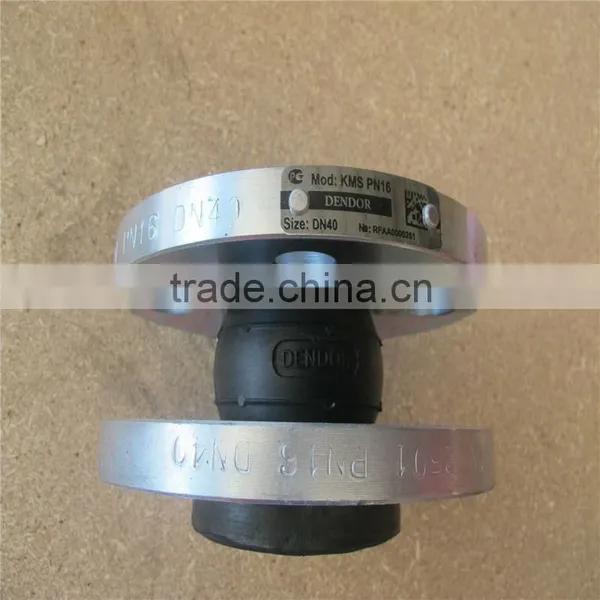

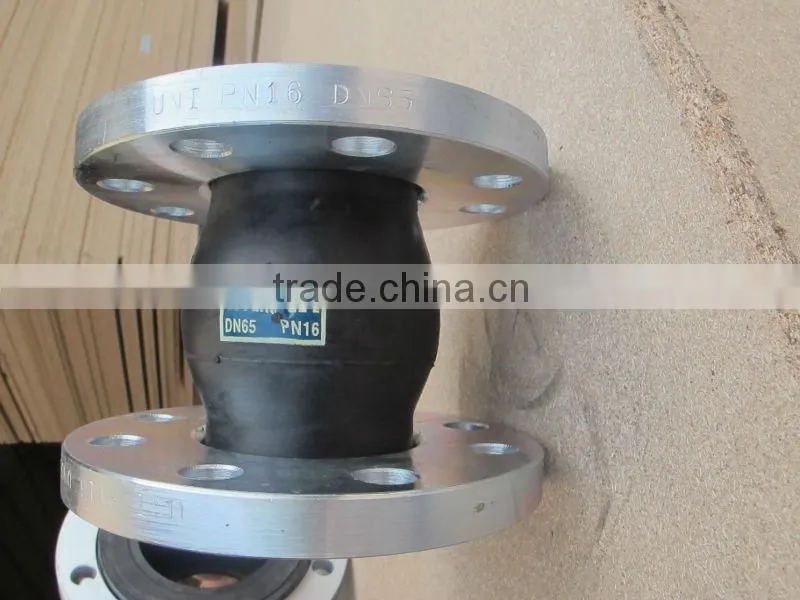

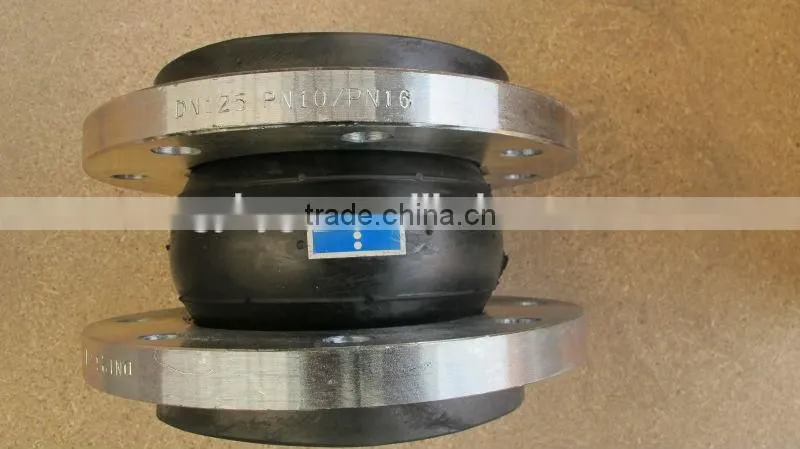

Details photos show of rubber expansion joint
Our products have been exported to many countries such as England ,France,America,Australia,Singapore and India etc.
and won a high admiration and is widely trusted at home and abroad.
So Product quality is guaranteed.
Gongyi Huayuan all the cargoes under inspection before the shipment.
Rubber expansion joint is assembled with rubber hose and retaining ring
flanges, and the rubber hose could be easiely damaged in delivery.
So Huayuan packs each flexible rubber joint with a separate carton case to prevent the crash of the flanges and rubber hoses, each case painted the name of rubber joint and other details. The carton cases then be filled to plywood cases to ship. Inside of each plywood case, Huayuan always uses moistureproof material to keep the products.
There are many kinds of transport , depending on your situation ,you can choose the best transport . We will send the products according to your requirements.
Promise and service from us
1.We offer good quality products in competitive price.
2.We have short delivery time .
3.Shipped the goods on time.
4.Meet your special requirements.
5.If you have any questions ,you could contact us.We will try our best to solve your question.
About Samples:
1,Nomally we can make a sample to you for free,but the postage is paid by client.
2,If the sample is very special,we will charge you sample fee,which can be refunded when your order is confirmed.(order quantity need to be reached our MOQ).
3,Sampling time: about 7-10 days as usual.
Gongyi Huayuan Water Supply Equirement Co.,Ltd. Profile
Our company is specialized in water supply and drainage equipment,pipe and parts.Through 20years production history,it is solid in strength and good in quality.Employees are skilled and experienced.It cooperates with design institues and research institutions jointly for research and development.The design of product is unique and the structure is rational and updated.
At present,our products have over 30 types such as JGD flexible synthetic single sphere and double sphere rubber expansion joint,thread joint, unequal diameter,DN15-DN3000 and so on.Completed types,high quality and lower price make its products ideal for water supply and drainage,heating pipe
and building field.
,
Own factory production, quality assurance
Our tenet :Your trust is our best honor and we will manufacture high-quality products for you.
FAQ:
Q : Can you make the product as per client's requirement?
A: Yes, can make it with your exact requirement.
Q: What is your payment terms?
A: T/T(30% as despot,the rest 70% will be paid before delivery) , L/C at sight
Q: can i visit your factory before the oreder?
A: Yes, welcome to our factory to check the quality.
Q: Where is your nearest loading port ?
A: Shanghai, Qingdao or Tianjin ,China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned
or according to consumer's requests.
Q:Do you accepted small quantity order?
A: Of course we do.
Q:Can we choose different material?
A: Yes ,the material can be chose according to your requirement.
Q:And What's your shipment and delivery time?
A:By sea or air.Normally 7~14 Days for delivery ,according to your order quantity.
Q:And what's your packing?
A: carton cases inside ,export wooden cases outside
